基本信息。
| 认证： | CE，ROHS，FCC |
| 颜色： | 白色 |
| 电压： | 12V |
| LED类型： | 晶元SMD5050 |
| 照明角度： | 120度 |
| 夜光： | 1200lm |
| CRI（镭））： | 75 |
| 灯泡功率（W）： | 14.4W / M |
| 盖： | 明确 |
| 出口地区： | 全球 |
附加信息。
| 商标： | QMD |
| 起源： | 深圳，中国 |
| 生产能力： | 2000PCS /周 |
产品描述
技术指标
1.60PCS LED /米SMD5050白色PCB板
2，高流明：1200lm /米
3，高导热铝基PCB板
4.透明PC
LED硬灯条
1. LED类型：SMD5050，DC12V
2.大小：1000mmx20mmx15mm
3. LED数量：60LEDs /米。
4.功耗：14.4W /米，发光角度：120℃。
每段5.1发光二极管
6. PCB颜色：白色
7. Chooseable LED颜色：RGB，白，暖白，红，绿，蓝，黄
8，工作温度：-20〜+ 80度
9.使用寿命：50，至少000小时
10.认证：CE，RoHS指令
11. U型铝型材60LED /米SMD5630 LED硬灯条
关于LED硬灯条系列
规范：
1.独特的内部连接的设计：2PCS可以完美connetcted不跨空间
2.优雅的期待：铝合金后盖，透明PMMA镜片。 9％的光transminssion。
3.易于安装：由固定夹固定，连接线长距离连接
4.环境友好：无铅，通过CE / RoHS认证
5.安全应用：低电压DC12V，安全和稳定
6.不同的连接是可用的。
产品特点
1.易于安装，是用螺丝或夹子固定。 防尘，防水是采用IP65或IP68作为您的选项。
2，高亮度，以显示您的产品，装点您的陈列室或你想要显示的任何地方。
3，无紫外线，红外线环保，高量的铝不错的散热效果。
4，更节能，发光效率比宇宙光高75％。
5，更长的寿命与达到50.000小时。
6，享受我们的3年质保。
应用领域
1.建筑装饰照明，为家庭，宾馆，商场，酒吧等
2.装饰照明的水下工程。
使用的礼堂走道，雨棚，楼梯重点照明，游乐园3.照明灯具
戏院3.紧急出口路径照明，电影院，列车引导人们走动安全。
4.汽车内部和外部灯光
使用的商店，餐馆，酒吧5.通道信照明
6.游乐园和剧院照明
7.拱门，檐篷和桥梁边缘照明
8.家具装饰照明
9.湾照明
使用注意事项
1，为了防止水，油，或其它iquid到刚性光条
2，可以肯定的是，参数中下/刚性杆工作上面。
3，可以肯定的线连接正确。
4，不要加热刚性杆或扔在火
5，别忘了防静电一次安装或使用，不被容许与锋利的工具触碰光源。
Basic Info.
| Certification: | CE, RoHS, FCC |
| Color: | White |
| Voltage: | 12V |
| LED Type: | Epistar SMD5050 |
| Lighting Angle: | 120 Degrees |
| Luminous: | 1200lm |
| CRI (Ra) ) : | 75 |
| Lamp Power (W) : | 14.4W/ M |
| Cover: | Clear |
| Export Markets: | Global |
Additional Info.
| Trademark: | QMD |
| Origin: | Shenzhen, China |
| Production Capacity: | 2000PCS/ Week |
Product Description
Specifications
1.60PCS LED/ m SMD5050 white PCB board
2. High Lumen: 1200lm/ m
3. High thermal conductivity aluminum PCB board
4. Transparent PC

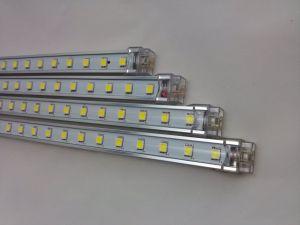

LED rigid strip
1. LED type: SMD5050, DC12V
2. Size: 1000mmx20mmx15mm
3. LED quantity: 60LEDs/ m.
4. Power consumption: 14.4W/ m, light angle: 120degree.
5.1 LEDs per segment
6. PCB color: White
7. Chooseable LED color: RGB, White, Warm White, Red, Green, Blue, Yellow
8. Operating temperature: -20~+80 degree
9. Life span: 50, 000 hours at least
10. Certificate: CE, RoHS
11. U-shape aluminum profile 60LED/ m SMD5630 LED rigid strip
About LED Rigid Strip Light Series
Specification:
1. Unique inter-connectable design: 2PCS can be connetcted perfectly without inter space
2. Elegant looking: Aluminum back cover and transparent PMMA lens. 9% light transminssion.
3. Easy Installation: Fixed by mounting clips, connect wire for long distance connect
4. Friendly environment: Pb free, with CE/ RoHS certificate
5. Safe Application: Low voltage DC12V, safety and stable
6. Different connections are available.
Product Features
1. Easy install, to be with screw or clip fixture. Dust-proof, water-proof to be with IP65 or IP68 as your option.
2, High brightness to show your products, decorate your showroom or any place you want to show.
3, No UV, IR eco-friendly, high quantity aluminum with nice heat dissipation.
4, More energy saving, luminous efficiency is 75% higher than universe light.
5, Longer lifespan with reaching 50.000hours.
6, Enjoy our 3 years warranty.
Application area
1. Architectural decoration lighting for homes, hotels, marketplaces, bars etc
2. Decoration lighting for under water project.
3. Illumination lighting using for auditorium walkway, canopy, stairway accent lighting, amusement park
3. Emergency exit path lighting for theatres, cinemas, trains to guide people move around safely.
4. Car interior and exterior lights
5. Channel letter lighting using for stores, restaurants, bars
6. Amusement park & theater lighting
7. Archway, canopy and bridge edge lighting
8. Furniture Decoration Lighting
9. Cove Lighting
Usage Caution
1, To prevent the water, oil, or other iquid into the rigid light bar
2, To be sure that the rigid bar work under/ within the parameter as above.
3, To be sure the wire connection is correct.
4, Do not heat the rigid bar or throw into the fire
5, Don't forget anti-static once installation or using, don't be allowed to touch the light source with the sharp tool.
