RGB waterproof-Amplifier
RGB防水放大器
快速详细信息
- 原产地：广东省，中国（大陆）
- 品牌名称：FYF
- 型号：FYF-V2A2-Z01
- 电压：12V
包装及送货
| 包装细节： | 正常包装。 |
|---|---|
| 交货详细信息： | 7个工作日 |
技术指标
RGB防水放大器电压：12V
连接方式：共阳
最大负载电流：4A（每个通道）
RGB防水放大器
RGB防水放大器调整到我们公司所有电压控制型的LED控制器，它具有防水功能，RGB可以接受PWM（脉宽调制），每一个RGB放大器可以加入，LED的连接数量将最多不超过 两次，无数个RGB放大器可以连接在理论上。
主要描述：
工作温度：-20-60°C电源电压：12V
外形尺寸：L95ΧW52ΧH30mm连接方式：共阳
最大负载电流：4A（每个通道）输出：三CMOS漏极开路输出
功能：继续开展信号放大的三个通道G，R，B，并提高带载能力强，她的系统功能
接线图：
|
注意事项：
本产品的一电源电压为DC12V，其他高电压很可能会毁了它。
2.不要直接在短路的情况下连接两个电线。
按照颜色连接绘图提供3.引线应正确连接。
4.保证本产品为一年，在此期间，我们保证或免费修理，但不包括人工销毁器或超负荷工作。
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: FYF
- Model Number: FYF-V2A2-Z01
- Voltage: 12V
Packaging & Delivery
| Packaging Details: | normal packing. |
|---|---|
| Delivery Detail: | 7 working days |
Specifications
RGB waterproof-AmplifierVoltage: 12V
connection mode: common anode
maximum load current: 4A (each channel)

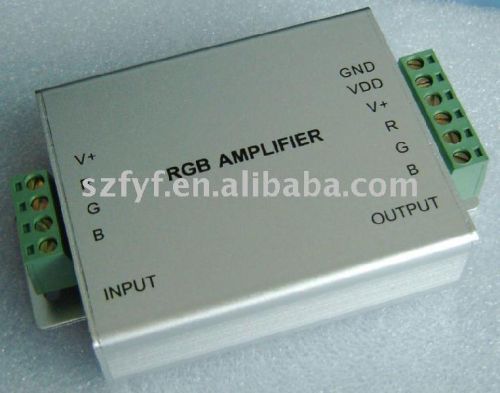

RGB waterproof-Amplifier
RGB waterproof-Amplifier adjust to all the voltage-controlled LED controller of our company, it has waterproof function, RGB could accept PWM (Pulse Width Module) , Each one RGB amplifier can be added, the connecting number of LED will up to more than twice, countless RGB amplifiers could be connected in theory.
Main discription:
working temperature: -20-60 °C supply voltage: 12V
external dimensions: L95ΧW52ΧH30mm connection mode: common anode
maximum load current: 4A (each channel) output: three-CMOS open-drain output
Function: Continue to carry out signal amplification for three channels of G, R, B, and improve she system function with load capacity
Wiring diagram:
|
Attentions:
1. supply voltage of this product is DC12V, Other high voltage would most probably destroy it.
2. Never connect two wires directly in case of short circuit.
3. Lead wire should be connected correctly according to colors that connect drawing offers.
4. Warranty of this product is one year, in this period we guarantee or repairing with no charge, but exclude the artificial damager or overload working.
