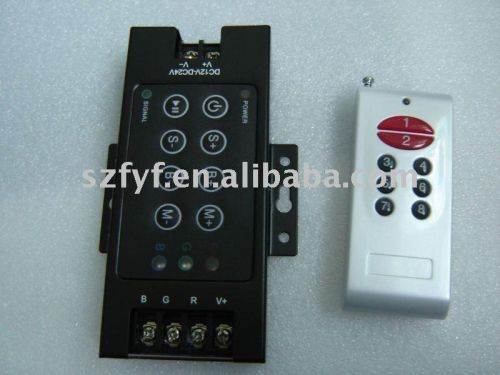

8 keys remote controller
8键遥控器
快速详细信息
- 原产地：广东省，中国（大陆）
- 品牌名称：FYF
- 型号：FYF-8RFV2A4-Z01
- 总重量：300g
包装及送货
| 包装细节： | 正常包装 |
|---|---|
| 交货详细信息： | 7个工作日 |
技术指标
8键遥控器电压：DC12〜24V
最大输出电流：10A每种颜色
最大输出功率：360W
快速delevery
- 8键遥控器
- 性能参数
工作温度：-20-60°C电源电压：DC12-24V
产品尺寸：L101 * W65 * H24毫米包装尺寸：L153 * W79 * H55mm
净重量：220g净重：300克
遥控距离：）50M输出：三个CMOS漏极开路输出
最大输出电流：10A每种颜色最大输出功率：360W
- 控制方法
采用薄膜按键和无线控制方法，如下面的每个按钮的功能：
（开/关）：你能/关控制器打开在任何时间;
（暂停）：播放/暂停按钮，很方便给你看的带领静态effection;
S+: 变速的步骤中添加1每一个紧迫的;
S-: 由每个按压变速减法1的步骤;
B+: 亮度控制按钮，亮度的步骤1中添加由每个紧迫;
B-: 亮度减1各迫切的步骤;
M+: 没有了。 图案加1每一个紧迫的; （请参考以下表格）
M-: 没有了。 模式1减去每一个紧迫的;
风格变化表如下：
没有。 | 模式 | 备注 | 没有。 | 模式 | 备注 |
1 | 静红 |
亮度可调，速度是不可调节。 | 14 | 绿色频闪 |
速度和 亮度 可调 |
2 | 静态绿色 | 15 | 蓝频闪 | ||
3 | 静态蓝色 | 16 | 黄频闪 | ||
4 | 静态黄色 | 17 | 紫频闪 | ||
5 | 静态紫色 | 18 | 青色频闪 | ||
6 | 静态青色 | 19 | 白频闪 | ||
7 | 静态白色 | 20 | R / B交叉淡入淡出 |
速度是可调的。 亮度是不可调节 | |
8 | 三色跳变 | 速度和亮度是可调 | 21 | B / G交叉淡入淡出 | |
9 | 七星彩跳变 | 22 | G / R交叉淡入淡出 | ||
10 | 三色渐变 | 速度可调 亮度是不可调节 | 23 | 淡出和淡入全部 | |
11 | 七星彩渐变 | 24 | 随机闪烁 |
| |
12 | 三色运行 | 速度和亮度 可调 | 25 | 汽车 | 1~24 |
13 | 红色频闪 |
|
|
|
- 接线图及说明
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: FYF
- Model Number: FYF-8RFV2A4-Z01
- Gross weight: 300g
Packaging & Delivery
| Packaging Details: | normal packing |
|---|---|
| Delivery Detail: | 7 working days |
Specifications
8 keys remote controllerVoltage: DC12~24V
Max output current: 10A each color
Max Output power: 360W
Fast delevery
- 8 keys remote controller
- Performance Parameters
Working temperature: -20-60 °C Supply voltage: DC12-24V
Product size: L101*W65*H24 mm Package size: L153*W79*H55mm
Net weight: 220g Gross weight: 300g
Remote distance: ) 50M Output: Three CMOS drain-open output
Max output current: 10A each color Max Output power: 360W
- Control Method
Adopt film button and wireless control method, function of each button as below:
(on/ off) : you could turn on/ off controller at any time;
(pause) : Play/ pause button, it is convenient for you to see the static effection of led;
S+: The step of the speed change add 1 by each pressing;
S-: The step of the speed change subtract 1 by each pressing;
B+: A brightness control button, the step of the brightness add 1 by each pressing;
B-: The step of the brightness subtract 1 by each pressing;
M+: The NO. of patterns add 1 by each pressing; (refer to the following form)
M-: The NO. of patterns subtract 1 by each pressing;
Style changing table as below:
No. | Patterns | Remarks | No. | Patterns | Remarks |
1 | Static red |
Brightness is adjustable, Speed is unadjustable. | 14 | Green stroboflash |
Speed and Brightness are adjustable |
2 | Static green | 15 | Blue stroboflash | ||
3 | Static blue | 16 | Yellow stroboflash | ||
4 | Static yellow | 17 | Purple stroboflash | ||
5 | Static purple | 18 | Cyan stroboflash | ||
6 | Static cyan | 19 | White stroboflash | ||
7 | Static white | 20 | R/ B crossfade |
Speed is adjustable. brightness is unadjustable | |
8 | Three-color jumpy changing | Speed and brightness are adjustable | 21 | B/ G crossfade | |
9 | Seven-color jumpy changing | 22 | G/ R crossfade | ||
10 | Three-color gradual changing | Speed is adjustable Brightness is unadjustable | 23 | fadeout and fadein in whole | |
11 | Seven-color gradual changing | 24 | Random flashing |
| |
12 | Three-color running | Speed and Brightness are adjustable | 25 | AUTO | 1~24 |
13 | Red stroboflash |
|
|
|
- wiring diagram and description
