2012 new design high power 24w led light bar
2012全新设计的高功率24瓦特led灯条
快速详细信息
- 光源：LED
- 项目类型：灯条
- LED光源：5630SMD
- 类型：LED酒吧灯
- 输入电压（V）：DC12V / DC24V
- 灯泡功率：24瓦特
- 灯具光通量（lm）：1680lm
- CRI（镭））：80
- 色温（CCT）：3000-3500K
- 工作温度（℃）：-20 - 50
- 工作寿命（小时）：50000
- 灯体材质：铝合金
- 认证：CE，ROHS，UL
- 发光颜色：白色
- 原产地：广东省，中国（大陆）
- 品牌名称：金茁安
- 型号：KJ-TLT560-A01
- LED类型：SMD5630
- LED数量：60PCS
- 豆：120°
包装及送货
| 交货详细信息： | 7天 |
|---|
技术指标
经济型大功率LED灯条5630SMD1.电压：DC24V，24W
2.光通量：1960lm
3.高品质，生态frien
2012全新设计的高功率24瓦特led灯条使用DC12V / DC24V
特征
- 光源：5630 SMD LED灯
- Avalaible颜色：白，红，黄，蓝，绿，暖白
- 超级五千零五十○分之三千零十四/ 3528SMD LED灯珠，亮度高，质量好
- 低电流，低功耗，节约能源
- 保护范围：不防水或防水IP65。
- 可以防水硅盖。
- 安装方便，免维护。
- 它可能每个单元之间被削减自由，因为你需要。
- 提供OEM / ODM服务。
应用范围：
- 建筑装饰照明，为家庭，宾馆，商场，酒吧等
- 使用的礼堂，走道，雨棚，楼梯口音lighitng，游乐园llumination照明
- 戏院紧急出口通道照明，电影院，列车引导人们走动安全。
- 汽车内部和外部灯光
- 使用的商店，餐馆，酒吧通道信照明
详细信息：
| 型号。： | KJ-TLT560-A01 | |||
| 输入电压 | DC12V / DC24V | |||
| 功率 | 24w | |||
| 色温 | 3000-3500K | |||
| 流明 | 1680lm | |||
| 材料 | 铝管+ PC罩 | |||
| 工作湿度 | ( 95% | |||
| 工作温度 | -20 ~ +45°C | |||
| LED数量 | 60PCS | |||
| LED光源 | 5630 | |||
工作生涯 | ）50000小时 | |||
| 尺寸 | 1100 * 13.5 * 8MM | |||
| 绿豆角 | 120° | |||
| 重量 | 215g | |||
Quick Details
- Light Source: LED
- Item Type: Light Strips
- LED Light Source: 5630SMD
- Type: LED Bar Lights
- Input Voltage (V) : DC12V/ DC24V
- Lamp Power: 24w
- Lamp Luminous Flux (lm) : 1680lm
- CRI (Ra) ) : 80
- Color Temperature (CCT) : 3000-3500K
- Working Temperature (℃) : -20 - 50
- Working Lifetime (Hour) : 50000
- Lamp Body Material: Aluminum Alloy
- Certification: CE, RoHS, UL
- Emitting Color: White
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: KINGJO
- Model Number: KJ-TLT560-A01
- LED type: SMD5630
- LED QTY: 60pcs
- Bean: 120°
Packaging & Delivery
| Delivery Detail: | 7days |
|---|
Specifications
Cheap High Power LED Light Bar 5630SMD1. Voltage: DC24V, 24W
2. Luminous Flux: 1960lm
3. High quality, Eco-frien

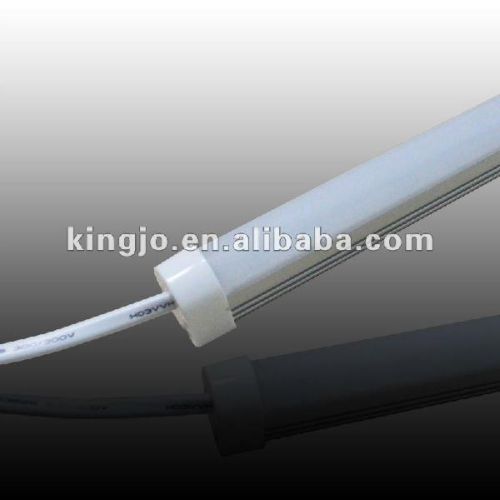

2012 new design high power 24w led light bar with DC12V/ DC24V
Features
- Light source: 5630 SMD LED lamp
- Avalaible color: white, red, yellow, blue, green, warm white
- Super 3014/5050/3528SMD led beads, high brightness and good quality
- low current, low power to save energy
- Protect range: non-waterproof or waterproof IP65.
- Can be waterproof with silicon cover.
- easy installation, Maintenance free.
- It could be cut between each unit freely as you need.
- OEM / ODM service provided.
Applications:
- Architectural decoration lighting for homes, hotels, marketplaces, bars etc
- llumination lighting using for auditorium, walkway, canopy, stairway accent lighitng, amusement parks
- Emergency exit path lighting for theatres, cinemas, trains to guide people move around safely.
- Car interior and exterior lights
- Channel letter lighting using for stores, restaurants, bars
detail information:
| Model No.: | KJ-TLT560-A01 | |||
| input voltage | DC12V/ DC24V | |||
| power | 24w | |||
| color temperature | 3000-3500K | |||
| lumens | 1680lm | |||
| material | Aluminum Tube+PC Cover | |||
| working humidity | ( 95% | |||
| working temperature | -20 ~ +45°C | |||
| LED QTY | 60pcs | |||
| LED source | 5630 | |||
working life | ) 50000 Hours | |||
| size | 1100*13.5*8MM | |||
| bean angle | 120° | |||
| weight | 215g | |||
