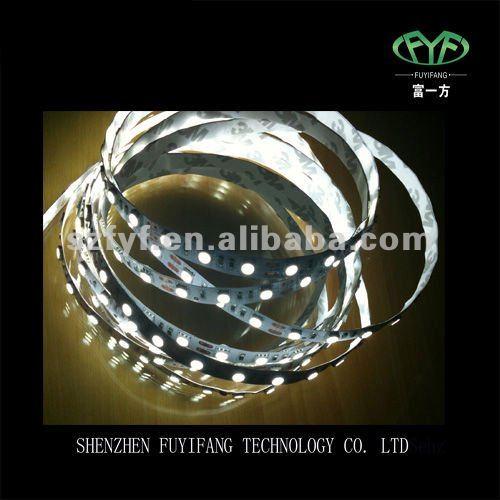

30leds\m, 12V, 120deg SMD5050 led strip light
30leds /米，12V，120deg SMD5050灯条
快速详细信息
- 光源：LED
- 项目类型：灯条
- 色温（CCT）：暖白
- 发光颜色：蓝色
- 原产地：广东省，中国（大陆）
- 品牌名称：FYF
- 型号：FYF-5050-30D-12V
- LED类型：SMD5050
- LED数量：30leds /米
- 每段发光二极管：每段提供3LEDs
- 董事会：FPC
- 光束角度：120度
- 输入电压：DC 12V
- 包装：5米/卷
- 颜色：红，绿，蓝，白，暖白，黄，RGB
- 长寿命：50000到80000小时
- 认证：认证：UL，TUV，CE，ROHS，FCC，SGS
包装及送货
| 包装细节： | 防静电袋机。 |
|---|---|
| 交货详细信息： | 在7个工作日内 |
技术指标
30leds /米，12V，120deg SMD5050灯条1）5米/卷
2）3个LED每个段
3）UL，TUV，CE，ROHS，FCC，SGS
30leds /米，12V，120deg SMD5050灯条
1）SMD5050的LED软灯条，每段可提供3LEDs
2）5米/卷，30LEDs /米，DC12V
3）不防水，防水可供选择
4）颜色：红，绿，蓝，白，暖白，黄，RGB
5）认证：UL，TUV，CE，ROHS，FCC，SGS
连续长度灵活带领带5米/卷，3个LED每个段
在12V系统上运行
超高亮LED顶部
固态，高冲击或振动性
大幅减少电力成本
120度光束角的照明
无射频干扰
免维护，安装方便
长寿命：50000到80000小时
低功耗和高强度
经过3000小时不到1％的衰减
可以是不防水，水晶环氧防水，固体盖管防水
CE＆ROHS批准
贴片灯
1.高亮度贴片5050用作光源和高耐高温FPC用于软光条。
2.很多颜色都可以使用，如红，绿，蓝，黄，白，暖白，RGB等。
3.每提供3LEDs切能够和双3M胶带用于在行程的后面。
4.薄FPC设计和较低的工作电压使灯带操作方便和安全。
5.它广泛用于室内外装饰。
| 技术参数 | |||||||
| 型号。： | LED种类 | LED数量 | PCS颜色 | 工作电压 | 工作电流 | 功率 | 光束角 |
| FYF-5050-30D | SMD5050 | 30leds / M | 黄/白/黑 | DC12V，24V | 600毫安/平方米 | 7.2W / M | 120° |
| FYF-5050-60D | SMD5050 | 60leds / M | 黄/白/黑 | DC12V，24V | 1200毫安/平方米 | 14.4W / M | 120° |
| FYF-5050-30D | SMD5050 | 30leds / M | RGB | DC12V，24V | 600毫安/平方米 | 7.2W / M | 120° |
| FYF-5050-60D | SMD5050 | 60leds / M | RGB | DC12V，24V | 1200毫安/平方米 | 14.40W / M | 120° |
| 颜色：白/暖白/黄/红/贪婪/蓝/ RGB | |||||||
| 它可以防水或不防水，只是取决于您的要求 | |||||||
应用范围：
建筑装饰照明
窗口显示照明
游乐园或剧院
应急照明
楼梯重点照明
广告招牌，灯箱
背光标牌字母
游泳池和喷泉
假日装饰照明
汽车装饰照明
Quick Details
- Light Source: LED
- Item Type: Light Strips
- Color Temperature (CCT) : Warm White
- Emitting Color: Blue
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: FYF
- Model Number: FYF-5050-30D-12V
- LED style: SMD5050
- Led qty: 30leds/ m
- leds per segment: 3leds per segment
- Board: FPC
- beam angle: 120 degrees
- Input voltage: DC 12V
- Packaging: 5m/ roll
- Color: red, green, blue, white, warm white, yellow, and RGB
- Long lifespan: 50000 to 80000 hours
- Certificate: Certificates: UL, TUV, CE, RoHs, FCC, SGS
Packaging & Delivery
| Packaging Details: | anti static bag with dryer. |
|---|---|
| Delivery Detail: | within 7 working days |
Specifications
30leds/ m, 12V, 120deg SMD5050 led strip light1) 5m/ roll
2) 3 leds for each segment
3) UL, TUV, CE, RoHs, FCC, SGS
30leds/ m, 12V, 120deg SMD5050 led strip light
1) SMD5050 LEDs Flexible strip, 3leds per segment
2) 5m/ roll, 30LEDs/ m, DC12V
3) Non-waterproof, waterproof are available for options
4) Color: red, green, blue, white, warm white, yellow, and RGB
5) Certificates: UL, TUV, CE, RoHs, FCC, SGS
Continuous length flexible led strips 5m/ reel, 3 LEDs for each segment
Runs on 12V systems
Super bright top LED
Solid state, high shock or vibration-resistant
Major reduction in power costs
120 degrees beam angle illumination
No RF interference
Maintenance free, easy installation
Long lifespan: 50000 to 80000 hours
Low power consumption and high intensity
Less 1% attenuation after 3000 hours
Can be non-waterproof, crystal epoxy waterproof, solid cover tube waterproof
CE & ROHS approved
SMD Flexible Strip Light
1. High brightness SMD 5050 is used as the light source and high temperature resistant FPC is used for the flexible strip light.
2. A lot of color can be available, such as RED, GREEN, BLUE, YELLOW, WHITE, WARM WHITE, RGB etc..
3. Every 3LEDS cut-able and double 3M adhesive tape is used at the back of trip.
4. The thin FPC design and lower working voltage make the strip lights easy to operate and safe.
5. It is widely used for indoor and outdoor decoration.
| Technique parameters | |||||||
| Model No.: | Led Type | LED QTY | PCS color | Working Voltage | Working Current | Power | Beam angle |
| FYF-5050-30D | SMD5050 | 30leds/ M | Yellow/ white/ black | DC12V, 24V | 600mA/ m | 7.2W/ M | 120° |
| FYF-5050-60D | SMD5050 | 60leds/ M | Yellow/ white/ black | DC12V, 24V | 1200mA/ m | 14.4W/ M | 120° |
| FYF-5050-30D | SMD5050 | 30leds/ M | RGB | DC12V, 24V | 600mA/ m | 7.2W/ M | 120° |
| FYF-5050-60D | SMD5050 | 60leds/ M | RGB | DC12V, 24V | 1200mA/ m | 14.40W/ M | 120° |
| Color: White/ Warm White/ Yellow/ Red/ Greed/ Blue/ RGB | |||||||
| It can be waterproof or nonwaterproof, just depends on your requirement | |||||||
Applications:
Architectural decorative lighting
Window display lighting
Amusement park or theater
Emergency lighting
Stairway accent lighting
Ad signs, light boxes
Back lighting for signage letters
Swimming pools and fountains
Holiday decorative lighting
Car decorative lighting
