LIER冰生成的配置：

发电机：高效换热器合金衬板

上，下底座：铝的情况下

寒冰刃：304不锈钢螺旋叶片

泵：立式循环水泵的腐蚀

盐水泵：耐腐蚀脉冲计量泵

水箱：304不锈钢罐保温

电源：3P / 380V / 50HZ

供水：直径1/2“，0.14Mpa的压力

LIER冰发生器功能：

1）快速冷却

LIER片冰蒸发器具有更多的接触面积，并提供了更大的冷却效率因优秀的热交换效率。

2）良好的硬度

LIER片状的不锈钢或碳钢，具有更强的硬度冰蒸发器ismade我们的特殊处理之后，寿命超过20年。

3）卫生冰

片冰时蒸发器的内部而成，所以它状态并没有暴露于环境条件或机械操作。 因此，它比其他类型的冰的需要更多的机械和humanhandling更卫生。

4）成本与节省劳力

片冰生产requiresless机械和人力劳动比块冰，和片冰生产不需要除霜循环。

5）不浪费水

LIER片冰机回收所有unfrozenwater回冰蒸发器，所以没有水被浪费。 这确保了所有的水被转化为片状冰并节省水资源。

6）应用广泛

淡水和海水供LIER冰蒸发器，但在海水应提前通知。

使用条件LIER冰生成：

环境temperatuer：25℃

水入口温度。 15℃

蒸发温度：-22℃

冷凝温度：45℃

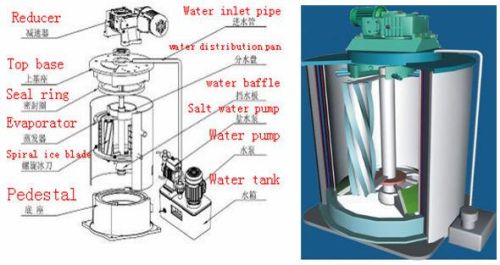

LIER ice generator configuration:

Generator: efficient heat exchanger alloy liner

Upper and lower base: case aluminum

Ice blade: 304 stainless steel spiral blade

Pumps: vertical circulating water pump corrosion

Salt water pumps: corrosion resistant pulse-metering pump

Water tank: 304 stainless steel tank with insulation

Power: 3P/ 380v/ 50Hz

Water supply: diameter1/2', Pressure of 0.14Mpa

LIER ice generator features:

1) Fast Cooling

LIER flake ice evaporator has more contact areas and provides greater cooling efficiency due to the outstanding heat exchange efficiency.

2) Good hardness

LIER flake ice evaporator ismade of stainless steel or carbon steel, with stronger hardness after our special processing, the lifespan is over 20 years.

3) Sanitary Ice

Flake ice is made inside of the evaporator, so it isnot exposed to ambient conditions or mechanical handling. Therefore, it is more sanitary than other types of ice which require more mechanical and humanhandling.

4) Cost & LaborSaving

Flake ice production requiresless mechanical and human labors than block ice, and flake ice production does not require a defrost cycle.

5) No Wasted Water

LIER flake ice machine recycles all unfrozenwater back to the ice evaporator, so no water is wasted. This ensures that all water is converted to flake ice and conserves water resources.

6) Wide Application

Both freshwater and seawater are available for LIER ice evaporator, but the seawater should be advised in advance.

LIER ice generator using condition:

Ambient temperatuer: 25°C

water inlet temperature. 15°C

Evaporation temperature: -22 °C

Condensing temperature: 45°C
