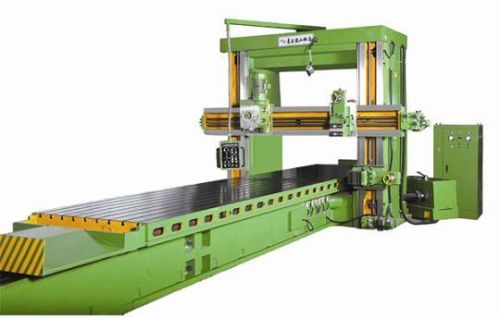

Planer Milling Machines BXM20\BXMQ20

龙门铣床BXM20 / BXMQ20

议价

Specifications					BXMQ20 series Light Planer Milling Machines
					BXMQ2010A	BXMQ2013A	BXMQ2013C	BXMQ2016B	BXMQ2016D	BXMQ2017B	BXMQ2017C	BXMQ2017D
Max. workpiece dimensions		Length mm			3000	3000	4000	4000	6000	8000	10000	12000
		Width mm			1000	1300	1300	1600	1600	1700	1700	1700
		Height mm			1000			1200		1500
Max. workpiece weight kg					3000	5000	6000	6000	8000	10000	12000	15000
Table motor power kw					15	15	22	22	22	30	30	37
Table	Length mm				3000	3000	4000	4000	6000	8000	10000	12000
	Width mm				700	900	900	1200	1200	1300	1300	1300
	Max. pull of rack				44000 (N)
	Feeding speed m/ min				0.08-30 (Stepless)
Distance between columns mm					1040	1320	1320	1620	1620	1720	1720		1720
Feeding rate of vertical tool rest				Horizontal mm	0.2-12 (Stepless)
				Vertical mm	0.2-12 (Stepless)
Feeding rate of side tool rest mm					0.2-6 (Stepless)
Beam up/ down speed mm/ min					360
Max. sectional area of planing arbor mm					40 x 40
External dimensions			Length mm		6700	6700	8700	8700	12700	16700	20700		24700
			Width mm		2900	3200	3200	3500	3500	3600	3600		3600
			Height mm		2600	2600	2600	2800	2800	3100	3100		3100
