瓷器球磨机

议价
加入意向瓷器球磨机主要用于混合材料的铣削。 它的工作原理与较少的能源,但生产的高细度的产品。 它有两种类型的湿厂和干磨。 本机可根据使用不同的衬板产品的要求,以满足不同客户的需求。 研磨的细度取决于研磨时间。 电机由这可以降低电压,降低起始电耦合启动。
该结构分为整体式和独立型。 本机的优点是投资低,节能减排,结构新颖,操作方便安全,性能稳定可靠等,这是适用于混合及研磨普通和特殊材料等。 用户可以选择一种合适的模式,衬板和媒体按因素,如材料的比重和硬度,以及输出等。
| 模型 | 进纸器容量(吨/时) | 壳旋转速度(转/分) | 参考电机功率(kw) | 衬里材料 |
| 600*700 | 0.05 | 50 | 2.2 | 线路材料(陶瓷,硅,橡胶,金属)参考马达依赖于线和铣削材料的材料。 |
| 800*600 | 0.075 | 42 | 3 | |
| 900*1200 | 0.2 | 38.5 | 5.5 | |
| 1300*1500 | 0.5 | 33 | 7.5 | |
| 1500*1800 | 1.2 | 28.5 | 11 | |
| 1800*2000 | 1.5 | 24 | 15 | |
| 2600*2800 | 5 | 16.5 | 37 | |
| 3000*3800 | 10 | 14.5 | 57.2 | |
| 3200*4600 | 15 | 13.5 | 75 |

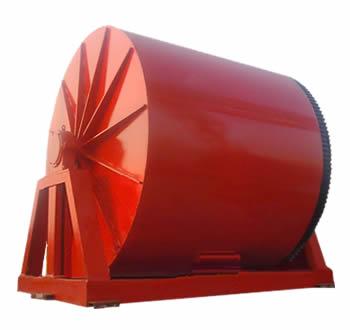

Chinaware ball mill is mainly used for mixing, milling of the materials. It works with less energy but produces high fineness product. It has two types that are wet mill and dry mill. The machine could use different lining boards according to products requirements to satisfy different customers requirements. The milling fineness depends on the milling time. The motor is started by the coupling which can reduce voltage and lower the starting electricity.
The structure is divided into integral type and freestanding type. Advantages of the machine are lower investment, energy conservation, novel structure, easy and safe operation, stable and reliable performance, etc. It is suitable for mixing and milling general and special materials. Users can choose one proper model, lining board and media as per the factors, such as materials specific gravity and hardness, as well as output, etc.
| Model | Feeder capacity (t/ time) | Shell rotation speed (r/ min) | Reference motor (kw) | Liner material |
| 600*700 | 0.05 | 50 | 2.2 | Line material (chinaware, silicon, rubber, metal) reference motor depend on the material of the line and milling material. |
| 800*600 | 0.075 | 42 | 3 | |
| 900*1200 | 0.2 | 38.5 | 5.5 | |
| 1300*1500 | 0.5 | 33 | 7.5 | |
| 1500*1800 | 1.2 | 28.5 | 11 | |
| 1800*2000 | 1.5 | 24 | 15 | |
| 2600*2800 | 5 | 16.5 | 37 | |
| 3000*3800 | 10 | 14.5 | 57.2 | |
| 3200*4600 | 15 | 13.5 | 75 |
