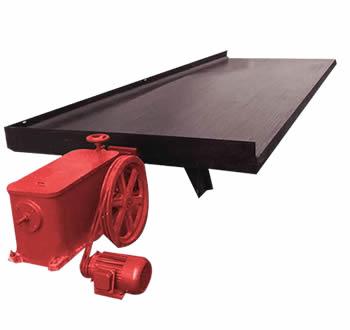

加入意向摇床是一种矿物选机进行精细的材料和它的工作原理是重力。 它被广泛应用于选择的锡,钨,金,银,铅,锌,钽,铌,铁,锰,钛铁和煤。 公司拥有摇床生产历史悠久,我们提供各种表集中器具有较高的工艺能力,高回收率ratse和高富集比。
摇床是我的选机进行精细的材料和它的工作原理是重力。
它被广泛应用于选择的锡,钨,金,银,铅,锌,钽,铌,铁,锰,钛铁和煤。
本机具有许多优点,如高集中度,高效率,易操作等,并与常规工艺相比,具有节约能源,不吃药,易管理和成本比率高的优势。
我公司 - 河南红星矿山机器有限公司拥有表选矿厂生产历史悠久,我们可以提供各种表集中器与合理的价格和高品质。
| 名称 | 单元 | 砂集中表 | 细砂集中表 | 污泥浓缩表 | |
| 尺寸 | 长度 | MM | 4450 | 4450 | 4450 |
| 驱动部分的宽度 | MM | 1855 | 1855 | 1855 | |
| 集中部分的宽度 | MM | 1546 | 1546 | 1546 | |
| 最大。 进料粒度 | MM | 2 | 0.5 | 0.15 | |
| 投饵量 | T / D | 30-60 | 10-20 | 15-25 | |
| 进料厚度 | % | 25-30 | 20-25 | 15-25 | |
| 旅程 | 度 | 16-22 | 11-16 | 8-16 | |
| 频率 | F | 15-48 | 48-53 | 50-57 | |
| 水量 | T / D | 80-150 | 30-60 | 10-17 | |
| 横向倾角 | 度 | 2.5-4.5 | 1.5-3.5 | 1-2 | |
| 肖像倾角 | % | 1.4 | 0.92 | - | |
| 表板的角落 | 度 | 32-42 | 40 | 42 | |
| 聚光方 | - | 7.6 | 7.6 | 7.6 | |
| 表板的长度比 | - | 2.6 | 2.6 | 2.6 | |
| 电机功率 | KW | 1.1 | 1.1 | 1.1 | |
Table concentrator is a mineral selecting machine for fine materials and it works by gravity. It is widely used in selection of tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal. Our company has long history of table concentrator production, and we provide various table concentrators with high process capacities, high recovery ratse and high enrichment ratios.
Table concentrator is a mine selecting machine for fine materials and it works by gravity.
It is widely used in selection of tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal.
The machine has many advantages such as high concentration ratio, high efficiency, easy operation, etc. And compared with the conventional process, it has the strengths of energy conservation, no medicine, easy management and high ratio of cost.
Our company-Henan Hongxing Mining Machinery Co. , Ltd has long history of table concentrator production and we can provide various table concentrators with reasonable prices and high qualities.
| Name | Unit | Grit concentrating table | Fine sand concentrating table | Sludge concentrating table | |
| Dimensions | Length | MM | 4450 | 4450 | 4450 |
| Driving part width | MM | 1855 | 1855 | 1855 | |
| Concentrate part width | MM | 1546 | 1546 | 1546 | |
| Max. feeding size | MM | 2 | 0.5 | 0.15 | |
| Feeding amount | T/ d | 30-60 | 10-20 | 15-25 | |
| Feeding thickness | % | 25-30 | 20-25 | 15-25 | |
| Journey | Degree | 16-22 | 11-16 | 8-16 | |
| Frequency | F | 15-48 | 48-53 | 50-57 | |
| Water quantity | T/ d | 80-150 | 30-60 | 10-17 | |
| Horizontal obliquity | Degree | 2.5-4.5 | 1.5-3.5 | 1-2 | |
| Portrait obliquity | % | 1.4 | 0.92 | - | |
| Table board corner | Degree | 32-42 | 40 | 42 | |
| Concentrating square | - | 7.6 | 7.6 | 7.6 | |
| Table board length ratio | - | 2.6 | 2.6 | 2.6 | |
| Motor power | KW | 1.1 | 1.1 | 1.1 | |
