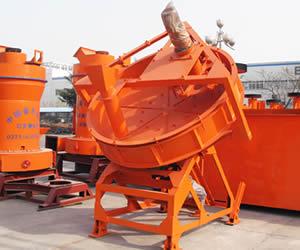

Disk grain making machine
磁盘制粒机
议价
加入意向磁盘制粒机是一种容积给料设备。 它提供的材料到下道工序均匀，连续地。 此外，它可以承受相对较高的压力。 作为细物料加料器，它适合于非粘性材料如煤粉，水泥熟料，石灰石，页岩，煤矸石和粘土。 它广泛用于金矿选矿厂，煤矿，化工，建筑，铸造定量，甚至喂食。
本机的优点是结构简单，操作方便，性能优良。 本机适用于输送材料粒度小于50mm ，而它是不适合于粘性材料，易于流或难以流动的材料。
磁盘造粒机组技术参数
| 模型 | 转速（转/分） | 生产能力（ T / H ） | 电机功率（kw ） | 调整倾角范围 | 外形尺寸（米） | 总质量（kg ） |
| Ø2.2 | 14.25 | 4-8 | 7.5 | 35-55 | 2.8*2.75*2.58 | 2850 |
| Ø2.5 | 11.81 | 5-10 | 7.5 | 35-55 | 3.2*2.3*3 | 3250 |
| Ø2.8 | 1.21 | 12-16 | 7.5 | 35-55 | 3.4*2.6*3.1 | 3710 |
| Ø3.0 | 11.3 | 15-18 | 11 | 35-55 | 3.7*2.7*3.3 | 4350 |
| Ø3.2 | 9.6 | 15-20 | 11 | 35-55 | 3.9*2.7*3.4 | 5110 |
| Ø3.6 | 9.1 | 18-24 | 15 | 35-55 | 4.3*3.1*4.0 | 6510 |
Disk grain making machine is a cubage feeding equipment. It supplies materials to the next procedure evenly and continuously. Besides, it can bear relatively higher pressure. As a fine material feeder, it is suitable for non-cohesive materials like coal powder, cement, clinker, limestone, shale, gangue and clay. It is widely used in gold concentrator, coal mine, chemical plant, construction and foundry for quantitative and even feeding.
Advantages of this machine are simple structure, easy operation and excellent performance. This machine is suitable for conveying materials with granularity less than 50mm, while it is not suitable for cohesive materials, easy-to-flow or hard-to-flow materials.
Technical Parameters of Disk Grain Making Machine
| Model | Rotation speed (r/ min) | Production Capacity (t/ h) | Motor (kw) | Adjusting range of obliquity | Dimensions ( m ) | Total weight (kg) |
| Ø2.2 | 14.25 | 4-8 | 7.5 | 35-55 | 2.8*2.75*2.58 | 2850 |
| Ø2.5 | 11.81 | 5-10 | 7.5 | 35-55 | 3.2*2.3*3 | 3250 |
| Ø2.8 | 1.21 | 12-16 | 7.5 | 35-55 | 3.4*2.6*3.1 | 3710 |
| Ø3.0 | 11.3 | 15-18 | 11 | 35-55 | 3.7*2.7*3.3 | 4350 |
| Ø3.2 | 9.6 | 15-20 | 11 | 35-55 | 3.9*2.7*3.4 | 5110 |
| Ø3.6 | 9.1 | 18-24 | 15 | 35-55 | 4.3*3.1*4.0 | 6510 |
