磁选机简介

磁分离器通常用于工业用途，例如回收和制造。 他们还发现，在科学实验室，往往需要的金属材料，是不含杂质（通常在化学的情况下）。 在这种情况下，磁性分离器通常是圆筒或烧瓶防止两种不同物质之间的交叉污染通过迫使要么全部从一种物质的磁性材料的或一些到单独的容器中。

磁选机的应用

该 湿式磁选机 可以单独原料具有不同的磁刚度。 磁力和机械力作用下机的工作原理。 磁分离器被设计为恢复铁磁材料。 该 磁鼓分离器 在设计和尺寸可供选择，为所有应用提供解决方案。 每一个分离器的心脏是磁系统以其独特的设计和高效率的记录证明。 中国磁选机 它的循环设计过程中血管直径小于3mm可用。 磁分离器是一种有效的设备用于处理细和微弱磁性矿物，如赤铁矿，褐铁矿，钨，钛铁矿，和钽铌等

磁选机的优点：

1）短期磁路;

2）小漏磁;

3）高磁场强度;

4）能耗低;

5）精细选矿结果;

6）结构简单，易于维护;

工作原理

矿物泥浆流入，通过中进纸器的单元格; 矿物颗粒是馈线水管的水流的作用下松时流入细胞。 受磁场影响，磁性粒子群在一起，形成磁集群或产业链。 与矿物浆液，磁性或簇链移向磁极，和的磁性被吸收到汽缸。 因为磁极的极性，旋转方向交替不断，并保持在工作时固定。 当磁性簇和链周而复始随着气缸，混到矸石等非磁性矿石倒下由于通过磁极交替产生的混合的现象，并且它是集中被吸收到圆筒表面。 浓缩物移至磁系统的末端，其中所述磁性最弱随着旋转圆柱体，并且由当前通过排出矿管喷射排出到浓缩液罐。 非磁性或弱磁性仍然沿与矿物浆液排出。

永磁力不倒翁的技术参数

永磁力不倒翁的技术参数

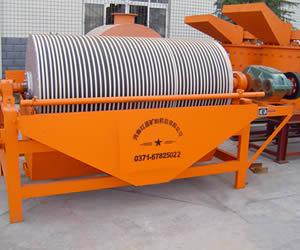

Introduction of Magnetic Separator

Magnetic separators are often used for industrial purposes such as recycling and manufacturing. They are also found in scientific laboratories that often require metallic materials that are free of impurities (often the case in chemistry) . In this case, the magnetic separator is usually a cylinder or flask that prevents cross-contamination between two different substances by forcing either all or some of the magnetic materials from one substance into a separate container.

Application of Magnetic Separator

The wet magnetic separator can separate raw materials with different magnetic rigidities. The machine works under the magnetic force and machine force. Magnetic separators are designed to recover ferromagnetic materials. The magnetic drum separators are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design and a proven record of high efficiency. China magnetic separator is available in cyclic design with process vessel diameters smaller than 3mm. Magnetic separator is one kind of efficient equipment for processing fine and feeble magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalum-niobium, etc.

Advantages of Magnetic Separator:

1) Short magnetic circuit;

2) Little magnetic flux leakage;

3) High magnetic intensity;

4) Low energy consumption;

5) Fine beneficiating results;

6) Simple structure and easy to maintain;

Working Principle

The mineral slurry flows into the cell through box feeder; the mineral particle is loose under the function of water flow of feeder water pipe when they flow into the cell. Affected by magnetic field, the magnetic particle swarm together and form magnetic cluster or chain. With the magnetism of mineral slurry, the magnetic cluster or chain moves toward the magnetic pole, and is absorbed to the cylinder. Because of the polarity of magnetic pole, the revolving directions alternate constantly, and remain fixed when it is working. When the magnetic cluster and chain go round and round along with the cylinder, the mingled gangue and other non-magnetic ore fall down due to the mixing phenomena produced by alternation of magnetic poles, and it is concentrate that is absorbed to the cylinder surface. The concentrate moves to the end of magnetic system where the magnetism is weakest along with the revolving cylinder, and is discharged into concentrate tank by the current ejected by the discharging-ore pipe. The non-magnetic or weak magnetic remained are discharged along with the mineral slurry.

Technical Parameters of Permanent Magnetic Force Tumbler

Technical Parameters of Permanent Magnetic Force Tumbler
