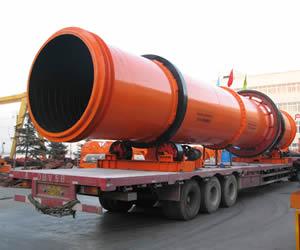

简介烘干机

机机，它也被称为回转干燥机是用于干燥不同的材料具有湿度或粒度在各个领域中的关键设备。 根据其形状，它也被称为滚筒式干燥机。 中国是大国制造机之一，也是世界上最畅销的制造商。 河南红星矿山机器有限公司是在那些公司在中国制造机的畅销书之一。 作为矿山机械的最重要的制造基地。 中国机 和 旋转干燥器 最热门的产品在市场上，无论他们是否在国内和国外。

烘干机中的应用

旋转干燥器可广泛用于干燥各种材料，如金属和非金属矿物，粘土在水泥工业和煤炭在煤矿等，并且它是很容易被操作，工人可以与他们处理在很短的时间。 作为一家专业生产厂家，具有多年的矿山机械的经历，河南红星矿山机器有限公司可以把我们的技术人员到客户的作业现场，培训工人，并指导操作在此类机机公司生产， 例如 回转烘干机，石灰石机，转筒烘干机，水泥回转烘干机 等等。 我们不会让每一位客户倒在我们的产品和服务。

工作原理

材料发送到回转烘干机由皮带输送机或斗式提升机的料斗; 资料输入与斜坡水平线从较高端安装桶; 热空气进入从下侧的桶，然后材料和热空气混合在一起。 材料去通过当枪管旋转重力下侧; 的桶升降机材料上下内侧上升降器，使材料和热空气混合完全，以提高生产效率

优势

1，合理的设计;

2.高效率;

3.低功耗，节能;

4.易于维护;

5.操作简单;

6.快速交货;

7.坚固的结构;

8.新颖的设计;

9.定制为每一种应用;

10.最佳的价格在市场上。

H系列回转烘干机技术参数

规格。/平方米
（直径*长度） 		壳牌容积
(m³) 		容量
（吨/小时） 		安装
倾角
(%) 		最高入口
气温
(℃) 		主电机
（KW） 		重量
(t)
Φ1.2*8.0 9.0 1.9 ~ 2.4 3 ~ 5 700 ~ 800 7.5 9
Φ1.2*10 11.3 2.4 ~ 3.0 3 ~ 5 700 ~ 800 7.5 11
Φ1.5*12 21.2 4.5 ~ 5.7 3 ~ 5 700 ~ 800 15 18.5
Φ1.5*14 24.7 5.3 ~ 6.6 3 ~ 5 700 ~ 800 15 19.7
Φ1.5*15 26.5 5.7 ~ 7.1 3 ~ 5 700 ~ 800 15 20.5
Φ1.8*12 30.5 6.5 ~ 8.1 3 ~ 5 700 ~ 800 18.5 21.5
Φ1.8*14 35.6 7.6 ~ 9.5 3 ~ 5 700 ~ 800 18.5 23
Φ2.2*12 45.6 9.7 ~ 12.2 3 ~ 5 700 ~ 800 22 33.5
Φ2.2*14 53.2 11.4 ~ 14.2 3 ~ 5 700 ~ 800 22 36
Φ2.2*16 60.8 13.0 ~ 16.2 3 ~ 5 700 ~ 800 22 38
Φ2.4*14 63.3 13.5 ~ 16.9 3 ~ 5 700 ~ 800 37 45
Φ2.4*18 81.4 17.4 ~ 21.7 3 ~ 5 700 ~ 800 37 49
Φ2.4*20 90.4 19.3 ~ 24.1 3 ~ 5 700 ~ 800 45 54
Φ2.4*22 99.5 21.2 ~ 26.5 3 ~ 5 700 ~ 800 45 58
Φ2.6*24 127.4 27.2 ~ 34.0 3 ~ 5 700 ~ 800 55 73
Φ3.0*20 141.3 30.1 ~ 37.7 3 ~ 5 700 ~ 800 75 85
Φ3.0*25 176.6 37.7 ~ 47.1 3 ~ 5 700 ~ 800 75 95
Φ3.2*25 201 42.9 ~ 53.6 3 ~ 5 700 ~ 800 90 110
Φ3.6*28 285 60.8 ~ 76.0 3 ~ 5 700 ~ 800 160 135

间接传热烘干机技术参数

项目
外壳直径*壳长		 内部外壳的直径（mm） 内部内壳的直径（mm） 壳长
m		 壳牌容积
m3		 壳牌Obli-quity 提升刀片式 最高进气Tem.oC 尺寸
Ø1.5*15m
Ø1.5*17m
Ø1.5*19m		 1500 500 15
17
19		 20.27
22.97
25.68		 3-5% 升降形式 850 16.2*2.7*2.7
18.2*2.7*2.7
20.0*2.9*2.9
Ø1.8*21m
Ø1.8*23m
Ø1.8*25m		 1800 650 21
23
25		 35.91
39.33
42.75		 3-5% 升降形式 850 22.5*2.7*2.7
24.5*2.9*2.9
26.5*2.9*2.9
Ø2.2*21m
Ø2.2*23m
Ø2.2*25m		 2200 800 21
23
25		 58.10
63.61
69.15		 3-5% 升降形式 850 -

A Brief Introduction to Dryer Machine

Dryer machine which is also known as rotary dryer is the key equipment used for drying different materials with humidity or granularity in various fields. According to its shape, it is also called drum dryer. China is one of the major countries manufacturing dryer and is also the best-selling manufacturer in the world. Henan Hongxing Mining Machinery Co. , Ltd is one of the best sellers in those companies manufacturing dryer in China. As the most important manufacturing base of mining machines.China dryers and rotary dryers are the most popular products in the market no matter whether they are at home and abroad.

Application of Dryer Machine

Rotary dryers can be widely used to dry various materials, such as metallic and nonmetallic mineral, clay in cement industry and coal in coal mine, etc, and it is quite easy to be operated and the workers can handle with them in a short time. As a professional manufacturer with many years experiences on mining machinery, Henan Hongxing Mining Machinery Co. , Ltd can send our technicians to the jobsites of the customers to train the worker and to guide the operation on those kinds of dryer machines produced by our company, such as rotary dryer, limestone dryer, drum dryer, cement rotating dryer and so on. We won't let every customer down on our products and our services.

Working Principle

Materials are sent to the hopper of rotary dryer by belt conveyor or bucket elevator; materials enter the barrel installed with slope to horizontal line from the higher side; hot air enters the barrel from the lower side, then materials and hot air mix together. Materials go to the lower side by gravity when the barrel rotates; lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely in order to improve the efficiency of the production

Advantages

1. Reasonable design;

2. High-efficiency;

3. Low consumption and energy saving;

4. Easy to maintain;

5. Easy to operate;

6. Quick deliveries;

7. Solid construction;

8. Novel design;

9. Customized for every application;

10. Best price on the market.

Technical Parameters of H-Series Rotary Dryer

Spec./ m
(Dia.*Length) 		Shell Cubage
(m³) 		Capacity
(t/ h) 		Installation
Obliquity
(%) 		Highest Inlet
Air Temperature
(℃) 		Main Motor
(KW) 		Weight
(t)
Φ1.2*8.0 9.0 1.9 ~ 2.4 3 ~ 5 700 ~ 800 7.5 9
Φ1.2*10 11.3 2.4 ~ 3.0 3 ~ 5 700 ~ 800 7.5 11
Φ1.5*12 21.2 4.5 ~ 5.7 3 ~ 5 700 ~ 800 15 18.5
Φ1.5*14 24.7 5.3 ~ 6.6 3 ~ 5 700 ~ 800 15 19.7
Φ1.5*15 26.5 5.7 ~ 7.1 3 ~ 5 700 ~ 800 15 20.5
Φ1.8*12 30.5 6.5 ~ 8.1 3 ~ 5 700 ~ 800 18.5 21.5
Φ1.8*14 35.6 7.6 ~ 9.5 3 ~ 5 700 ~ 800 18.5 23
Φ2.2*12 45.6 9.7 ~ 12.2 3 ~ 5 700 ~ 800 22 33.5
Φ2.2*14 53.2 11.4 ~ 14.2 3 ~ 5 700 ~ 800 22 36
Φ2.2*16 60.8 13.0 ~ 16.2 3 ~ 5 700 ~ 800 22 38
Φ2.4*14 63.3 13.5 ~ 16.9 3 ~ 5 700 ~ 800 37 45
Φ2.4*18 81.4 17.4 ~ 21.7 3 ~ 5 700 ~ 800 37 49
Φ2.4*20 90.4 19.3 ~ 24.1 3 ~ 5 700 ~ 800 45 54
Φ2.4*22 99.5 21.2 ~ 26.5 3 ~ 5 700 ~ 800 45 58
Φ2.6*24 127.4 27.2 ~ 34.0 3 ~ 5 700 ~ 800 55 73
Φ3.0*20 141.3 30.1 ~ 37.7 3 ~ 5 700 ~ 800 75 85
Φ3.0*25 176.6 37.7 ~ 47.1 3 ~ 5 700 ~ 800 75 95
Φ3.2*25 201 42.9 ~ 53.6 3 ~ 5 700 ~ 800 90 110
Φ3.6*28 285 60.8 ~ 76.0 3 ~ 5 700 ~ 800 160 135

Technical parameters of Indirect heat transfer dryer

Items
Shell diameter *shell length		 Inside diameter of outer shell (mm) Inside diameter of inner shell (mm) Shell length
m		 Shell cubage
m3		 Shell Obli-quity Lifting blade form Highest inlet air Tem.oC Dimensions
Ø1.5*15m
Ø1.5*17m
Ø1.5*19m		 1500 500 15
17
19		 20.27
22.97
25.68		 3-5% Lifting form 850 16.2*2.7*2.7
18.2*2.7*2.7
20.0*2.9*2.9
Ø1.8*21m
Ø1.8*23m
Ø1.8*25m		 1800 650 21
23
25		 35.91
39.33
42.75		 3-5% Lifting form 850 22.5*2.7*2.7
24.5*2.9*2.9
26.5*2.9*2.9
Ø2.2*21m
Ø2.2*23m
Ø2.2*25m		 2200 800 21
23
25		 58.10
63.61
69.15		 3-5% Lifting form 850 -
