高效节能圆锥球磨机

应用：

球磨机是关键制粉设备材料已被粉碎后。 它被广泛用于水泥，硅酸盐，新建筑材料，耐火材料，黑色金属和有色金属以及陶瓷。 它被广泛应用于磨中干法或湿法矿石。

工作原理：

该球磨机为卧式圆筒旋转装置和边缘齿轮驱动。 有两个腔室和网格。 材料进入所述第一腔室通过的进料口。 里面的第一室，还有舞台衬管和波纹衬板和钢球。 壳旋转，以便产生电力，并且该力带来的球到一定的高度，然后球下降，因为重力的向下。 的影响是磨削力给物料。 初始研磨后，物料进入通过隔离屏第二室中。 在第二室中，有扁平衬垫和钢球，和二次粉碎后，材料被从排出孔排出。 那么整个研磨处理结束。

高效节能圆锥球磨机技术参数

High-efficiency energy saving cone ball mill

Application:

Ball mill is the key milling equipment after materials have been crushed. It is widely used in cement, silicate, new construction materials, refractory materials, ferrous metals and non-ferrous metals as well as ceramics. It is widely applied to grind ores in dry or wet process.

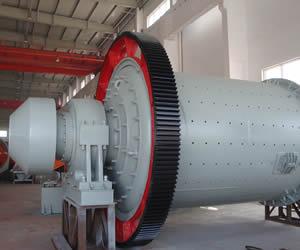

Working principle:

The ball mill is horizontal cylindrical rotation device and driven by brim gearwheel. There are two chambers and grids. Materials go into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings balls to a certain height and then balls drop down because of the gravity. The impact is the grinding force to the materials. After the primary grinding, materials go into the second chamber through isolation screen. In the second chamber, there are flat liners and steel balls, and after the secondary grinding, materials are discharged from the discharging hole. Then the whole grinding process is finished.

Technical parameters of High-efficiency energy saving cone ball mill
