High-frequency screen
高频筛
议价
加入意向高频筛由激振器，矿浆分配器，筛框，机架，悬挂弹簧和筛网等。
它有许多功能，如高效率，小幅度和高频优良的屏蔽效果。
关于向工作原理，它不同于传统的屏幕。 通过用筛盖小粒度的高速振动破碎浆料的表面张力的，共同的装置中，高频屏加速的大密度有用地雷的分离和增加比输出粒度和较小的材料的接触概率 筛孔。 因此，它创建良好的条件，用于分离材料，尤其是对于小尺寸的材料。
高频筛技术参数
| 模型 | 屏幕平方（米2 ） | 输入材料的厚度（％） | 生产能力（ T / H ） | 功率（kw ） |
| GPS - 4 | 4.5 | 30%-40% | 15-25 | 0.72 |
| GPS - 5 | 5.2 | 30%-40% | 20-30 | 1.1 |
| GPS - 6 | 6 | 30%-40% | 24-36 | 1.5 |
| GPS - 8 | 8.1 | 30%-40% | 32-48 | 2.2 |

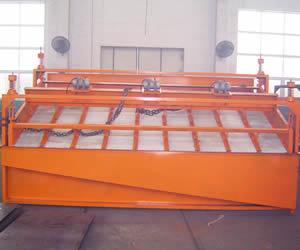

High-frequency screen consists of vibration exciter, ore slurry distributor, screen frame, machine frame, suspension spring and sieve, etc.
It has many features such as high efficiency and excellent screening effect with small amplitude and high frequency.
Regarding to the working principle, it differs from the conventional screens. By means of breaking of the surface tension of slurry, together with small granularity's high speed vibration on sieve cover, the high-frequency screen accelerates the separation of useful mines with large density and increases the contacting probability of the materials smaller than output granularity and the sieve pore. Therefore, it creates good condition for separating materials, especially for the small size materials.
Technical Parameters of High Frequency Screen
| Model | Screen square (m2) | Thickness of input material (%) | Capacity (t/ h) | Power (kw) |
| GPS-4 | 4.5 | 30%-40% | 15-25 | 0.72 |
| GPS-5 | 5.2 | 30%-40% | 20-30 | 1.1 |
| GPS-6 | 6 | 30%-40% | 24-36 | 1.5 |
| GPS-8 | 8.1 | 30%-40% | 32-48 | 2.2 |
