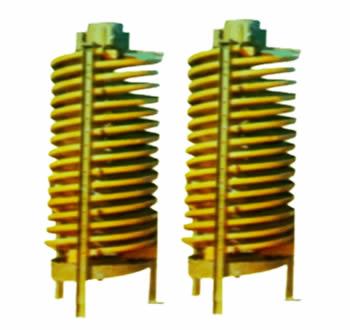

Spiral chute
螺旋溜槽
议价
加入意向集中螺旋溜槽是一个科学的产品。 它是由我们公司生产的具有多年经验集中。 它是理想的集中设备，尤其是对砂矿海边，河沙等的优点是结构合理，安装方便，极大的处理能力和运行平稳，处理量大，明确分工，效率高，等等。
这种产品是由氯塑料的，因此它有许多优点，例如防潮，防锈，耐腐蚀性，和优异的弹性用于供给量和密度。
螺旋溜槽技术参数
| 模型 | DL2000 | 5LL -900 | 5LL -600 | 5LL -400 | |
| 外部直径（mm） | 2000 | 1500 | 1200 | 900 | |
| 内距离（mm） | 360 | 250 | 220 | 180 | |
| 螺丝距离（mm ） | 1200 | 900-675 | 720/540 | 540/360 | |
| 比（滚动距离/直径） | 0.6 | 0.6 | 0.6/0.45 | 0.6/0.4 | |
| 横向倾角（°） | 9° | 9° | 9° | 9° | |
| 星 | 2-4 | 2-4 | 2-4 | 2-4 | |
| 转 | 3.5 | 4 | 4/5 | 4/5 | |
| 进料尺寸（mm ） | 0.4-1 | 0.03-1 | 0.03-0.3 | 0.03-0.3 | |
| 馈送厚度（％） | 20-45 | 30-45 | 30-50 | 30-50 | |
| 处理能力（ T / H ） | 15-40 | 8-16 | 4-6 | 2-3 | |
| 面积（平方米） | 5.7 | 3.3 | 2 | 1.2 | |
| 高度（mm ） | 6.6-8 | 5.5 | 5.23 | 3.2 | |
Concentrator spiral chute is a scientific product. It is produced by our company with many years concentrating experiences. It is ideal concentrating equipment, especially for the sand ore of seashore, river sand, etc. The advantages are reasonable structure, easy installation, great processing capacity and smooth operation, large handling capacity, clear separation, high efficiency, etc.
This product is made of the chlorine plastic, so it has many advantages such as moisture proof, rust protection, corrosion resistance, and excellent elasticity for feeding amount and density.
Technical Parameters of Spiral Chute
| Model | Dl2000 | 5LL-900 | 5LL-600 | 5LL-400 | |
| External diameter (mm) | 2000 | 1500 | 1200 | 900 | |
| Inner distance (mm) | 360 | 250 | 220 | 180 | |
| Screw distance (mm) | 1200 | 900-675 | 720/540 | 540/360 | |
| Ratio (scroll distance/ diameter) | 0.6 | 0.6 | 0.6/0.45 | 0.6/0.4 | |
| Transverse obliquity (°) | 9° | 9° | 9° | 9° | |
| Star | 2-4 | 2-4 | 2-4 | 2-4 | |
| Turn | 3.5 | 4 | 4/5 | 4/5 | |
| Feeding size (mm) | 0.4-1 | 0.03-1 | 0.03-0.3 | 0.03-0.3 | |
| Feeding thickness (%) | 20-45 | 30-45 | 30-50 | 30-50 | |
| Processing capacity (t/ h) | 15-40 | 8-16 | 4-6 | 2-3 | |
| Area (m²) | 5.7 | 3.3 | 2 | 1.2 | |
| Height (mm) | 6.6-8 | 5.5 | 5.23 | 3.2 | |
