板链斗式提升机介绍：

该机在研磨粉，颗粒和小疙瘩材料，如谷物，煤，水泥和碎矿石等的垂直输送应用，并且它的运输高度可达40米。 斗链的特点是结构简单，运行稳定混合或重力式卸料。 轮缘使用组合链轮，并且很容易更换和经过特殊处理，以确保长的使用寿命。 的下部配备靠重力自动张紧装置，以便它能够保持恒定的张力，以避免滑出链。 该材料的温度不能超过250℃。

斗式提升机的工作原理：

料斗铲起从石斗下方，然后被提升到与传送带或链条的顶部材料，接着它被向下滑过旁路车轮上的顶部和材料通过桶链或现在倒入接受槽 葫芦输送机，整个过程就结束了。 的斗式提升机与司机的驱动带通常由橡胶制成，它安装在下面或在驱动辊和所述转向辊的上方。 链条驱动斗式提升机通常配备有两个平行的传动链，在其上的上面或下面是驱动链轮和一个转接链轮。 斗式提升机一般都配有机箱，防止灰尘飞入斗式提升机。

主要特点：

1.优异的密封性，减少对环境的污染。

2，操作维修方便，易损件少。

3.能源节约和更少的维护确保机器非常低的成本。

4.先进的设计原则，保证了整机运行的可靠性。

5.高精度。 外壳的情况是刚性好，外形美观的折边和中间压筋。

6.体积小。 与具有相同的起重能力的其他机器相比，这款机器的尺寸更小。

7.输送能力。 该系列提升机NE15〜NE800多种规格。 提高15〜800立方米/小时的体积范围。

本公司生产各种斗式提升机，如斗式输送机，斗式提升机的类型，矿石提升机，搅拌桶，石斗。

斗式提升机技术参数

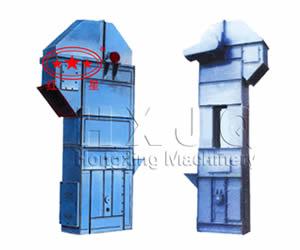

Plate Chain Bucket Elevator Introduction:

The machine is applied in the vertical conveying of abrasive powder, granular and small lump materials, such as grain, coal, cement and crushed ore, etc. , and its transportation height can reach to 40m. The bucket chains are characterized by simple structure, stable operation hybrid or gravity discharge. The wheel rim uses combination sprocket, and it is easy to replace and has been specially treated to ensure a long service life. The underpart is equipped by gravity automatic tensioning device, so that it can maintain a constant tension to avoid slipping off the chain. The material temperature can not exceed 250 ℃.

Working Principle of Bucket Elevator:

Hopper scoops up materials from the stone bucket below, then is lifted to the top with the conveyor belt or chain, and next it is downward rolled over bypass the wheel on the top and the materials are dumped into the accept slot now by bucket chain or hoist conveyor, and the whole process is over. The driving band of bucket elevator with driver is commonly made of rubber, and it is installed below or above the drive roller and the divert roller. The chain-drive bucket elevator is generally equipped with two parallel transmission chain, on which above or below is a drive sprocket and a divert sprocket. Bucket elevators are generally equipped with chassis to prevent the dust flying into the bucket elevator.

Main Features:

1. Excellent sealing, less environmental pollution.

2. Easy Operation and maintenance, less wearing parts.

3. Energy conservation and less maintenance ensure the machine a very low cost.

4. Advanced design principle has ensured the reliability of machine operation.

5. High accuracy. The housing case is of good rigidity and beautiful appearance by the edge folding and intermediate beading.

6. Small size. Compared with other machines which have the same lifting capacity, size of this machine is smaller.

7. Transmission capacity. The series hoist NE15~NE800 a variety of specifications. Enhance the volume range of 15 to 800m3 / h.

Our company manufactures various bucket elevators, such as bucket conveyer, bucket type lifter, ore elevator machine, mixing bucket and stone bucket.

Technical parameters of bucket elevator
