颚式破碎机的工作原理

这种破碎机采用电动机作为动力。 该偏心轴由一个电动机通过V形带围绕。 它使摆动颚继preconcerted路径粉碎喂料。 因此，材料将被粉碎，其由所述固定颚板的粉碎室，摆动颚板和衬板。 该材料是从机的下部是你想要的放电。 请仔细检查紧固件，特别是润滑部件和螺栓，机器开始之前。 足够的石油必须对需要润滑的各组件。 紧固螺栓松动，清除破碎腔，然后启动机器。 在正常的操作中，即使是材料馈送是重要的。 负荷或过载不足是不允许的。 动颚板，固定颚板，侧护板和顶板是易损件，而备受瞩目应支付给他们。

移动颚式破碎机特点和优点：

1.移动颚式破碎腔深而且无死区，所以它提示的饲养能力和产出。
2.还原率的大小是大和生产规模是偶数。
3.调整垫片式的排矿口的设备方便可靠。 和初级颚式破碎机的调节范围是什么大提高了设备​​的灵活性。
颚式破碎机4.润滑系统安全可靠。 部件更换方便。 和维护工作少。
5.它的结构简单，操作可靠。 操作费用低。
6.节能：单机节能减排15％-30％，而机系统节能是两倍以上的单机。
7.出口的调节范围大，所以它能够满足不同客户的需求。
8.中国颚式破碎机的噪音低，粉尘少，当初级破碎机的工作。

颚式破碎机技术参数

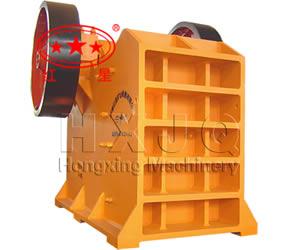

Working Principle of Jaw Crusher

This crusher adopts the electric motor as the power. The eccentric shaft is revolved by an electric motor through v-belts. It causes the swing jaw following the preconcerted path to crush the feeding material. Thus the material will be crushed in the crushing chamber which is composed of the stationary jaw plate, swing jaw plate and the liner plate. The material is discharged from the lower part of machine that is what you want. Please carefully examine the fasteners, especially lubrication components and bolts, before the machine is started. Enough oil must be needed on each lubrication component. Fasten the loose bolts, clear the crushing cavity, and then start the machine. During the normal operation, even material feeding is important. Insufficient load or over load is not allowed. Moving jaw plate, fixed jaw plate, side guard plate and roof plate are wearing parts, and much attention should be paid to them.

Mobile Jaw Crusher Features and Benefits:

1. The cavity of mobile jaw crushers are deep and no dead area, so it prompts the feeding capacity and output.
2. The size of the reduction ratio is big and the production size is even.
3. Adjustment device of the spacer style discharge mouth is convenient and reliable. And primary jaw crusher's adjustment range is big what improves the flexibility of equipment.
4. Lubrication system of jaw crusher is safe and reliable. Unit replacement is convenient. And the work of maintenance is small.
5. Its structure is simple and operation is reliable. The operation charge is low.
6. Energy conservation: single machine's energy conservation 15%-30% and the machine system energy conservation is more than twice of the single machine.
7. The adjustment range of the outlet is big, so it can satisfy the requirement of different customers.
8. The noise of China jaw crusher is low and dust is little when primary crushers work.

Technical parameters of Jaw crusher
