它适用于集中煤化工industryand等部门，使得谷物运送到各组接受来自存储槽的材料的过滤器。 钟摆料器不适合用于递送太大材料或其他的干燥功率，有可能出现在粉煤灰污染或输出的堵塞。

钟摆料器不适合用于递送干燥粉末或大粒材料，它可能会导致粉尘污染和排出孔的堵塞。 该槽式给料机可以安装在地面或到矿仓的出料口。 斜槽底部板做往复运动，该运动的频率为20-60次/分，中风是20-200MM。 行程可通过偏心轮调整; 偏心距的一半行程。 据一些矿点经验，偏心距不应小于30mm的粘性矿石。 该槽的宽度是最大进料粒度的2-2.5倍。 最大的槽式给料机可以提供矿石粒度小于500mm。 最常见的规格是980 * 1240槽式给料机，具有350-0mm之间进料粒度，这是400 * 600颚式破碎机的最佳伴侣。

摆式给料机的技术参数

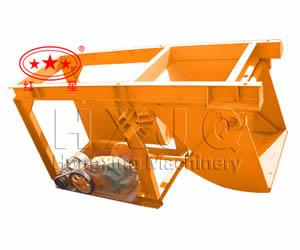

It is suitable for concentrating coal chemical industryand other departments, makes the grain delivery to various set of accepting the material from the store chute by the filter. The pendulum feeder is not suitable for delivering the dry power of the too big material or else, it may appear the fly-ash pollution or the jam of the output.

The pendulum feeder is not suitable for delivering the dry powder or big grain material, it may result in the dust pollution and the jam of the discharging holes. The chute feeder can be installed on the ground or onto discharge port of ore bin. The chute bottom plates do the reciprocating movement, the movement frequency is 20-60 times/ min and the stroke is 20-200mm. Stroke can be adjusted by the eccentric wheel; the eccentric throw is half of the stroke. According to experience of some mine sites, the eccentric throw should no less than 30mm for cohesive ore. The chute width is 2-2.5 times of maximum feeding granularity. The biggest chute feeder can supply ore with granularity less than 500mm. the most common specification is 980*1240 chute feeder, with feeding granularity between 350-0mm, which is the best partner of 400*600 jaw crusher.

Technical parameters of Pendulum feeder
