Sand Maker

制砂机

议价

译文
原文

介绍制砂机：

制砂机，这也可以被称为HX系列冲击式破碎机，是一种高效率的岩石破碎设备，产品和国际领先水平; 该机通过引入粉碎理论和技术巴马克公司美国并结合制砂机在中国的实际情况制定。它被广泛用于破碎硬而脆的材料，如岩石，研磨材料，耐火材料，水泥熟料，石英岩，铁矿石和混凝土骨料; 而且它特别适用于砂和砂岩制造用于建筑和道路铺路。

制砂机工作原理：

材料落入从机器顶部的高速转弯叶轮和粉碎与下高速离心力的作用在叶轮的分布的物质。彼此的影响后，材料被破碎叶轮和机壳之间，并从底部排出。它可以循环多次与闭路和定型装置将控制的成品粒度。

人工制砂机特点：

1. VSI砂机机是一种新型的岩石破碎设备在20世纪90年代开发的，用于替代辊式破碎机和球磨机。

2.红星制砂机结构简单，运行平稳;

3，能耗低，产量高，破碎比大;

4，体积小，操作方便，安装和维护;

5.该产品是在立方体形状很少铁污染;

6.在其工作过程中，石岩石能形成保护底层，这使得设备更加耐用;

7.一些容易磨损部位采用硬且耐磨的材料，并具有体积小，重量轻，所以它可容易地改变。

的HX系列冲击式破碎机技术参数

模型	最大。进料尺寸（mm）	功率（KW）	转速（转/分）	生产能力（T / H）	外形尺寸（mm）	重量（不包括电机）（公斤）
HX06	35	37-55	2000-3000	12-30	250016202600	5600
HX07	45	55-75	1500-2500	25-55	270017602800	7600
HX09	50	110-150	1200-2000	55-100	390020003070	12600
HX10	60	150-180	1000-1700	100-160	460023503450	17300
HX12	60	264-320	850-1450	160-300	450024003700	22500
HX13	60	320-400	800-1193	200-360	520027003800	27600

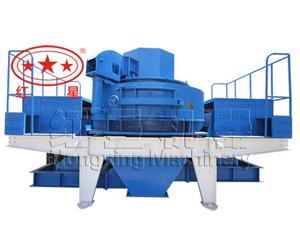

Introduction to Sand Maker:

Sand maker, which can also be called HX series impact crusher, is a type of highly-efficiency rock crushing equipment with home and international leading level; the machine is developed by introducing the crushing theory and technology from Barmac Company of America and combining the actual situation of sand making in China. It is widely used for crushing hard and brittle materials, such as rock, grinding material, refractory material, cement clinker, quartzite, iron ore and concrete aggregate; and it is especially suitable for sand and sandstone making for construction and road paving.

Working Principle of Sand Making Machine:

Material falls into the high-speed turning impellers from the top of machine and crushes with the material distributed around the impeller under the effect of high speed centrifugal force. After the impact with each other, the material is crushed between impeller and cabinet and is discharged from the bottom. It can cycle many times with the close circuit and the sizing device will control the granularity of finished products.

Characteristics of Artificial sand maker:

1. VSI sand maker machine is a new type of rock crushing equipment developed in the 1990s and is used for substituting roller crusher and ball mill.

2. The structure of Hongxing sand maker is simple and the operation is stable;

3. Low energy consumption, high output and big crushing ratio;

4. Small bulk, convenient operation, installation and maintenance;

5. The product is in the cubic shape with little iron pollution;

6. During its working process, the stone rock can form a protective bottom layer which makes the equipment more durable;

7. Some easy-wear parts adopt hard and wear-resistant materials and have small bulk and light weight, so that it can be changed easily.

Technical parameters of HX Series impact crusher

Model	Max. feeding size (mm)	Power (KW)	Rotation speed (r/ min)	Capacity (t/ h)	Dimensions (mm)	Weight (without motor) (kg)
HX06	35	37-55	2000-3000	12-30	250016202600	5600
HX07	45	55-75	1500-2500	25-55	270017602800	7600
HX09	50	110-150	1200-2000	55-100	390020003070	12600
HX10	60	150-180	1000-1700	100-160	460023503450	17300
HX12	60	264-320	850-1450	160-300	450024003700	22500
HX13	60	320-400	800-1193	200-360	520027003800	27600
