Sand Washer
洗砂机
议价
加入意向洗砂机 要么 洗砂厂 被广泛应用于粒料沙螺杆清洗，分级和脱水石英砂在建筑工地，砂石厂，水电站混凝土大坝工地，混凝土预制厂，玻璃厂等，所以有时它也被称为矿砂 垫圈。 在制砂的过程中，该 斗式洗砂机 由于有人工砂在建筑行业强劲的市场需求广泛的应用。
的洗砂设备特点：
结构简单，中，细砂的损失较少，几乎没有磨损部件除筛网使用寿命长。 本 洗砂设备 与螺旋洗砂设备/清洗机相比，优势更加明显。
操作人工洗砂机的原理：
电动机缓慢减速由皮带，减速器和齿轮轮后的叶轮中运行。 沙子和石头流入洗涤槽从饲养槽，推出的叶轮，和研对方。 杂质覆盖沙子冲走。 与此同时，多补充水分，强劲的水流会带走废物和从洗涤槽一些低重量的废弃物。
通过上述工序，在洗涤功能已完成。 干净的沙子和石头抬起通过风向标。 当它上升缓慢，水开始下降通过网和回落在洗涤槽。 一方面，水从砂和石除去; 另一方面，水可充分使用。 最后，砂，石进到出从旋转叶轮清洗完成洗涤任务。
一个专业的洗砂供应商在河南红星机械
作为专业 洗砂机的供应商 河南红星矿山机器有限公司将向您提供最好的中国洗砂机最有竞争力的价格。 如果您有兴趣 中国沙垫圈 ， 请联系我们。
洗砂机的技术参数
| 模型 | XS2200 | XS2600 | XS2900 | XS3500 |
| 轮斗直径（mm） | 2200 | 2600 | 2900 | 3500 |
| 转速（转/分） | 1-2 | 1-2 | 0.8-1.5 | 0.8-1.2 |
| 处理能力（T / H） | 15-30 | 20-50 | 50-100 | 120-200 |
| 电机功率（kw） | 4 | 5.5 | 7.5 | 11 |
| 总质量（kg） | 4300 | 5600 | 8100 | 9900 |
| 外形尺寸（长*宽*高）（mm） | 3150*1910*2280 | 3520*2390*2690 | 3820*2640*3200 | 4420*2930*3800 |

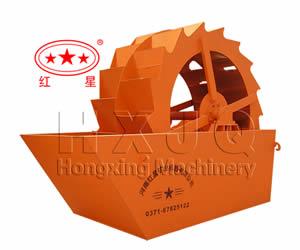

Sand washing machine or sand washing plant is widely used in particle aggregate sand screw washing, grading and dehydrating quartz and sand in construction site, sand stone factories, hydropower station and concrete dam site, precast concrete factory, glass factory and etc, so that sometimes it can also be called mineral sand washer. During the sand making process, the bucket sand washer has wide application due the strong market demands of artificial sand in the construction industry.
Features of Sand Washing Equipment:
Simple structure, less loss of medium and fine sand, almost no wearing part except the screen mesh and long service life. This sand washing equipment has more obvious advantages compared with screw sand washing equipment/ washer.
Operating Principle of Artificial Sand Washer:
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder.
Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
A professional Sand Washer Supplier in Henan-Hongxing Machinery
As the professional sand washer supplier, Henan Hongxing Mining Machinery Co. , Ltd will supply you with best China sand washer with the most competitive price. If you are interested in China sand washers, please contact us.
Technical parameters of Sand washer
| Model | XS2200 | XS2600 | XS2900 | XS3500 |
| Wheel bucket diameter (mm) | 2200 | 2600 | 2900 | 3500 |
| Rotation speed (r/ min) | 1-2 | 1-2 | 0.8-1.5 | 0.8-1.2 |
| Processing capacity (t/ h) | 15-30 | 20-50 | 50-100 | 120-200 |
| Motor power (kw) | 4 | 5.5 | 7.5 | 11 |
| Total weight (kg) | 4300 | 5600 | 8100 | 9900 |
| Dimensions (L*W*H) (mm) | 3150*1910*2280 | 3520*2390*2690 | 3820*2640*3200 | 4420*2930*3800 |
