球磨机的应用：

球磨机被广泛应用于制造工业，如水泥，硅酸盐，新型建筑材料，耐火材料，化肥，黑色金属，有色金属和玻璃陶瓷等可用于干磨和湿磨用于各种矿石和其它的 可磨性物料。

球磨机介绍：

球磨机，式磨机，是用来研磨像矿石，化学品，陶瓷原料和油漆材料的圆筒形装置。 该球磨机是关键制粉设备材料已被粉碎后。 它被分成两个摩擦方式 - 干和湿。 球磨机主要由充电和放电，旋风和旋转的部件（例如主编，次要旋转齿轮，电机，电机等）。 空心轴与衬里可更换制成的钢件。 主要转动齿轮，由铸造滚轮加工，内衬耐磨衬板细耐磨性能。 该机运行稳定可靠。 球磨机绕一水平轴线，部分地填充有被粉碎的材料加研磨介质。 用于介质不同的材料，包括陶瓷球，燧石卵石和不锈钢球。

工作原理：

本机是一个骷髅图案球磨机卧式车削圆柱齿轮，由外齿轮和两个料斗车程。 所述螺旋由从供电设备的套筒轴后的物质进入所述第一料斗。 料斗内有阶梯护套或波纹护套里面钢球，将属于离心力的作用桶形转向夯硬和研磨材料。 在第一料斗的kibbling后，由单层分隔板，该材料将进入第二料斗，其具有平面刻度板与钢珠内研磨材料。 粉末材料将从栅板被排出以完成研磨。

Featurers：

1.大应用范围，结构简单，维修方便;
2.容量大，非常明显的连续工作;
3.桶衬里和研磨介质可以应用各种研磨材料;
4.安装和调整都非常方便，易于操作。

球磨机技术参数

Ball mill application:

Ball mills are widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

Ball mill introduction:

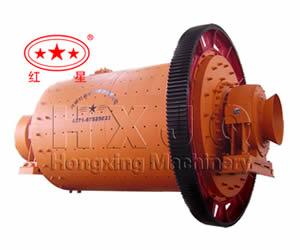

Ball mill, a type of Grinding Mill, is a cylinder-shaped device used to grind materials like ores, chemicals, ceramic raw materials and paints. The ball mills are the key milling equipment after material has been crushed. It is divided into two rubbing way- the dry and the wet. Ball mill is mainly composed of charging and discharging, cyclone and rotation parts (like redactor, minor rotation gear, motor, electric machine, etc) . Hollow axis is made of steel parts with a lining replacable. Major rotation gear, machined by rolling wheel of casting, is lined with wearing plate with fine wear-resisting property. This machine runs stably and reliably. Ball mills rotate around a horizontal axis, partially filled with the material to be ground plus the grinding medium. Different materials are used for media, including ceramic balls, flint pebbles and stainless steel balls.

Working principle:

This machine is a skeleton pattern ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to ram hard and grind material. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.

Featurers:

1. Large application range, simple structure and convenient maintenance;
2. Large capacity and very obvious continuous work;
3. Barrel lining and grinding media can apply various abrasive materials;
4. Installation and adjustment are very convenient and easy to operate.

Technical parameters of Ball mill
