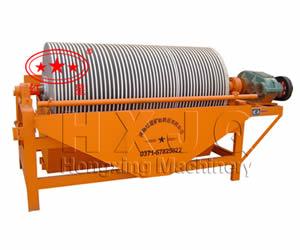

Magnetic Separator
磁选机
议价
加入意向磁分离器是被设计，以协助纯化和工艺流分离的装置。 这是用在如采矿工业，和较小的版本被用在科学实验室来处理某些类型的样品。 磁选机可以单独原料具有不同的磁刚度。 磁力和机械力作用下机的工作原理。
使用磁性分离器：
该湿式磁选机可以单独原料具有不同的磁刚度。 磁力和机械力作用下机的工作原理。
磁选机的目的是恢复铁磁材料。 磁鼓分离器是在设计和尺寸可以提供的所有应用程序的解决方案。 每一个分离器的心脏是磁系统以其独特的设计，具有效率高记录证明。
在中国磁选机在循环设计过程中血管直径小于3mm可用。 磁选机是一种高效的设备，用于处理细，无力磁性矿物，如赤铁矿，褐铁矿，钨，钛铁矿，和钽铌等
在最近几年，它也越来越在净化石英，长石和nephline更多的应用。 其磁系统是一个环形链闭合磁路与加力由铜制成的管和由水内部冷却线圈。 制成的磁性导电不锈钢槽的板被用作磁性基质。
磁选机的特点：
1）短的磁路。
2）小漏磁。
3）高磁场强度。
4）能耗低。
5）精细选矿结果。
6）结构简单，易于维护。
磁选机的技术参数
| 模型 | 壳直径（mm） | 外壳长度（mm） | 壳旋转速度（转/分） | 进料尺寸（mm） | 处理能力（T / H） | 功率（KW） |
| CTB6012 | 600 | 1200 | (35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | (35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | (35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | (35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | (35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | (28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | (20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | (20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | (20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | (18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | (18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | (18 | 3-0 | 100-180 | 7.5 |
| CTB1530 | 1500 | 3000 | (14 | 3-0 | 170-280 | 11 |
Magnetic separator is a device which is designed to assist with the purification and separation of process streams. It is used in industries like mining, and smaller versions are utilized in scientific labs to process some types of samples. The Magnetic Separator can separate raw materials with different magnetic rigidities. The machine works under the magnetic force and machine force.
Usage of Magnetic separator:
The Wet Magnetic Separator can separate raw materials with different magnetic rigidities. The machine works under the magnetic force and machine force.
Magnetic Separators are designed to recover ferromagnetic materials. The magnetic drum separators are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency.
The China Magnetic Separators are available in cyclic design with process vessel diameters smaller than 3mm. Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalum-niobium, etc.
In recent years, it is also more and more applied in purifying quartz, feldspar and nephline. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix.
Features of magnetic separator:
1) Short magnetic circuit.
2) Little magnetic flux leakage.
3) High magnetic intensity.
4) Low energy consumption.
5) Fine beneficiating results.
6) Simple structure and easy to maintain.
Technical parameters of Magnetic separator
| Model | Shell diameter (mm) | Shell length (mm) | Shell rotation speed (r/ min) | Feeding size (mm) | Processing capacity (t/ h) | Power (KW) |
| CTB6012 | 600 | 1200 | (35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | (35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | (35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | (35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | (35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | (28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | (20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | (20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | (20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | (18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | (18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | (18 | 3-0 | 100-180 | 7.5 |
| CTB1530 | 1500 | 3000 | (14 | 3-0 | 170-280 | 11 |
