Bucket Mixer
斗式搅拌机
议价
加入意向我搅拌桶的简介:
矿井搅拌桶是一种机器，可以混合使用各种原料以使其混合物，或适当的一致性，实现与气瓶或罐中旋转叶片轴。斗式搅拌机可分为多种类型，如强大的集料搅拌机、 单卧轴搅拌机、 双卧轴搅拌机。
工作原理及应用的矿物搅拌桶:
搅拌缸的工作原理是很简单的。当叶轮的旋转由电机的 V 带传动时，毒品和浆桶中的将彻底混合。这台机器是增加响应时间的药物反应和加强质量的药物反应所需的装备。
这台机器适用于选矿和也可以用在混合各种化工等行业。斗式搅拌机应用于各种金属矿石，主要用于混合之前选择浮选和混合的其他非金属矿也是适用。
混合增值税的特点:
1.混合增值税具有结构紧凑、 密封性好。一个块灰板安装在下料口，防止水雾。
2.它可以均匀地混合材料因为的扇状的搅拌叶片，可以放大的材料和媒体的接触面积。
3.它装有喷嘴，行和产量的水是非常甚至和可调。
4.矿石混合器有剩余的灰率低。流域的水桶底部的设置确保了装置在设备内部没有死角。
5.搅拌盆浴具有优势的先进性能，稳定产品质量、 成品，甚至混合快速放电。
密炼机的技术参数
| 规格 | 槽内尺寸 | 有效容积 | 混音器 | 电机 | 重量 (公斤) | |||
| 直径 (毫米) | 深度 | (m3) | 直径 (毫米) | 转速 (r / min) | 模型 | 功率 (千瓦) | ||
| (毫米) | ||||||||
| XB 750 | 750 | 750 | 0.26 | 240 | 530 | Y90S-4 | 1.1 | 550 |
| XB-1000 | 1000 | 1000 | 0.58 | 240 | 530 | Y90L-4 | 1.5 | 700 |
| XB-1200 | 1200 | 1200 | 1.14 | 400 | 320 | Y100L2-4 | 3 | 980 |
| XB-1500 | 1500 | 1500 | 2.2 | 400 | 320 | Y100L2-4 | 3 | 1330 |
| XB-2000 | 2000 | 2000 | 5.46 | 550 | 230 | Y132M2-6 | 5.5 | 2100 |
| XB-2500 | 2500 | 2500 | 11.2 | 650 | 200 | Y160L-6 | 11 | 3438 |
| XB 3000 | 3000 | 3000 | 19.1 | 700 | 210 | Y225S-8 | 18.5 | 5100 |
| XB 3500 | 3500 | 3500 | 30 | 850 | 230 | Y225M-8 | 22 | 7900 |

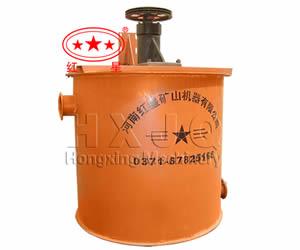

Introduction to Mine mixing bucket:
Mine mixing bucket is a machine that can mix a variety of raw materials to make them mixtures or to achieve the appropriate consistency, with a blade shaft rotating in the cylinder or tank. The bucket mixer can be divided into a variety of types, such as powerful aggregate mixer, single horizontal shaft mixer, twin-shaft mixer.
Working Principle and Application of Mineral mixing barrel:
Working principle of the mixing vat is very simple. When the impeller rotation is driven by the motor V-belt drive, drugs and slurry in the bucket will be mixed thoroughly. The machine is the necessary equipment of increasing response time of drug reactions and strengthening the quality of the drug reactions.
The machine is suitable for mineral separation and can also be used in the mixing of various chemical industries. The bucket mixer is applied in a variety of metal ores, mainly used for mixing before select flotation, and mixing of other non-metallic minerals is also applicable.
Features of mixing vat:
1. The mixing vat has compact structure and good sealing. A block ash board is installed in the feed opening to prevent the water mist.
2. It can evenly mix materials bacause of the fan-shaped mixing blade which can enlarge the contact area of materials and the media.
3. It is installed with rows of nozzles, and the yield of water is very even and adjustable.
4. The ore mixer has low rate of remaining ash. The setting of watershed at the bottom of the bucket has ensured no dead space inside the device.
5. The stirring tub has advantages of advanced performance, stable quality of the finished product, even mixing and quick discharge.
Technical parameters of Mixer
| Specification | Chute inner dimension | Effictive cubage | Mixer | Motor | Weight (kg) | |||
| Diameter (mm) | Depth | (m3) | Diameter (mm) | Rotate speed (r/ min) | Model | Power (kw) | ||
| (mm) | ||||||||
| XB-750 | 750 | 750 | 0.26 | 240 | 530 | Y90S-4 | 1.1 | 550 |
| XB-1000 | 1000 | 1000 | 0.58 | 240 | 530 | Y90L-4 | 1.5 | 700 |
| XB-1200 | 1200 | 1200 | 1.14 | 400 | 320 | Y100L2-4 | 3 | 980 |
| XB-1500 | 1500 | 1500 | 2.2 | 400 | 320 | Y100L2-4 | 3 | 1330 |
| XB-2000 | 2000 | 2000 | 5.46 | 550 | 230 | Y132M2-6 | 5.5 | 2100 |
| XB-2500 | 2500 | 2500 | 11.2 | 650 | 200 | Y160L-6 | 11 | 3438 |
| XB-3000 | 3000 | 3000 | 19.1 | 700 | 210 | Y225S-8 | 18.5 | 5100 |
| XB-3500 | 3500 | 3500 | 30 | 850 | 230 | Y225M-8 | 22 | 7900 |
