反击式破碎机

议价
加入意向红星反击式破碎机是很久以前承认在该领域。 它可以与节能高效的优势顺利运作。 这一系列破碎机可以处理具有100至500mm的边长和压缩强度可以达到350MPA的材料。 然后,材料的破碎后,有大减速比和立方形状的优势。
PF反击式破碎机
该系列产品适用于破碎的半硬质材料,并具有大吞吐量和小粒度的物料。
反击式破碎机的技术参数
| 模型 | 规格(mm ) | 打开尺寸(mm ) | 最大。 馈送侧长度(mm) | 生产能力( T / H ) | 功率(kw ) | 重量(kg ) (不带电机) | 外形尺寸(长*宽*高)(mm ) |
| PF- 1007 | Ø1000*700 | 400*730 | 300 | 30-70 | 45 | 12 | 2330*1660*2300 |
| PF- 1010 | Ø1000*1050 | 400*1080 | 350 | 50-90 | 55 | 15 | 2370*1700*2390 |
| PF- 1210 | Ø1250*1050 | 400*1080 | 350 | 70-130 | 110 | 17.7 | 2680*2160*2800 |
| PF- 1214 | Ø1250*1400 | 400*1430 | 350 | 100-180 | 132 | 22.4 | 2650*2460*2800 |
| PF- 1315 | Ø1320*1500 | 860*1520 | 500 | 130-250 | 220 | 27 | 3180*2720*2620 |
| PF- 1520 | Ø1500*2000 | 830*2040 | 700 | 300-550 | 440 | 50.6 | 3959*3564*3330 |

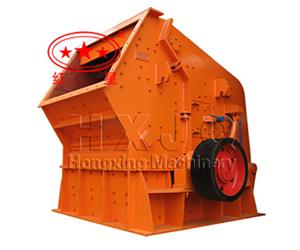

Hongxing Impact Crusher is acknowledged in its field long time ago. It can operate smoothly with the advantages of energy saving and high efficiency. This series of crushers can process the material with the side length of 100 to 500mm and the compression strength can reach 350MPA. Then have the advantages of big reduction ratio and cubic shape after the crushing of materials.
PF Impact crusher
This series of products are applicable for crushing the semi-hard materials and have big throughput and small granularity of materials.
Technical parameters of Impact crusher
| Model | Specification (mm) | Opening Size (mm) | Max. feeding side length (mm) | Capacity (t/ h) | Power (kw) | Weight (kg) (Without motor) | Dimensions (l*w*h) (mm) |
| PF-1007 | Ø1000*700 | 400*730 | 300 | 30-70 | 45 | 12 | 2330*1660*2300 |
| PF-1010 | Ø1000*1050 | 400*1080 | 350 | 50-90 | 55 | 15 | 2370*1700*2390 |
| PF-1210 | Ø1250*1050 | 400*1080 | 350 | 70-130 | 110 | 17.7 | 2680*2160*2800 |
| PF-1214 | Ø1250*1400 | 400*1430 | 350 | 100-180 | 132 | 22.4 | 2650*2460*2800 |
| PF-1315 | Ø1320*1500 | 860*1520 | 500 | 130-250 | 220 | 27 | 3180*2720*2620 |
| PF-1520 | Ø1500*2000 | 830*2040 | 700 | 300-550 | 440 | 50.6 | 3959*3564*3330 |
