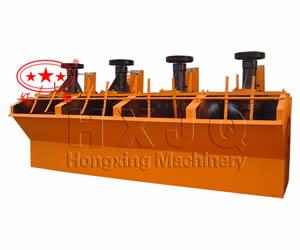

Flotation Machine
浮选机
议价
加入意向本机适用于有色金属和黑色金属和非金属，如萤石和滑石到开机前检查螺栓，并使用叶轮的手，而不是防止沉淀物增加电机的负担的分离。 要调整STRO的高度..
浮选机的说明：
矿石浮选设备适用于有色金属和黑色金属和非金属，如萤石和滑石的分离。 叶轮由V型皮带，它可以带来的离心力作用，以形成负压驱动。 一方面，吸入足够的空气混合以矿浆; 另一方面搅拌矿浆和与药物混合，以形成矿化泡沫，调整闸板以控制液体水平，使由壤土板刮下的有用的泡沫的高度。
浮选分离器中的应用：
浮选分离器，也被称为矿石浮选设备或浮选机是流行的应用程序当中铁和非铁金属，例如萤石和滑石的分离。 它有一个叶轮将在负压的形式创建离心力。
浮选分离器被广泛应用于化工，建设，冶金，机械制造，食品，粮食加工，饲料加工，环保和陶瓷。
浮选机的特点：
1，合理的设计。
2.高效率。
3.低功耗，节能环保。
4.易于维护。
5.操作简单。
XJK系列浮选机技术参数
| 模型 | XJK-0.35（3A） | XJK-0.62（4A） | XJK - 1.1（5A） | XJK - 2.8（6A） | XJK - 5.8（7A） | ||
| 有效容积（M3） | 0.35 | 0.62 | 1.1 | 2.8 | 5.8 | ||
| 生产能力（立方米/分钟） | 0.18-0.4 | 0.3-0.9 | 0.6-1.6 | 1.5-3.5 | 3-7 | ||
| 转速（转/分） | 470 | 400 | 330 | 280 | 240 | ||
| 刀片直径（mm） | 300 | 350 | 500 | 600 | 750 | ||
| 马达 | 模型 | 转子 | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y200L2-6（Y225M-6） |
| 刮痧板 | Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | ||
| 功率（kw） | 叶片马达 | 1.5 | 3 | 5.5 | 11 | 22 (30) | |
| 刮痧板电机 | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | ||
| 重量（t /单槽） | 0.43 | 0.86 | 1.38 | 2.33 | 3.533 | ||
SF型浮选机技术参数
| 模型 | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 | SF8 | |
| 槽容量（M3） | 0.37 | 0.7 | 1.2 | 2.8 | 4 | 8 | |
| 刀片直径（mm） | 300 | 350 | 450 | 550 | 650 | T60 | |
| 生产能力（M3 /分钟） | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 | 4-8 | |
| 叶片转速（立方米/分钟） | 352 | 400 | 312 | 268 | 238 | 191 | |
| 马达 | 模型 | ①Y90L-4 | ①Y100L2-4 | ①Y132M2-6 | ①Y160L-6 | ①Y180L-6 | ①Y250M-8 |
| ②Y90S-4 | ②Y90S-4 | ②Y90S-4 | ②Y90S-4 | ②Y90L-4 | ②Y100L-6 | ||
| 功率（kw） | ①1.5 | ①3 | ①5.5 | ①11 | ①15 | ①30 | |
| ②1.1 | ②1.1 | ②1.1 | ②1.1 | ②1.5 | ②1.5 | ||
| 外形尺寸（mm） | 700*700*750 | 900*820*950 | 1100*1100*1100 | 1700*1600*1150 | 1850*2050*1200 | 2200*2900*1400 | |
| 单槽重量（公斤） | 468 | 600 | 1373 | 2338 | 2660 | 4486 | |
This machine is applicable for the separation of nonferrous metal and ferrous metal and nonmetal, such as fluorite and talc to check the bolts before starting the machine and to use hand instead of impellers to prevent the sediment from adding the burden of electromotor. To adjust the height of stro..
Description of Flotation Machine:
Ore flotation equipment is applicable for the separation of nonferrous metal and ferrous metal and nonmetal, such as fluorite and talc. The impeller is driven by V-belts, which can bring the centrifugal effect to form the negative pressure. On the one hand, to inhale sufficient air to mix with ore pulp; on the other hand to stir ore pulp and mix with medication to form the mineralized froth, to adjust the height of flashboard to control the liquid level and make the useful froth scraped by loam board.
Application of Flotation Separator:
Floatation Separators, also called ore flotation equipment or flotation cells are popular for applications amongst the separation of ferrous and non ferrous metal for example fluorite and talc. It has an impeller which will create centrifugal forces in the form of negative pressure.
Floatation Separator is widely used in chemical, construct, metallurgy, machine making, food, food processing, feed processing, environmental protection and ceramics.
Features of flotation cell:
1. Reasonable design.
2. High-efficiency.
3. Low consumption, energy saving.
4. Easy to maintain.
5. Easy to operate.
Technical parameters of XJK series flotation machine
| Model | XJK-0.35 (3A) | XJK-0.62 (4A) | XJK-1.1 (5A) | XJK-2.8 (6A) | XJK-5.8 (7A) | ||
| Effective cubage (m3) | 0.35 | 0.62 | 1.1 | 2.8 | 5.8 | ||
| Production capacity (m3/ min) | 0.18-0.4 | 0.3-0.9 | 0.6-1.6 | 1.5-3.5 | 3-7 | ||
| Rotation speed (r/ min) | 470 | 400 | 330 | 280 | 240 | ||
| Blade diameter (mm) | 300 | 350 | 500 | 600 | 750 | ||
| Motor | Model | Rotor | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y200L2-6 (Y225M-6) |
| Scraping plate | Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | ||
| power (kw) | Blade Motor | 1.5 | 3 | 5.5 | 11 | 22 (30) | |
| Scraping plate Motor | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | ||
| Weight (t/ single trough) | 0.43 | 0.86 | 1.38 | 2.33 | 3.533 | ||
Technical parameters of SF flotation machine
| Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 | SF8 | |
| Trough capacity (m3) | 0.37 | 0.7 | 1.2 | 2.8 | 4 | 8 | |
| Blade diameter (mm) | 300 | 350 | 450 | 550 | 650 | T60 | |
| Production capacity (m3/min) | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 | 4-8 | |
| Blade rotation speed (m3/ min) | 352 | 400 | 312 | 268 | 238 | 191 | |
| Motor | Model | ①Y90L-4 | ①Y100L2-4 | ①Y132M2-6 | ①Y160L-6 | ①Y180L-6 | ①Y250M-8 |
| ②Y90S-4 | ②Y90S-4 | ②Y90S-4 | ②Y90S-4 | ②Y90L-4 | ②Y100L-6 | ||
| Power (kw) | ①1.5 | ①3 | ①5.5 | ①11 | ①15 | ①30 | |
| ②1.1 | ②1.1 | ②1.1 | ②1.1 | ②1.5 | ②1.5 | ||
| Dimensions (mm) | 700*700*750 | 900*820*950 | 1100*1100*1100 | 1700*1600*1150 | 1850*2050*1200 | 2200*2900*1400 | |
| Single trough weight (kg) | 468 | 600 | 1373 | 2338 | 2660 | 4486 | |
