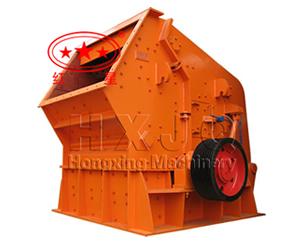

Impact Crusher
反击式破碎机
议价
加入意向简介反击式破碎机：
反击式破碎机 ，这也可以被称为冲击断路器或冲击破碎机，它主要用于破碎多种大，中，小的材料，具有边长小于500mm和耐压缩性不大于350Mpa以上。 红星 石冲击式破碎机 是一个优化的破碎机采用先进技术，在国内和国外后，它被广泛应用于建材，水电，人工砂石，高速公路等。
冲击碎石机的主要类型：
冲击碎石机是最常用的矿山破碎机在采矿业中的一个。 它的广泛应用已经长期在矿物加工工业已经认识由于矿物其处理能力高，因此，它也被称为 矿物冲击式破碎机 。 如今，对设备的交通费是非常高的，这也是非常不便移动大型设备，为了解决这一问题，移动冲击式破碎机进行了研究和开发。 红星机械是中国冲击式破碎机河南省和专业的制造和出口基地 冲击破碎机 享有在客户很高的人气。
反击式破碎机的特点：
1.跟锁套组件。
2.板锤与高铬。
3.液压或手动开启。
4.冲击片，经特殊形状。
5.破碎产品与立方体形状。
6，运行可靠。
反击式破碎机的工作原理：
当矿物冲击式破碎机工作时，电动机带动反击式破碎机具有高速的转子，上锤子安装在转子。 当物料进入该锤影响，在锤以高速冲击功能的区域，该材料连续投至冲击装置在转子的上方。 然后将物料从冲击衬里，其中被重新粉碎为音锤效应的区域反弹。 由大至小的所有材料须在冲击室反复粉碎。 这个过程不会停止，直到物料被破碎至所需尺寸，然后从破碎腔口排出。
反击式破碎机的技术参数
| 模型 | 规格（mm） | 打开尺寸（mm） | 最大。 馈送侧长度（mm） | 生产能力（T / H） | 功率（kw） | 重量（kg）（不带电机） | 外形尺寸（长*宽*高）（mm） |
| PF-1007 | Ø1000*700 | 400*730 | 300 | 30-70 | 45 | 12 | 2330*1660*2300 |
| PF-1010 | Ø1000*1050 | 400*1080 | 350 | 50-90 | 55 | 15 | 2370*1700*2390 |
| PF-1210 | Ø1250*1050 | 400*1080 | 350 | 70-130 | 110 | 17.7 | 2680*2160*2800 |
| PF-1214 | Ø1250*1400 | 400*1430 | 350 | 100-180 | 132 | 22.4 | 2650*2460*2800 |
| PF-1315 | Ø1320*1500 | 860*1520 | 500 | 130-250 | 220 | 27 | 3180*2720*2620 |
| PF-1520 | Ø1500*2000 | 830*2040 | 700 | 300-550 | 440 | 50.6 | 3959*3564*3330 |
Brief Introduction to Impact Crusher:
Impact crusher, which can also be called impact breaker or impact crushing machine which is mainly used for crushing many kinds of large, medium and small materials with side length less than 500mm and compression resistance no more than 350Mpa. Hongxingstone impact crusher is an optimized crushing machine after adopting advanced techniques at home and abroad and it is widely used in building material, hydroelectricity, artificial stone and sand, highway, etc.
Main Types of Impact Stone Crusher:
Impact stone crusher is one of the most frequently used mining crusher in the mining industry. Its wide application has long been recognized in the mineral processing industry due to its high processing capacity of the minerals, so that it is also called mineral impact crusher. Nowadays, the transportation fees of the equipment is very high and it is also very inconvenient to move the large equipment, in order to solve this problem, mobile impact crusher is researched and developed. Hongxing Machinery is a professional manufacturing and exporting base of China impact crusher in Henan Province and the impactor breaker enjoys high popularity among customers.
Features of Impact Crusher:
1. Connected with locking sleeve assembly.
2. The blow bar with high chrome.
3. Hydraulic or hand opening.
4. Impact plate with a special shape.
5. Crushed product with cubical shape.
6. Reliable operation.
Working Principle of Impact Crusher:
When the mineral impact crusher works, the motor drives the rotor of the impact crusher with high speed, on the rotor where hammers installed. When the materials get into the area which the hammers affect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being re-crushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won't stop till the material are crushed to the required size and then discharged from outlet of crushing chamber.
Technical parameters of Impact crusher
| Model | Specification (mm) | Opening Size (mm) | Max. feeding side length (mm) | Capacity (t/ h) | Power (kw) | Weight (kg) (Without motor) | Dimensions (l*w*h) (mm) |
| PF-1007 | Ø1000*700 | 400*730 | 300 | 30-70 | 45 | 12 | 2330*1660*2300 |
| PF-1010 | Ø1000*1050 | 400*1080 | 350 | 50-90 | 55 | 15 | 2370*1700*2390 |
| PF-1210 | Ø1250*1050 | 400*1080 | 350 | 70-130 | 110 | 17.7 | 2680*2160*2800 |
| PF-1214 | Ø1250*1400 | 400*1430 | 350 | 100-180 | 132 | 22.4 | 2650*2460*2800 |
| PF-1315 | Ø1320*1500 | 860*1520 | 500 | 130-250 | 220 | 27 | 3180*2720*2620 |
| PF-1520 | Ø1500*2000 | 830*2040 | 700 | 300-550 | 440 | 50.6 | 3959*3564*3330 |
