组合破碎机也被称作化合物圆锥破碎机，这是一个新的细和粗碎的产品，结合国内外类似破碎技术和优化的主要技术参数。 它主要用于破碎水泥生料和水泥熟料，为水泥厂做技改或建立一个新的水泥生产线提供了理想的细碎设备介质水泥厂。

结合式破碎机主要由传动装置，主轴，桶，上盖，底座等组成。

复合破碎机的特点

1.该机具有大减速比和可调节出料粒度的功能。 它不锤板和衬板戴影响;

2.无筛条设置，破碎高水分含量，因此大含沙量材料不易堵塞。

3.采用弹性调节机构，不能被粉碎可自动排出，不损坏设备的材料

4.水平轴承布置，使用寿命长，并能粉碎高温材料（如水泥熟料）。

5.复合式破碎机的转子块的独特设计。 当破碎物料时，转子块几乎没有磨损。 背侧空腔设置有螺钉或液压打开机构，并且可以很容易地更换磨损部件，而无需打开主设备。

工作原理的插图

材料垂直落入通过上组合破碎机的高速配给叶轮，下高速离心力的影响，并连同另一部分分流在围绕叶轮的伞形式，和因此产生的冲击和破碎。 被碰撞后的材料彼此，它们将通过多碰撞和在材料旋涡的形式叶轮与壳体之间的摩擦被压碎，该材料将直线通过底部排出，形成一个封闭的多个循环为目的 实现了由筛分设备控制要求的成品粒度。

河南红星矿山机械是一家专业制造商，专门从事复合式破碎机，复合圆锥破碎机。 可根据客户的要求和实际情况优化了设备的主要技术参数。 本机吸收的同时冲击式破碎机和锤式破碎机，它是破碎生产线和制砂生产线的优选设备的优点。

组合破碎机技术参数

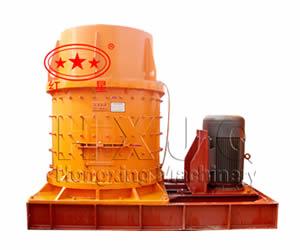

Combination crusher is also referred to compound cone crusher, which is a new fine and coarse crushing product that combined domestic and foreign similar crushing technology and optimized main technical parameters. It is mainly used in the medium cement plant for crushing cement raw material and cement clinker, which provides ideal fine crushing equipment for the cement plant to do technical transformation or build a new cement production line.

Combination crusher is mainly composed of gearing, spindle, barrel, upper cover, base and other components.

The Characteristics of Compound Crusher

1. The machine has the features of big reduction ratio and adjustable discharging size. It doesn't affect by hammer board and liner wearing;

2. No grizzly bar setting, high crushing moisture content, thus the large silt content materials is not easy to plug.

3. Adopting elastic adjusting mechanism, the materials that can't be crushed can automatic discharge and don't damage the equipment

4. Horizontal bearing arrangement, long service life, and can crush high temperature material (such as cement clinker) .

5. The rotor block of the compound crusher is uniquely designed. When crushing materials, the rotor block is hardly worn. The back cavity is provided with a screw or hydraulic opening mechanism, and it's easy to replace the wearing parts without opening the master device.

The Illustration of the Working Principle

The materials vertically falls into the high speed ration impeller through the upper combination crusher, under the impact of high-speed centrifugal force and together with another part shunting in the umbrella form around the impeller, and thus producing impact and crushing. After the materials being collided with each other, they will be crushed by multi-colliding and friction between the impeller and casing in the form of material vortex, the materials will be straightly discharged through the bottom, forming a closed multiple cycles for the purpose of achieving the required finished size that controlled by the screening equipment.

Henan Hongxing Mining Machinery is a professional manufacturer that specializes in compound crusher and compound cone crusher. We can optimize the main technical parameters of the equipment according to the customers requirements and the actual condition. This machine has absorbed the advantages of both the impact crusher and hammer crusher, which is the preferred equipment of the crushing production line and sand making production line.

Technical parameters of Combination crusher
