振动进给器（振动进料器）被用来从筒仓的大尺寸材料以及粒状物转移到接收装置均匀地，周期性地和连续地在生产流程和连续进料进入破碎机，均匀地还筛选物料在砂岩 生产线。 的振动格栅馈线被广泛用于匹配在许多行业中，包括冶金，煤矿，选矿，建材，化学，研磨等矿石振动进给器可以从资料存储饲料块或颗粒材料，以充电粉碎，过筛设备 装置均匀，连续地。 它可以实现连喂用于砂石生产线破碎机，使粗糙的筛选材料。 在破碎筛分像冶金，矿山，矿山离子，建材，化工等行业的联合作战广泛应用于

中国振动给料机工作原理：

有两个偏心轴在高速旋转时，从相反的方向，同时，因此强大的离心力而形成。 的沿振动方向将总是彼此重叠离心力的分力，则与该垂直力抵消从振动方向，然后沿单一方向的激振力被形成以驱动振动送料器沿直线。 当材料被送入进纸器，它们可能会抛出起来走动像帕拉曲线，然后落了下来。 该材料将向前移动上料机的坡面。

给灰熊的特点：

1.平稳振动
2.运行可靠
3.使用寿命长
4.低噪音
5.低功耗
6.易于调整
7.结构简单
8.安装简便
9.重量轻
10.体积小
11.维护简单

振动给料机技术参数

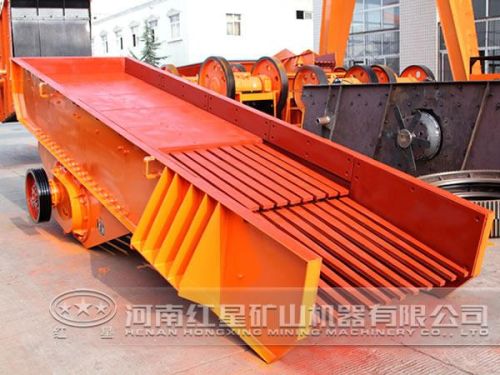

The Vibrating Feeder (Vibratory feeder) is used to transfer the large size materials and granular materials from Silo to receiving device uniformly, periodically and continuously in the production flow and to feed materials into the crusher continuously and uniformly also to screen the materials in the sandstone production line. The Vibrating grizzly Feeder is widely used to match the crushing and sieving equipments in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding, etc. Ore vibrating feeder can feed block or granule materials from the material storage to charging device evenly and continuously. It can realize even feeding for crushers in sandstone production line and make rough screening for materials. Widely applied in combined operation of crushing and screening in the industries like metallurgy, mine, mine ion, building materials, chemicals, etc.

Working Principle of China vibrating Feeder:

There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When materials are fed into the feeder, they may be thrown up and move like Para curve, then fall down. The materials will move forward on the slope surface of the feeder.

Characteristics of Feed grizzly:

1. Smooth vibration
2. Reliable operation
3. Long service life
4. Low noise
5. Low power consumption
6. Easy to adjust
7. Simple structure
8. Easy to install
9. Light weight
10. Small volume
11. Simple maintenance

Technical parameters of vibrating feeder
