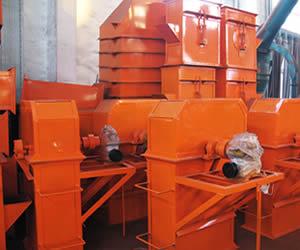

Bucket elevator
斗式提升机
议价
加入意向本机具有输送量大，提升高度高，运行稳定可靠，使用寿命长等优点。 性能和参数都符合JB3926-85垂直斗式提升“ ，其中咨询的国际标准和国外先进标准，牵引圆环链条是符合MT36-80高强度圆环链矿” 。
机适用于输送粉末，颗粒和块的材料，如煤，水泥，块，砂，粘土和矿石。 斗式提升机时，允许有特殊圆链结构武装输送材料的高温。
斗式提升机技术参数
| 规范 | 最大。 起升高度（M ） | 输送量（立方米/ N） | 桶的间距（mm ） | 电机功率（kw ） |
| 160型 | 28 | 3-8 | 500 | 3-7.5 |
| 200型 | 31.5 | 6-15 | 500 | 3-7.5 |
| 250型 | 30.16 | 10-25 | 500 | 4-11 |
| 300型 | 30.16 | 25-35 | 500 | 5.5-15 |
| 350型 | 31 | 19-40 | 600 | 7.5-18.5 |
| 400型 | 32 | 35-50 | 600 | 7.5-22 |
| 450型 | 32.7 | 42-60 | 600 | 7.5-22 |
The machine has the advantages of big conveying capacity, high hoisting height, stable and reliable running and long service life. Performance and parameter are in accord with JB3926-85 Vertical Bucket Elevator', which consults the international standard and advanced foreign standard and the towing circle chain is in accord with MT36-80 High-Strength Circle Chain for Mine'.
The machine is applicable for conveying the powder, grain and block materials, such as coal, cement, block, sand, clay and ore. The bucket elevator is allowed to convey materials with high temperature when armed with special circle chain structure.
Technical parameters of bucket elevator
| Specification | Max. lifting height (m) | Conveying capacity (m3/ n) | Pitch of buckets (mm) | Motor power (kw) |
| 160 Type | 28 | 3-8 | 500 | 3-7.5 |
| 200 Type | 31.5 | 6-15 | 500 | 3-7.5 |
| 250 Type | 30.16 | 10-25 | 500 | 4-11 |
| 300 Type | 30.16 | 25-35 | 500 | 5.5-15 |
| 350 Type | 31 | 19-40 | 600 | 7.5-18.5 |
| 400 Type | 32 | 35-50 | 600 | 7.5-22 |
| 450 Type | 32.7 | 42-60 | 600 | 7.5-22 |
