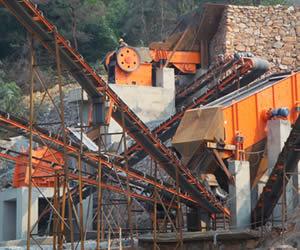

Belt Conveyor
皮带传输机
议价
加入意向我公司生产的皮带输送机具有输送量大，结构简单，维修方便，部件标准化等优点; 它被广泛应用于矿山，冶金，煤炭等行业输送大块材料和成品。 根据不同的技术要求，它可以单独使用，或者配位输送材料。 工作温度为-20 ℃到+ 40 ℃，输送物料的温度在50 ℃之间。
皮带输送机的技术参数
| 皮带宽度（mm） | 输送长度（m） 功率（kw ） | 输送速度（m / s）的 | 输送量（ T / H ） | ||
| 500 | (=12 3 | 12-20 4-5.5 | 20-30 5.5-7.5 | 1.3-1.6 | 78-191 |
| 650 | (=12 4 | 12-20 5.5 | 20-30 7.5-11 | 1.3-1.6 | 131-323 |
| 800 | (=6 4 | 6-15 5.5 | 15-30 7.5-15 | 1.3-1.6 | 278-546 |
| 1000 | (=10 5.5 | 10-20 7.5-11 | 20-40 11-22 | 1.3-2.0 | 435-853 |
| 1200 | (=10 7.5 | 10-20 11 | 20-40 15-30 | 1.3-2.0 | 655-1284 |
| 1400 | (=10 11 | 10-20 18.5 | 20-40 22-37 | 1.3-2.0 | 893-1745 |
| 1600 | (=10 15 | 10-20 22 | 20-40 30-45 | 1.3-2.0 | 1069-2195 |
附件：
1.输送量由以下条件计算出：材料密度在1.0吨/米3 -1.6t /平方米3 ; 输送带倾角小于18o 并且材料储存角为30o.
2.密度材料的小于2.5吨/米3.
3.传送长度不限于形式; 不同的长度可根据客户的要求进行生产。
The belt conveyor manufactured by our company has the advantages of big conveying capacity, simple structure, convenient maintenance and standardized parts; it is widely used in industries of mine, metallurgy and coal to convey bulky materials and finished products. According to different technical requirements, it can convey materials singly or coordinately. Working temperature is between -20℃ and +40℃ and the temperature of conveyed material is under 50℃.
Technical parameters of belt conveyor
| Belt width (mm) | Conveying length (m) Power (kw) | Conveying speed (m/ s) | Conveying amount (t/ h) | ||
| 500 | (=12 3 | 12-20 4-5.5 | 20-30 5.5-7.5 | 1.3-1.6 | 78-191 |
| 650 | (=12 4 | 12-20 5.5 | 20-30 7.5-11 | 1.3-1.6 | 131-323 |
| 800 | (=6 4 | 6-15 5.5 | 15-30 7.5-15 | 1.3-1.6 | 278-546 |
| 1000 | (=10 5.5 | 10-20 7.5-11 | 20-40 11-22 | 1.3-2.0 | 435-853 |
| 1200 | (=10 7.5 | 10-20 11 | 20-40 15-30 | 1.3-2.0 | 655-1284 |
| 1400 | (=10 11 | 10-20 18.5 | 20-40 22-37 | 1.3-2.0 | 893-1745 |
| 1600 | (=10 15 | 10-20 22 | 20-40 30-45 | 1.3-2.0 | 1069-2195 |
Accessory:
1. The conveying quantity is worked out by the following conditions: material density is between 1.0t/ m3-1.6t/ m3; conveyor obliquity is less than 18o and the material stockpile angle is 30o.
2. Density of material is less than 2.5t/ m3.
3. The conveying length is not restricted to the form; different length can be manufactured according to customers demands.
