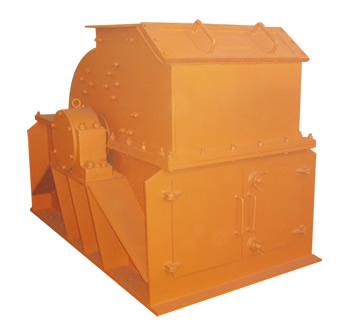

Hammer Crusher

锤式破碎机

议价

译文
原文

锤式破碎机的使用

锤式破碎机（锤磨机）适用于各种硬而脆的材料，如石灰石，煤，盐，石膏，矾，砖瓦等材料的破碎抗压强度不应超过150MPA的。锤式破碎机主要用于行业，如水泥，选煤，发电，建材及复合肥等。而锤式破碎机可粉碎物料不同大小分成相等的颗粒，这有利于下道工序。锤式破碎机的优点是具有可靠的机械结构，高生产率和良好的适用性。

锤式破碎机的工作原理

锤式破碎机的主要工作部件是转子锤。转子由主轴，圆盘，销轴和锤子。电动机带动转子在破碎腔内快速旋转。原料通过进料口进入破碎机，并欲绝，冲击，剪切和地面的高速锤体积小。

有转子下一个屏蔽板，使材料具有尺寸比筛网小将被筛选出来，其他都留给进一步锤和研磨直至达到的标准尺寸。最终产品的尺寸可以通过改变屏蔽板进行调节。转子和筛板之间的间隙，也可以根据不同的需求调整。

锤式破碎机的特点

1.高生产能力大，破碎比。

2.功耗低，粒度均匀。

3.结构简单，操作方便。

4，投资成本低，管理方便。

我们提供优良的锤式破碎机价格低

最通用的机器是用来研磨几乎所有类型的像香料，食品，化工，阿育吠陀草药，矿物质及其他各种材料的材料。

研磨采用高速回转锤子和顶/侧衬之间。一旦粒度减小低于穿孔/条型屏的底部，它将通过料斗排出。

该材料的细度可通过改变转子（锤）的速度来控制，上衬垫，锤子的数字，在屏幕上的穿孔的直径锯齿内容。如果您是我们的产品感兴趣，请与我们联系在任何时间。

技术指标	进料粒度（毫米）	出料粒度（毫米）	容量（立方米/小时）	马达功率（kw）	总重量（t）	尺寸（长宽高）（mm）
PCΦ400* 300	≤200	≤25	5-10	11	0.8	900670860
PCΦ600* 400	≤250	≤30	10-22	22	2.26	120010501200
PCΦ800* 600	≤250	≤35	18-40	55	4.8	131011801310
PCΦ1000* 800	≤350	≤35	25-50	75	5.9	160013901575
PCΦ1000* 1000	≤350	≤35	30-55	90	8	180015901775
PCΦ1250* 1250	≤350	≤35	35-65	132	14	206016001890
PCΦ1400* 1400	≤350	≤35	50-100	280	32	236518702220
PCΦ1600* 1600	≤350	≤35	100-150	480	37.5	305028502800

Usage of Hammer crusher

Hammer crusher (hammer mill) are applicable for various hard and fragile materials, such as limestone, coal, salt, gypsum, alum, brick and tile, etc. The crushing compressive strength of materials should not be in excess of 150Mpa. Hammer crusher is mainly used in industries such as cement, coal separation, electricity generation, building materials and compound fertilizer, etc. And Hammer crusher can crush materials with different sizes into equal particle, which favors the next procedure. The advantages of Hammer crusher are have reliable mechanical structure, high productivity and favorable applicability.

Operating principle of Hammer crusher

The main working part of Hammer crusher is rotors with hammer. The rotors consist of main shaft, disk, pin shaft and hammers. The motor drives the rotors to rotate quickly in the crushing cavity. Raw materials enter the crusher through the feed opening and are stricken, impacted, cut and ground by the high-speed hammer to small size.

There is a screening plate under the rotor, so that materials with size smaller than the screen mesh will be screened out and others are left to be further hammered and ground until reach the standard size. The size of the final product can be adjusted by changing the screening plate. The gap between the rotors and the screening plate can also be adjusted according to different requirement.

Hammer crusher features

1. High production capacity, high crushing ratio.

2. Low power consumption, uniform particle size.

3. Simple structure, easy to operate.

4. Low investment cost, easy management.

We offer fine Hammer crusher with low price

The most versatile machine that is used to grind almost all types of materials like Spices, Foodstuffs, Chemicals, Ayurvedic Herbs, Minerals & other miscellaneous materials.

The grinding takes place between the high speed swing hammers and top/ side liners. Once the particle size reduces below that of perforated / bar type screen at the bottom, it will be discharged through the hopper.

The fineness of the material can be controlled by changing the speed of rotor (hammer) , content of serrations on liners, Numbers of Hammers, diameter of perforations on the screen. If your are interested in our products, please contact us at any time.

Specifications	Feeding Size (mm)	Discharging size (mm)	Capacity (m3/ h)	Motor Power (kw)	Total weight (t)	Dimensions (LWH) (mm)
PCΦ400*300	≤200	≤25	5-10	11	0.8	900670860
PCΦ600*400	≤250	≤30	10-22	22	2.26	120010501200
PCΦ800*600	≤250	≤35	18-40	55	4.8	131011801310
PCΦ1000*800	≤350	≤35	25-50	75	5.9	160013901575
PCΦ1000*1000	≤350	≤35	30-55	90	8	180015901775
PCΦ1250*1250	≤350	≤35	35-65	132	14	206016001890
PCΦ1400*1400	≤350	≤35	50-100	280	32	236518702220
PCΦ1600*1600	≤350	≤35	100-150	480	37.5	305028502800
