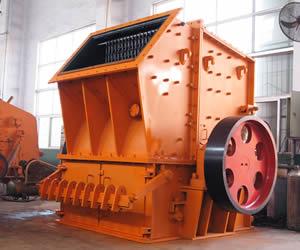

Single-stage Hammer crusher

Single-stage Hammer crusher

单段锤式破碎机

议价

加入意向

是单段锤式破碎机的优点如下:

大减速比:最大给料粒度为1.3-1.5m; 3-150mm放电的大小。

高细度放电的大小:与集料良好的形状,所述粉末材料是不超过20 %。

简单的过程:二,三段破碎被还原成单级。

经济:匹配电机的小容量大大降低了生产成本。

单段锤式破碎机技术参数

模型 类型 风轮直径 进料尺寸(mm )

产品尺寸(mm )

生产能力( T / H )

功率(kw )

DPC140

单旋翼

1400

(=800

(3-8

100-140

160-220

DPC160

1600

(=1000

150-240

280-355

DPC200

2000

(=1250

330-420

500-630

Advantages of single-stage hammer crusher are as follows:

Big reduction ratio: Maximum feeding size is 1.3-1.5m; 3-150mm of discharging size.

High fineness of discharging size: favorable shape with aggregate, the powdery material is no more than 20%.

Simple process: the two or three stage crushing is reduced into single stage.

Economical: small capacity of matched motor greatly reduces the production cost.

Technical parameters of Single-stage hammer crusher

Model Type Rotor diameter Feeding size (mm)

Product size (mm)

Capacity (t/ h)

Power (kw)

DPC140

Single rotor

1400

(=800

(3-8

100-140

160-220

DPC160

1600

(=1000

150-240

280-355

DPC200

2000

(=1250

330-420

500-630
