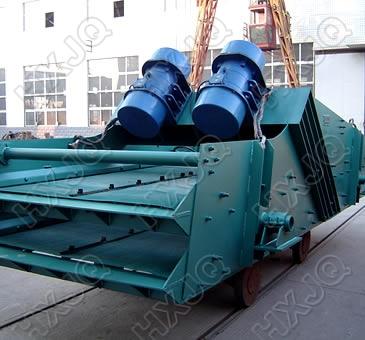

Linear Vibrating Screen
直线振动筛
议价
加入意向振动设备用于分离的东西。 它是由主框架，屏幕网页，电动马达，偏心博克，橡胶弹簧，连接器等等。 我们将根据您的需求提供合适的类型。
ZSG系列直线振动筛广泛应用于筛选干燥物料的选矿，建材，水利电力，轻工，建材等。 得天独厚的这一系列画面如下：运行稳定，能耗低，噪音低，效率高，使用寿命长等特点。
直线振动筛技术参数
| 模型 | 筛规格 | 筛层 | 网格尺寸 | 进料粒度 | 参考程序ssing能力 | 电机功率 | 总重量 | 抑振化频率uency | 双ampl- itude | 筛Obli quity | 尺寸 |
| （长*宽） （毫米） | 层 | 毫米 | 毫米 | （吨/小时） | 千瓦 | 公斤 | （赫兹） | （毫米） | ℃ | （长*宽*高）（mm ） | |
| ZSG1237 | 3700*1200 | 1 | 4-50 | (=200 | 10-100 | 5.5*2 | 2250 | 16 | 6-8 | 15 | 3800*2050*1920 |
| 2ZSG1237 | 3700*1200 | 2 | 4-50 | (=200 | 10-100 | 5.5*2 | 3345 | 16 | 6-8 | 15 | 3800*2050*2200 |
| ZSG1443 | 4300*1400 | 1 | 4-50 | (=200 | 10-150 | 5.5*2 | 4100 | 16 | 6-8 | 15 | 4500*3040*2500 |
| 2ZSG1443 | 4300*1400 | 2 | 4-50 | (=200 | 10-150 | 5.5*2 | 4900 | 16 | 6-8 | 15 | 4500*3040*2700 |
| 3ZSG1443 | 4300*1400 | 3 | 4-50 | (=200 | 10-150 | 5.5*2 | 5870 | 16 | 6-8 | 15 | 4500*3040*2820 |
| 2ZSG1548 | 4800*1500 | 2 | 5-50 | (=200 | 15-200 | 7.5*2 | 5836 | 16 | 8-10 | 15 | 4800*3140*2814 |
| 3ZSG1548 | 4800*1500 | 3 | 5-50 | (=200 | 15-200 | 7.5*2 | 6900 | 16 | 8-10 | 15 | 4799*3140*3014 |
| 2ZSG1848 | 4800*1800 | 2 | 5-50 | (=300 | 50-500 | 7.5*2 | 6489 | 16 | 8-10 | 15 | 4799*3440*2814 |
| 3ZSG1848 | 4800*1800 | 3 | 5-50 | (=300 | 50-500 | 7.5*2 | 7750 | 16 | 8-10 | 15 | 4799*3440*3014 |
| 4ZSG1848 | 4800*1800 | 4 | 5-50 | (=200 | 50-500 | 11*2 | 8300 | 16 | 8-10 | 15 | 4799*3440*3503 |
| 2ZSG1860 | 6000*1800 | 2 | 5-150 | (=300 | 80-600 | 11*2 | 9950 | 16 | 8-10 | 15 | 6000*3440*3326 |
The vibrating equipment is used to separate the stuff. It is composed of main frame, screen web, electric motor, eccentric bock, rubber spring, coupler and so on . We will offer suitable type according to your requirements.
ZSG series of linear vibrating screens are widely applied to screen dry materials in ore dressing, building materials, water and power, light industry and building materials. The advantaged of this series screen are as follows: stable operation, lower energy consumption, low noise, high efficiency and long service life.
Technical parameters of Linear vibrating screen
| Model | Sieve specifi- cations | Sieve layer | Mesh size | Feeding size | Proce ssing capacity | Motor power | Total weight | Vibra tion freq uency | Double ampl- itude | Obli quity of sieve | Dimensions |
| (L*W) (mm) | Layer | mm | mm | (t/ h) | kw | kg | (Hz) | (mm) | ℃ | (L*W*H) (mm) | |
| ZSG1237 | 3700*1200 | 1 | 4-50 | (=200 | 10-100 | 5.5*2 | 2250 | 16 | 6-8 | 15 | 3800*2050*1920 |
| 2ZSG1237 | 3700*1200 | 2 | 4-50 | (=200 | 10-100 | 5.5*2 | 3345 | 16 | 6-8 | 15 | 3800*2050*2200 |
| ZSG1443 | 4300*1400 | 1 | 4-50 | (=200 | 10-150 | 5.5*2 | 4100 | 16 | 6-8 | 15 | 4500*3040*2500 |
| 2ZSG1443 | 4300*1400 | 2 | 4-50 | (=200 | 10-150 | 5.5*2 | 4900 | 16 | 6-8 | 15 | 4500*3040*2700 |
| 3ZSG1443 | 4300*1400 | 3 | 4-50 | (=200 | 10-150 | 5.5*2 | 5870 | 16 | 6-8 | 15 | 4500*3040*2820 |
| 2ZSG1548 | 4800*1500 | 2 | 5-50 | (=200 | 15-200 | 7.5*2 | 5836 | 16 | 8-10 | 15 | 4800*3140*2814 |
| 3ZSG1548 | 4800*1500 | 3 | 5-50 | (=200 | 15-200 | 7.5*2 | 6900 | 16 | 8-10 | 15 | 4799*3140*3014 |
| 2ZSG1848 | 4800*1800 | 2 | 5-50 | (=300 | 50-500 | 7.5*2 | 6489 | 16 | 8-10 | 15 | 4799*3440*2814 |
| 3ZSG1848 | 4800*1800 | 3 | 5-50 | (=300 | 50-500 | 7.5*2 | 7750 | 16 | 8-10 | 15 | 4799*3440*3014 |
| 4ZSG1848 | 4800*1800 | 4 | 5-50 | (=200 | 50-500 | 11*2 | 8300 | 16 | 8-10 | 15 | 4799*3440*3503 |
| 2ZSG1860 | 6000*1800 | 2 | 5-150 | (=300 | 80-600 | 11*2 | 9950 | 16 | 8-10 | 15 | 6000*3440*3326 |
