加入意向烘干机概述

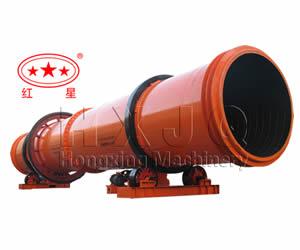

烘干机 ，这也被称为 回转烘干机, 石灰石烘干机 要么 水泥回转烘干机 ，是干不同材质的湿度或粒度在各个领域的关键设备。 根据其形状，它也被称为 转筒烘干机 。 中国是大国，制造这样的干燥机之一，因此，中国机是世界上最畅销的产品。 在中国，河南红星矿山机器有限公司是矿山机械的制造基地，我们的主要矿产品包括： 中国机 ，回转烘干机，等矿山机械。
烘干机的使用
回转烘干机 可用于干燥许多种材料，并与方便可靠操作; 因此，它已被广泛应用在选矿的产业，建材，冶金和化学。
烘干机机械特性
1.设计合理
2.高效率
3.低功耗，节能环保
4.易于维护
5.操作简单
烘干机的工作原理
材料是由皮带输送机或斗式提升机送至回转烘干机的料斗中。 筒安装与斜坡水平线。 材料输入从高侧的桶，和热空气进入从下侧，材料和热空气混合桶在一起。 材料去到下侧靠重力当枪管转动。 的桶升降机材料上下内侧上升降器以完全使材料和热空气混合，使得其干燥效率提高。
H系列回转烘干机技术参数
| 规格。/平方米 （直径*长度） | 壳牌容积 (m³) | 容量 （吨/小时） | 安装 倾角 (%) | 最高入口 气温 (℃) | 主电机 （KW） | 重量 (t) |
| Φ1.2*8.0 | 9.0 | 1.9 ~ 2.4 | 3 ~ 5 | 700 ~ 800 | 7.5 | 9 |
| Φ1.2*10 | 11.3 | 2.4 ~ 3.0 | 3 ~ 5 | 700 ~ 800 | 7.5 | 11 |
| Φ1.5*12 | 21.2 | 4.5 ~ 5.7 | 3 ~ 5 | 700 ~ 800 | 15 | 18.5 |
| Φ1.5*14 | 24.7 | 5.3 ~ 6.6 | 3 ~ 5 | 700 ~ 800 | 15 | 19.7 |
| Φ1.5*15 | 26.5 | 5.7 ~ 7.1 | 3 ~ 5 | 700 ~ 800 | 15 | 20.5 |
| Φ1.8*12 | 30.5 | 6.5 ~ 8.1 | 3 ~ 5 | 700 ~ 800 | 18.5 | 21.5 |
| Φ1.8*14 | 35.6 | 7.6 ~ 9.5 | 3 ~ 5 | 700 ~ 800 | 18.5 | 23 |
| Φ2.2*12 | 45.6 | 9.7 ~ 12.2 | 3 ~ 5 | 700 ~ 800 | 22 | 33.5 |
| Φ2.2*14 | 53.2 | 11.4 ~ 14.2 | 3 ~ 5 | 700 ~ 800 | 22 | 36 |
| Φ2.2*16 | 60.8 | 13.0 ~ 16.2 | 3 ~ 5 | 700 ~ 800 | 22 | 38 |
| Φ2.4*14 | 63.3 | 13.5 ~ 16.9 | 3 ~ 5 | 700 ~ 800 | 37 | 45 |
| Φ2.4*18 | 81.4 | 17.4 ~ 21.7 | 3 ~ 5 | 700 ~ 800 | 37 | 49 |
| Φ2.4*20 | 90.4 | 19.3 ~ 24.1 | 3 ~ 5 | 700 ~ 800 | 45 | 54 |
| Φ2.4*22 | 99.5 | 21.2 ~ 26.5 | 3 ~ 5 | 700 ~ 800 | 45 | 58 |
| Φ2.6*24 | 127.4 | 27.2 ~ 34.0 | 3 ~ 5 | 700 ~ 800 | 55 | 73 |
| Φ3.0*20 | 141.3 | 30.1 ~ 37.7 | 3 ~ 5 | 700 ~ 800 | 75 | 85 |
| Φ3.0*25 | 176.6 | 37.7 ~ 47.1 | 3 ~ 5 | 700 ~ 800 | 75 | 95 |
| Φ3.2*25 | 201 | 42.9 ~ 53.6 | 3 ~ 5 | 700 ~ 800 | 90 | 110 |
| Φ3.6*28 | 285 | 60.8 ~ 76.0 | 3 ~ 5 | 700 ~ 800 | 160 | 135 |
间接传热烘干机技术参数：
| 项目 外壳直径*壳长 | 内部外壳的直径（mm） | 内部内壳的直径（mm） | 壳长 m | 壳牌容积 m3 | 壳牌Obli-quity | 提升刀片式 | 最高进气Tem.oC | 尺寸 |
| Ø1.5*15m Ø1.5*17m Ø1.5*19m | 1500 | 500 | 15 17 19 | 20.27 22.97 25.68 | 3-5% | 升降形式 | 850 | 16.2*2.7*2.7 18.2*2.7*2.7 20.0*2.9*2.9 |
| Ø1.8*21m Ø1.8*23m Ø1.8*25m | 1800 | 650 | 21 23 25 | 35.91 39.33 42.75 | 3-5% | 升降形式 | 850 | 22.5*2.7*2.7 24.5*2.9*2.9 26.5*2.9*2.9 |
| Ø2.2*21m Ø2.2*23m Ø2.2*25m | 2200 | 800 | 21 23 25 | 58.10 63.61 69.15 | 3-5% | 升降形式 | 850 | - |
Overview of Dryer Machine
Dryer machine, which is also known as rotary dryer,limestone dryer or cement rotating dryer, is the key equipment to dry different materials with humidity or granularity in various fields. According to its shape, it is also called drum dryer. China is one of the major countries to manufacture such dryer machines, and therefore, China dryer is the best-selling product in the world. In China, Henan Hongxing Mining Machinery Co. , Ltd is the manufacturing base of mining machine, and our main mining products include China dryers, rotary dryers, and other mining machine.
Usage of Dryer Machine
Rotary dryers can be used for drying many kinds of materials and with convenient and reliable operation; therefore, it has been widely used in the industries of mineral dressing, building material, metallurgy and chemistry.
Characteristics of Dryer Machinery
1. Reasonable design
2. High-efficiency
3. Low consumption, energy saving
4. Easy to maintain
5. Easy to operate
Working Principle of Dryer Machine
Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator. The barrel is installed with slope to horizontal line. Materials enter the barrel from the higher side, and hot air enters the barrel from the lower side, materials and hot air mix together. Materials go to the lower side by gravity when the barrel rotates. Lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely so that its drying efficiency is improved.
Technical Parameters of H Series Rotary Dryer
| Spec./ m (Dia.*Length) | Shell Cubage (m³) | Capacity (t/ h) | Installation Obliquity (%) | Highest Inlet Air Temperature (℃) | Main Motor (KW) | Weight (t) |
| Φ1.2*8.0 | 9.0 | 1.9 ~ 2.4 | 3 ~ 5 | 700 ~ 800 | 7.5 | 9 |
| Φ1.2*10 | 11.3 | 2.4 ~ 3.0 | 3 ~ 5 | 700 ~ 800 | 7.5 | 11 |
| Φ1.5*12 | 21.2 | 4.5 ~ 5.7 | 3 ~ 5 | 700 ~ 800 | 15 | 18.5 |
| Φ1.5*14 | 24.7 | 5.3 ~ 6.6 | 3 ~ 5 | 700 ~ 800 | 15 | 19.7 |
| Φ1.5*15 | 26.5 | 5.7 ~ 7.1 | 3 ~ 5 | 700 ~ 800 | 15 | 20.5 |
| Φ1.8*12 | 30.5 | 6.5 ~ 8.1 | 3 ~ 5 | 700 ~ 800 | 18.5 | 21.5 |
| Φ1.8*14 | 35.6 | 7.6 ~ 9.5 | 3 ~ 5 | 700 ~ 800 | 18.5 | 23 |
| Φ2.2*12 | 45.6 | 9.7 ~ 12.2 | 3 ~ 5 | 700 ~ 800 | 22 | 33.5 |
| Φ2.2*14 | 53.2 | 11.4 ~ 14.2 | 3 ~ 5 | 700 ~ 800 | 22 | 36 |
| Φ2.2*16 | 60.8 | 13.0 ~ 16.2 | 3 ~ 5 | 700 ~ 800 | 22 | 38 |
| Φ2.4*14 | 63.3 | 13.5 ~ 16.9 | 3 ~ 5 | 700 ~ 800 | 37 | 45 |
| Φ2.4*18 | 81.4 | 17.4 ~ 21.7 | 3 ~ 5 | 700 ~ 800 | 37 | 49 |
| Φ2.4*20 | 90.4 | 19.3 ~ 24.1 | 3 ~ 5 | 700 ~ 800 | 45 | 54 |
| Φ2.4*22 | 99.5 | 21.2 ~ 26.5 | 3 ~ 5 | 700 ~ 800 | 45 | 58 |
| Φ2.6*24 | 127.4 | 27.2 ~ 34.0 | 3 ~ 5 | 700 ~ 800 | 55 | 73 |
| Φ3.0*20 | 141.3 | 30.1 ~ 37.7 | 3 ~ 5 | 700 ~ 800 | 75 | 85 |
| Φ3.0*25 | 176.6 | 37.7 ~ 47.1 | 3 ~ 5 | 700 ~ 800 | 75 | 95 |
| Φ3.2*25 | 201 | 42.9 ~ 53.6 | 3 ~ 5 | 700 ~ 800 | 90 | 110 |
| Φ3.6*28 | 285 | 60.8 ~ 76.0 | 3 ~ 5 | 700 ~ 800 | 160 | 135 |
Technical Parameters of Indirect-Heat Transfer Dryer
| Items Shell diameter *shell length | Inside diameter of outer shell (mm) | Inside diameter of inner shell (mm) | Shell length m | Shell cubage m3 | Shell Obli-quity | Lifting blade form | Highest inlet air Tem.oC | Dimensions |
| Ø1.5*15m Ø1.5*17m Ø1.5*19m | 1500 | 500 | 15 17 19 | 20.27 22.97 25.68 | 3-5% | Lifting form | 850 | 16.2*2.7*2.7 18.2*2.7*2.7 20.0*2.9*2.9 |
| Ø1.8*21m Ø1.8*23m Ø1.8*25m | 1800 | 650 | 21 23 25 | 35.91 39.33 42.75 | 3-5% | Lifting form | 850 | 22.5*2.7*2.7 24.5*2.9*2.9 26.5*2.9*2.9 |
| Ø2.2*21m Ø2.2*23m Ø2.2*25m | 2200 | 800 | 21 23 25 | 58.10 63.61 69.15 | 3-5% | Lifting form | 850 | - |
