laser light source
激光光源
议价
加入意向TC3109光光源可以提供1至4个输出波长以满足特定要求。
包括650nm的红色光源和1310/1550波长单模光纤或
根据客户的需要的850 / 1300nm的波长为多模光纤，以及其他波长的光。
连同JW3208光功率计，它是用于光纤网络的表征一个完美的解决方案。
特征
l提供1〜4输出波长可根据客户的需求选配
升CW，2HZ调制输出在650nm，和CW，270HZ，1KHz的，2KHz的
调制输出其他波长。
输出功率的升高稳定性
●可靠的输出波长
升背光液晶显示屏支持夜间操作
升紧凑的尺寸和体面的外观
升超大液晶屏，操作方便
升替代10分钟自动关机功能节省电池寿命
应用
维护电信
维护CATV
光纤实验室测试
其他光纤测量
技术指标
| 类型 | TC3109 | |||
| 波长（纳米） | 650 | 1310/1550 | 850/1300 | 850/ |
| 发射器类型 | FP-LD，LED或其他请注明 | |||
| 典型输出功率（dBm） | 0 | -7dBm的LD，-20dBm的LED | ||
| 光谱宽度（NM） | 1. ≤10 | |||
| 输出稳定性 | 值为±0.05dB / 15分钟; ±0.1分贝/ 8小时 | |||
| 调制频率 | CW，2HZ | CW，270HZ，1KHz的，2KHz的 | ||
| 光连接器 | FC /通用适配器 | FC / PC | ||
| 电源 | 碱性电池（3节AA 1.5V电池） | |||
| 电池工作时间（小时） | 45 | |||
| 工作温度（℃） | -10~+60 | |||
| 存储温度（℃） | -25~+70 | |||
| 外形尺寸（mm） | 175x82x33 | |||
| 重量（g） | 295 | |||
| Joinwit建议 | ||||
| TC3109手持式光源是专为TC3208光功率计为最佳使用状态 | ||||
标准封装
| 模型 | INCLUDES |
| AllTC3109模型 | TC3109光光源，橡胶保护套。 |

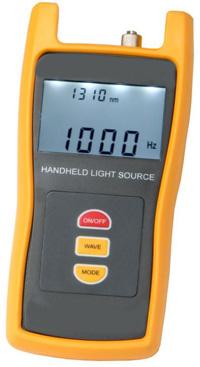

TC3109 optical light source can provide 1 to 4 output wavelengths to meet specific requirements.
including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or
the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer needs.
Together with the JW3208 optical power meter, it is a perfect solution for the fiber optic network characterization.
Features
l Provides 1~4 output wavelengths which can be optional according to customer's needs
l CW, 2Hz modulation output at 650nm, and CW, 270Hz, 1KHz, 2KHz
modulation output at other wavelengths.
l High stability of the output power
l Stable output wavelength
l Backlight LCD display supports night operation
l Compact size and decent appearance
l Large LCD, easy operation
l Alternative 10 minutes Auto-off function conserving battery life
Applications
Maintenance in Telecom
Maintenance CATV
Fiber Optic Lab Testing
Other Fiber Optic Measurements
Specifications
| Type | TC3109 | |||
| Wavelengths (nm) | 650 | 1310/1550 | 850/1300 | 850/ |
| Emitter Type | FP-LD, LED or others please specify | |||
| Typical Output Power (dBm) | 0 | -7dBm for LD, -20dBm for LED | ||
| Spectral Width (nm) | 1. ≤10 | |||
| Output Stability | ±0.05dB/ 15mins; ±0.1dB/ 8hours | |||
| Modulation Frequencies | CW, 2Hz | CW, 270Hz, 1KHz, 2KHz | ||
| Optical Connector | FC/ universal adaptor | FC/ PC | ||
| Power Supply | Alkaline Battery (3 AA 1.5V batteries) | |||
| Battery Operating Time (hour) | 45 | |||
| Operating Temperature (℃) | -10~+60 | |||
| Storage Temperature (℃) | -25~+70 | |||
| Dimension (mm) | 175x82x33 | |||
| Weight (g) | 295 | |||
| Joinwit Recommendation | ||||
| TC3109 Handheld Light Source is designed for optimal use with TC3208 Optical Power Meter for | ||||
Standard Packages
| MODEL | INCLUDES |
| AllTC3109 Models | TC3109 Optical Light Source, Protective Rubber Boot. |
