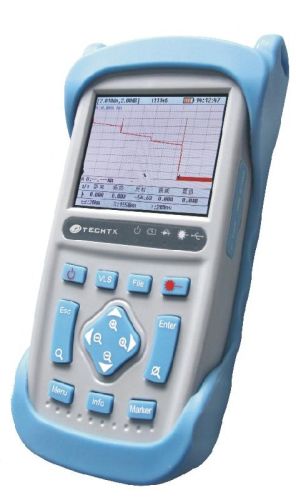

OTDR TC-300
OTDR TC-300
议价
加入意向简单的介绍
如光纤在现代电信起着越来越重要的作用，并
CATV网络中，要求的光纤链路的构造，测试和维护也变得更加突出。 techtx“
主要特点
手持式设计，小巧轻便; 抗震，防震和适当的
野外作业。
独特的热键设计
开始在10秒内，并立即测量
窄事件盲区，光纤跳线的简单测试
自动和手动测试功能
高容量SD卡
低功耗设计，适用于AA型碱性电池
简单，快速，无需复杂的培训
VFL（可视故障定位）功能
多个光输出，FC / ST / SC可交换
OTDR查看器软件进行数据分析
光报警功能，防止设备的破损由信号光
应用
电信建设和维护
有线电视建设和维护
综合布线系统
光器件生产与研究
其他光导纤维项目
技术指标
| 性能 | ||
| 类型 | TC-300A | |
| 波长 | 1310/1550 | |
| 光纤类型 | 单模光纤 | |
| 动态范围 | 32 /32分贝 | |
| 脉冲持续时间 | 自动/ 20/50/100 / 五百分之二百/ 1000 / 2500ns / 5us的/ 10us的/ 20US | |
| 最大测量距离 | 120公里 | |
| 盲区 | 3米（反射事件） （10米（非反射事件） | |
| 损耗测量精度 | ±0.1分贝/分贝 | |
| 数据存储 | 1000个曲线 | |
| 电源 | 5号AA电池或兼容的锂电池 | |
| 工作时间 | ≥6小时 | |
| VFL | 650nm的CW / 1Hz的 | |
| 显示面板 | 320 * 240（3.5 TFT彩色屏幕） | |
| 重量 | 750g | |
| 工作温度 | 0℃~+50℃ | |
| 储存温度 | -20℃~+60℃ | |
| 工作湿度 | 0〜90％相对湿度非冷凝 | |
| 光纤连接器 | FC / PC / APC | |
时域反射TC300 OTDR是一款独特的产品主要设计用于
建设和维护电信和有线电视网络。
TC300可广泛应用于工程建设
维护测试和相关系统的所有光纤的紧急抢修。 比较
用常规的OTDR，TC-300是更紧凑的尺寸和更容易现场使用。
Brief Introduction
As fiber optics plays more and more important role in modern telecommunication and
CATV networks, the requirements to the construction , test and maintenance of fiber optics links also become more prominent. techtx'
MainFeatures
Handheld design, compact and lightweight; Antiseismic, shockproof and appropriate
for field operation.
Unique hotkey design
Starting in 10 seconds and measuring immediately
Narrow event blind zone, simple test of fiber patchcord
Automatic and manual test function
High Capacity SD card
Low-power design, suitable for AA-size alkaline batteries
Simple, fast, without complex training
VFL (Visual Fault Location) function
Multiple light outputs, FC / ST / SC exchangeable
OTDR Viewer software for data analysis
Light alarm function, preventing the device from being damaged by the signal light
Applications
Telecommunication construction and maintenance
CATV construction and maintenance
Cabling System
Optical components production and research
Other fiber-optics projects
Specifications
| Performance | ||
| Type | TC-300A | |
| Wavelength | 1310/1550nm | |
| Fiber Type | Single mode fibers | |
| Dynamic Range | 32/32dB | |
| Pulse Duration | Auto/ 20/50/100/ 200/500/1000/2500ns/ 5us/ 10us/ 20us | |
| Max Measuring Distance | 120km | |
| Dead Zone | 3m (Reflective Event) (10m (Non-reflective Event) | |
| Loss Measuring Accuracy | ±0.1dB/ dB | |
| Data storage | 1000 pcs curves | |
| Power supply | 5 AA Batteries or lithium cell compatible | |
| Working time | ≥6 hours | |
| VFL | 650nm CW/ 1Hz | |
| Display panel | 320*240 (3.5 TFT color screen) | |
| Weight | 750g | |
| Operating Temperature | 0℃~+50℃ | |
| Storage Temperature | -20℃~+60℃ | |
| Operating Humidity | 0~90% R.H. non-condensing | |
| Fiber Connector | FC/ PC/ APC | |
time domain reflector TC300 OTDR is a unique product mainly designed for
construction and maintenance of telecommunication and CATV networks.
TC300 can be widely used in engineering construction
maintenance test and emergency repair of all fiber optics related systems. Comparing
with a regular OTDR, TC-300 is more compact in size and easier for field use.
