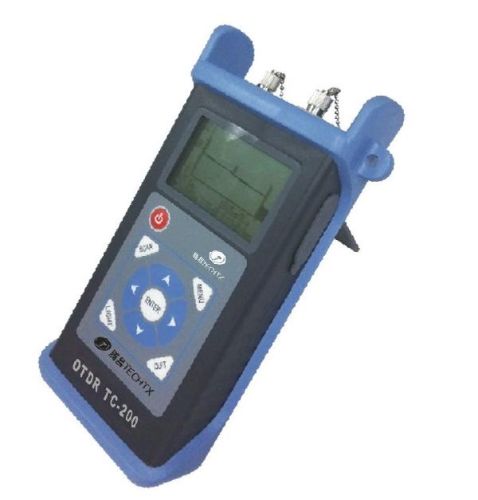

OTDR TC-200
OTDR TC-200
议价
加入意向OTDR TC-200简介
TC-200是专门为基层项目人员的日常工作，日常维护的光纤线路，维修和设计故障排除。
TC200 OTDR原理，通过测量光散射信号，独特的
分析算法相结合给定的直接光纤链路事件类型，位置。
和信息的损失，并测试智能，准确，简单操作，快。
无需复杂的培训，基层工程技术人员，特别适合使用。
CT200手持式设计，小巧轻便，便于携带; 活动信息
并通过LCD显示一个简单的曲线，和数据存储功能。
通过USB接口，测试数据可上传至PC图形显示
光纤链路损耗曲线，方便后期处理，文件和打印。 一个2.5mm的通用连接器的设计，以满足
的各种连接器的需求
类型的应用程序。
测试的智能，精确
简单，快捷的操作
手持式设计，小巧轻便
无线TH可视故障定位仪
2.5mm通用接口设计
TC200还增加了一个可视故障定位测试功能。 从可见红光发射
该光纤弯曲较严重的位置和覆盖层断点或裸
光纤在注射，并且也可以从不良连接接缝发射。
可以直观地定位光纤故障。
特征
测试的智能，准确，直接的光纤链路定事件类型，位置和损耗信息
简单，快速，无需复杂的培训，适用于野外作业
事件盲区小于5m
衰减盲区小于10m
基于USB的OTDR，L00记录数据存储
650nm的可见光输出
手持式设计，小巧轻便
抗震，防震保护
2.5mm通用连接器
低功耗设计，适用于AA型碱性电池
自动关机省电设计
应用
电信建设和维护
综合布线系统
其他光导纤维项目
有线电视建设和维护
光器件生产与研究
技术指标
| 性能 | |
| 可用波长 | 155013101310/1550 |
| 传感光纤 | 单模光纤 |
| 探测器类型 | 砷化铟镓 |
| 脉冲持续时间 | Auto20 / 50％/ 100/200/500 / 1000ns |
| 最大。 测量距离 | 60公里 |
| 盲区 | （5米（反射事件） （10米（非反射事件） |
| 可见光输出 | 650纳米（CW / 1HZ） |
| 电源 | 1.5V电池* 3 |
| 数据存储 | 100条记录 |
| 特征 | |
| 光纤连接器 | FC / APC |
| 工作温度 | 0℃~+50℃ |
| 储存温度 | -20℃~+60℃ |
| 工作湿度 | 0〜90％相对湿度无冷凝 |
| 外形尺寸（长*宽*高） | 210 * 120 *54毫米 |
| 重量 | 500g |
OTDR TC-200 Brief Introduction
Tc-200 is a specially for grassroots project personnel the day-to-day maintenance of fiber optic lines, troubleshooting of repair and design.
Tc200 OTDR principle, by measuring the optical backscatter signal, the unique
combination of analysis algorithms given direct fiber link event type, location.
and the loss of information, and test smart, accurate, simple to operate, fast.
without complex training, grassroots engineering staff is particularly suitable for use.
CT200 handheld design, compact and lightweight, easy to carry; event information
and a simple curve through the LCD display, and data storage capabilities.
Through the USB interface, the test data can be uploaded to a PC graphical display
of fiber link loss curves, easy post-processing, filing and printing. A 2.5mm universal connector design to meet
the needs of a variety of connector
types of applications.
Test smart, accurate
Simple, fast operation
Hand-held design, compact and lightweight
Wi th visual Fault Locator
2.5mm universal interface design
Tc200 also adds a visible fault location test function. Visible red light emitted from
the optical fiber is bent more serious position and the cover layer breakpoint or bare
optical fiber at the injection, and can also be emitted from the poor connection joints.
may intuitively locate fiber failure.
Features
Test smart, accurate, and direct fiber link given event type, location and loss information
Simple, fast, without complex training, suitable for field operation
Event dead zone less than 5m
Attenuation dead zone less than 10m
USB-based OTDR, l00 records data storage
650nm visible light output
Hand-held design, compact and lightweight
Anti-seismic, shockproof protective
2.5mm universal connector
Low-power design, suitable for AA-size alkaline batteries
Auto shutdown power saving design
Applications
Telecommunication construction and maintenance
Cabling System
Other fiber-optics projects
CATV construction and maintenance
Optical components production and research
Specifications
| Performance | |
| Available wavelength | 155013101310/1550nm |
| Sensing Fiber | Single mode fibers |
| Detector Type | InGaAs |
| Pulse Duration | Auto20/50/100/200/500/1000ns |
| Max. Measurement Distance | 60km |
| Dead Zone | (5m (Reflective Event) (10m (Non-reflective Event) |
| Visual Light Output | 650nm (CW/ 1HZ) |
| Power Supply | 1.5V Battery*3 |
| Data storage | 100 records |
| Features | |
| Fiber Connector | FC/ APC |
| Operating Temperature | 0℃~+50℃ |
| Storage Temperature | -20℃~+60℃ |
| Operating Humidity | 0~90% R.H. Non-condensing |
| Dimensions (L*W*H) | 210*120*54mm |
| Weight | 500g |
