optical light source
光的光源
议价
加入意向光的光源可以提供 1 到 4 的输出波长，以满足特定的要求，包括
650nm 红源和 1310年/1550nm 波长单模光纤或 850/1300nm
多模光纤，以及根据客户需要其他波长的波长。在一起
才有 RY-PM-300 光功率计，光纤光纤网络鉴定一个完美的解决方案。
功能
提供 1 ~ 4 的输出波长可根据客户需要可选
CW，2 Hz 调制输出在 650nm 和 CW，270 Hz，1 千赫，2 千赫
在其他波长输出的调制。
高稳定的输出功率
稳定的输出波长
背光液晶显示支持夜间作业
紧凑的尺寸和体面的外观
大液晶屏，操作方便
应用程序
中电信的维护
有线电视维修
测试实验室的光学纤维
其他纤维光学测量
规格
| 类型 | 6300A | 6300B | 6300C | 6300D | 6300E |
| 波长 (nm) | 1310/1550nm | 1310/1490/ 1550nm | 850/1310/ 1550nm | 1300/1310/ 1550nm | 850/1300/ 1310/1550nm |
| 发射器类型 | FP-LD、 LED 或其他人请指定 | ||||
| 输出功率 (dBm) | -6 ~-7 (1310年/1550nm)，) 0 (650nm) | ||||
| 谱线宽度 (nm) |
| ||||
| 输出的稳定性 | + 0.05dB / 15 分钟;+ 有 0.1 d b / 8 小时 | ||||
| 调制 | CW / 2 (650nm) / 270，1k、 2k (1310nm / 1550nm) | ||||
| 光纤连接器 | FC / PC (可互换的 FC / SC / ST 连接器可以是可选的) | ||||
| 电源 | 碱性电池 (3 AA 1.5 v 电池) | ||||
| 电池操作 | 45 | ||||
| 经营 | _ 10 ~ +60 | ||||
| 存储温度 (oC) | _ 25 ~ +70 | ||||
| 尺寸 (毫米) | 172*82*33 | ||||
| 重量 | 295g | ||||
| 建议 | RY LS300 手持式光源设计用于最优 RY-PM-300 光功率计测量两个单模式光学损耗和 | ||||

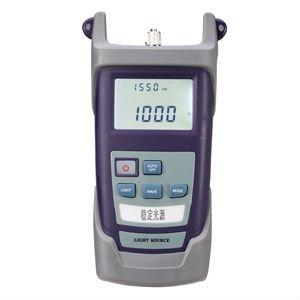

optical light source can provide 1 to 4 output wavelengths to meet specific requirements, including
the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm
wavelengths for multimode fiber, as well as other wavelengths according to customer needs. Together
with the RY-PM-300 optical power meter, it is a perfect solution for the fiber optic network characterization.
Features
Provides 1~4 output wavelengths which can be optional according to customers needs
CW, 2Hz modulation output at 650nm, and CW, 270Hz, 1KHz, 2KHz
modulation output at other wavelengths.
High stability of the output power
Stable output wavelength
Backlight LCD display supports night operation
Compact size and decent appearance
Large LCD, easy operation
Applications
Maintenance in Telecom
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements
Specifications
| Type | 6300A | 6300B | 6300C | 6300D | 6300E |
| Wavelengths (nm) | 1310/1550nm | 1310/1490/ 1550nm | 850/1310/ 1550nm | 1300/1310/ 1550nm | 850/1300/ 1310/1550nm |
| Emitter Type | FP-LD, LED or others please specify | ||||
| Output Power (dBm) | -6~-7 (1310/1550nm) ,) 0 (650nm) | ||||
| Spectral Width (nm) |
| ||||
| Output Stability | +0.05dB/ 15mins; +0.1dB/ 8hours | ||||
| Modulation | CW / 2 (650nm) / 270, 1K, 2K (1310nm/ 1550nm) | ||||
| Optical Connector | FC/ PC ( Interchangeable FC/ SC/ ST connectors can be optional) | ||||
| Power Supply | Alkaline Battery (3 AA 1.5V batteries) | ||||
| Battery Operating | 45 | ||||
| Operating | _ 10 ~ +60 | ||||
| Storage Temperature (oC) | _ 25 ~ +70 | ||||
| Dimension (mm) | 172*82*33 | ||||
| Weight | 295g | ||||
| Recommendation | RY-LS300 Handheld Light Source is designed for optimal use with RY-PM-300 Optical Power Meter for measuring optical loss on both sigle mode and | ||||
