产品描述

Jhenten的液体袋滤有效地从工艺液体，例如水，饮料，化学和石油产品去除污垢，管垢和其他污染物。 袋式过滤器可以用标准＃ 1，＃2中使用， @ 3，＃4大小袋或标准多孔筐作为一个过滤器。 网眼内衬的篮子也可作为可选功能有效过滤面积相当大，实现更高效的滤波效果; 吊环螺栓封闭系统，用户友好，经济高效袋式过滤器为大批量，多应用和流程。 马克斯。 流量单个单元是从90立方米/小时至1080立方米/小时。

技术参数：

马斯操作压力： 1.0兆帕

马斯操作温度： 110℃

在焊接压力公差： 0.85

腐蚀酸： 0毫米

应用

• 葡萄酒
• 果汁
• 食品与饮料
• 工艺水
• 医药液体
• 生物技术和实验室
• 医疗及医疗器械
• 化工和油漆工业过滤器

Product Description

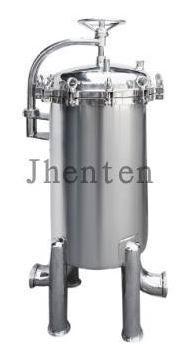

Jhenten's Liquid Bag Filter effectively removes dirt, pipe scale, and other contaminants from process liquids such as water, beverage, chemical and petroleum products. Bag filter can be used with the standard #1, #2, @3, #4 size bags or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather big, achieving more efficient filtering result; Eye Bolt Closure System-The user friendly, cost effective bag filter housing for high volume, multiple applications and processes. The Max. flow of single unit are from 90 Cubic m/ h to 1080 cubic m/ h.

Technical Parameters

Mas Operate pressure: 1.0 MPa

Mas Operate temperature: 110oC

Pressure tolerance on weld : 0.85

Corrosion by acid: 0 mm

Applications

• Wine
• Juices
• Food &Beverage
• Process Water
• Pharmaceutical Liquids
• Biotechnology & Laboratory
• Medical &Medical Device
• Chemical And Painting Industrial Filtration
