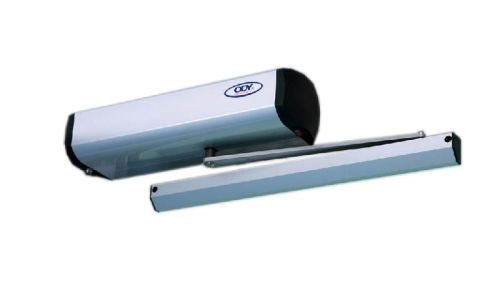

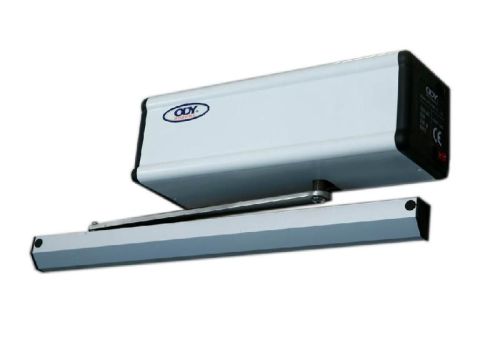

自动平开门更紧密SW-80

议价
加入意向自动开门机
1.按下与开放
2.自动反向
3.模块化设计,便于reaplce
3.安装方便
自动开门机
| 门样式 | 单叶或双叶 |
| 门宽 | 500毫米〜1200毫米 |
| 门重 | 180kgs.max |
| 电源 | 220VAC或110VAC,50 / 60Hz的 |
| 电压输出 | 15V DC,24V DC |
无刷电机 | 55W,24V DC |
| 外形尺寸(mm) | 428x114x85 |
| 净重(公斤) | 7 |
| 打开速度和关闭速度 | 3~10S |
| 开启保持时间(可调) | 1~10S |
| 推及开合角度可调节 | 3~10 |
先进的软件
1.按下并开启功能(可关闭,如果需要的话,比如刮风环境)。
2.自动反向当障碍物或者在关闭方向或开启方向遇到。
3.各种开放模式:遥控器,读卡器,运动传感器,开启按钮等。
4.有接口连接火灾报警信号,备用电池和电锁。
通过调节,如果需要5.数字改变某些参数。
可调参数
1.开启速度和关闭速度:3秒〜10秒
2.开启保持时间可调:1-10s
3.爬行速度打开可调
4.爬行速度闭合可调
5.按与开角可调
结构简单可靠
1.它包括一些模块,如控制器板,马达,更换方便的。
2.电机传输是简单和稳定的。 采用蜗轮,蜗杆齿轮减速机,超静,无磨损。
3.这是很容易打开和关闭的盖检查。
4.安装方便(第一,安装一个在墙上安装板,然后用螺丝在安装板上安装全自动开门机)
5.滑动臂铰接两个可用的手臂,可以内部或外部打开。
6.卓越的可靠性,超过200多万次的耐久性测试。
7.应用:医院,写字楼,宾馆,饭店,与老人和残疾人士的地方。
Automatic Door opener
1. Push & open
2. Auto reverse
3. Module design, easy to reaplce
3. Easy installation
Automatic Door Opener
| Door style | single leaf or double leaf |
| Door width | 500mm~1200mm |
| Door weight | 180kgs.max |
| Power supply | 220VAC or 110VAC, 50/60Hz |
| Voltage output | 15V DC, 24V DC |
Brushless Motor | 55W, 24V DC |
| Dimensions (mm) | 428x114x85 |
| Net weight (kg) | 7 |
| Opening speed and closing speed | 3~10S |
| Hold-Open time (adjustable) | 1~10S |
| Push & open angle adjustable | 3~10 |
Advanced software
1. Push & open function (can be turn off if needed, such as windy environment) .
2. Auto reverse when an obstacle is encountered either in closing direction or opening direction.
3. Various opening modes: remote control, card reader, motion sensor, opening button etc.
4. Having interfaces to connect fire alarm signal, backup battery and electric lock.
5. Digitally change some parameters if needed, by adjustor.
Adjustable parameters
1. Opening speed and closing speed: 3s~10s
2. Hold-Open time adjustable: 1-10s
3. Creep speed for opening adjustable
4. Creep speed for closing adjustable
5. Push & open angle adjustable
Simple and reliable structure
1. It consists of some modules, such as controller board, motor, easy to replace.
2. The motor transmission is simple and stable. Adopting worm and worm gear decelerator, super silence, no abrasion.
3. It is easy to open and close the cover for check.
4. Easy installation (first, install one mount plate on the wall, then use the screw to install whole automatic door opener on the mount plate)
5. Sliding arm and articulated arm both available, can open inside or outside.
6. Excellent reliability, over more than 2 million cycles durability tests.
7. Application: hospitals, office buildings, hotels and restaurants, places with the old and the disabled.
