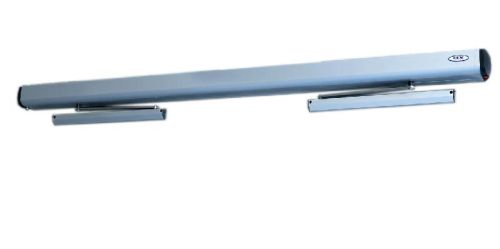

Automatic Swing Door Closer SW-160
自动平开门更紧密SW-160
议价
加入意向自动摇摆开门机
1.不同长度可
2.双叶
3.安装方便
4.模块化设计，便于维修
自动摇摆开门机
| 门样式 | 单叶或双叶 |
| 门宽 | 500毫米〜1200毫米 |
| 门重 | 180kgs.max |
| 电源 | 220VAC或110VAC，50 / 60Hz的 |
| 电压输出 | 15V DC，24V DC |
无刷电机 | 55W，24V DC |
| 外形尺寸（mm） | 428x114x85 |
| 净重（公斤） | 7 |
| 打开速度和关闭速度 | 3~10S |
| 开启保持时间（可调） | 1~10S |
| 推及开合角度可调节 | 3~10 |
1.自动反向当障碍物或者在关闭方向或开启方向遇到。
2.采用蜗轮，蜗杆齿轮减速机，超静，无磨损，寿命长。
3.滑臂和铰接两种可用手臂，可以内部或外部打开。
4.各种开放模式：遥控器，读卡器，运动传感器，开启按钮等。
5.卓越的可靠性，超过200多万次的耐久性测试。
通过调节如果需要6.数字设定参数。
7.应用：医院，写字楼，宾馆，饭店，与老人和残疾人士的地方。
automatic swing door opener
1. Different length available
2. Double leaf
3. Easy installation
4. Module design, easy repair
automatic swing door opener
| Door style | single leaf or double leaf |
| Door width | 500mm~1200mm |
| Door weight | 180kgs.max |
| Power supply | 220VAC or 110VAC, 50/60Hz |
| Voltage output | 15V DC, 24V DC |
Brushless Motor | 55W, 24V DC |
| Dimensions (mm) | 428x114x85 |
| Net weight (kg) | 7 |
| Opening speed and closing speed | 3~10S |
| Hold-Open time (adjustable) | 1~10S |
| Push & open angle adjustable | 3~10 |
1. Auto reverse when an obstacle is encountered either in closing direction or opening direction.
2. Adopting worm and worm gear decelerator, super silence, no abrasion, long life.
3. Sliding arm and articulated arm both available, can open inside or outside.
4. Various opening modes: remote control, card reader, motion sensor, opening button etc.
5. Excellent reliability, over more than 2 million cycles durability tests.
6. Digitally change some parameters if needed, by adjustor.
7. Application: hospitals, office buildings, hotels and restaurants, places with the old and the disabled.
