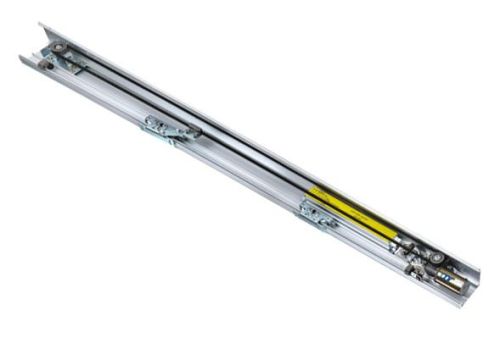

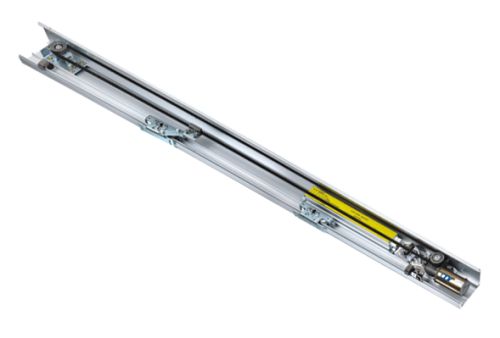

Automatic Sliding Door Operator LT-150

Automatic Sliding Door Operator LT-150

自动门操作员LT-150

议价

加入意向

自动玻璃移门
1. 100W电机,重型门
2.自动反向
3. CE认证

自动玻璃移门

门样式 单叶或双叶
门宽 650毫米〜1300毫米
门weight.max 200公斤200kgsX2
电源 90VAC〜250VAC,50 / 60Hz的
电压输出 12V DC,24V DC

无刷电机

100W,24V DC
打开速度和关闭速度 250〜550毫米/ S

爬行速度

20〜百毫米/ S
手动开启力 (50N
保持闭力 150N(F(250N
保持开放时间 2-20s(可调)

1. LT-150可适应大范围的不同的门和客户的要求。
2.安装方便
在安装过程中操作员被编程以符合客户的具体要求。
3.安全
当一个障碍关向中遇到自动安全自动反转。
安全可以通过使用安全光束传感器得到进一步改善。 在人或物体
门口被检测和门,然后从闭合防止直到它是安全的
就这么做。
4.紧急
在LT-150可以自动打开或关闭车门(使用电池组电量耗尽)
-IN的一个电源故障的情况。 在LT-190A也可与消防接口
警报。
5.自我监控
微处理器具有检测到任何一个整体自监视装置
干扰或在门操作错误的信号,并采取必要措施,以确保
一个安全操作。

automatic glass sliding door
1. 100W motor, for heavy-duty doors
2. Auto reverse
3. CE certificated

automatic glass sliding door

Door stylesingle leaf or double leaf
Door width650mm~1300mm
Door weight.max200kgs 200kgsX2
Power supply90VAC~250VAC, 50/60Hz
Voltage output12V DC, 24V DC

Brushless Motor

100W, 24V DC
Opening speed and closing speed250~550mm/ S

Creep speed

20~100mm/ S
Manual opening Force (50N
Hold-Close Force150N (f (250N
Hold-open time2-20s (adjustable)

1. LT-150 can be adapted to a wide range of different door and customer requirements.
2. Easy installation
During the installation the operator is programmed to comply with the customers specific requirements.
3. Safety
Automatic safety auto reverse when an obstacle is encountered in closing direction.
The safety can be further improved by using safety beam sensors. People or objects in
the doorway are detected and the door is then prevented from closing until it is safe to
do so.
4. Emergency
The LT-150 can automatically opens or closes the doors (using battery pack up)
–in the event of a power failure. The LT-190A can also be interfaced with fire
alarms.
5. Self-monitoring
The microprocessor has an integral self-monitoring device which detects any
interference or faulty signals in door operation and takes necessary measures to ensure
a safe operation.
