Telescopic Door Operator LT-190CD
伸缩门机LT-190CD
议价
加入意向伸缩门开门机
1. 6.3长期跟踪，4移动门扇
2.自动门，自动反向
3. CE certifacated
伸缩门开门机
| 门样式 | 2叶或4leaf |
| 门宽 | 650毫米〜1250毫米 |
| 门weight.max | 130x2kgs 130kgx4 |
| 电源 | 90VAC〜250VAC，50 / 60Hz的 |
| 电压输出 | 12V DC，24V DC |
无刷电机 | 100W，24V DC |
| 打开速度和关闭速度 | 250〜550毫米/ S |
爬行速度 | 20〜百毫米/ S |
| 手动开启力 | (7N |
| 保持闭力 | 150N（F（250N |
| 保持开放时间 | 2-20s（可调） |
1.令人印象深刻的入口
在LT-190CD伸缩推拉门运营商最大限度地开口宽度
当提供空间是首要标准，一个令人印象深刻的解决方案。 LT-190CD是
可用于双离合/四叶和单滑动/双扇门。 它也可以适合
到了广泛的不同的门和客户的要求。
2.安全
当一个障碍关向中遇到自动安全自动反转。
安全可以通过使用存在探测光电池进一步提高。 人们或
在门口的物体被检测到，然后将门被阻止关闭直到
它是安全的这样做。
3.紧急
在LT-190CD可以自动打开或关闭车门（使用电池组电量耗尽） -
在电源故障的情况下。

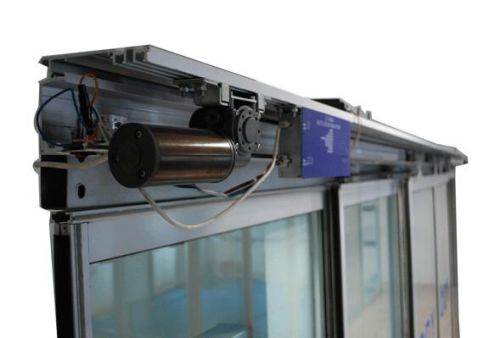

Telescopic Door Operator
1. 6.3 long track, for 4 moving door leaf
2. Automatic door, Auto reverse
3. CE certifacated
Telescopic Door Operator
| Door style | 2 leaf or 4leaf |
| Door width | 650mm~1250mm |
| Door weight.max | 130x2kgs 130kgx4 |
| Power supply | 90VAC~250VAC, 50/60Hz |
| Voltage output | 12V DC, 24V DC |
Brushless Motor | 100W, 24V DC |
| Opening speed and closing speed | 250~550mm/ S |
Creep speed | 20~100mm/ S |
| Manual opening Force | (7N |
| Hold-Close Force | 150N (f (250N |
| Hold-open time | 2-20s (adjustable) |
1. Impressive entrances
The LT-190CD telescopic sliding door operator maximizes the opening width and
provides an impressive solution when space is of prime criteria. LT-190CD is
available for bi-parting/ four leaf and single slide/ two leaf doors. It can also be adapted
to a wide range of different door and customer requirements.
2. Safety
Automatic safety auto reverse when an obstacle is encountered in closing direction.
The safety can be further improved by using Presence detection photocells . People or
objects in the doorway are detected and the door is then prevented from closing until
it is safe to do so.
3. Emergency
The LT-190CD can automatically opens or closes the doors (using battery pack up) –
in the event of a power failure.
