电压：AC110-240V 50 / 60Hz的

LED灯：200W飞利浦MSD铂金5R或YOUN 5R Oaram230W / MSD7R

功率：250W

防护等级：IP20

电子镇流器，开关电源

产品尺寸：523L * 337W * 511H

外箱尺寸：515X440X725

净重：17千克

显示：LCD蓝色显示可以非常直观地设置个性化功能

颜色：一个色轮，基本色14色+白色

半色效果，线性效果，可调速度双向彩虹效果

扩散器：雾化。

模式：17个固定图案+白光高速抖动

棱镜盘：8面旋转棱镜

调整重点：DMX线性调整

调光：两件装调光器

频闪：0.3〜10次/秒。

旋转角度：水平540°，垂直270°

发光角度：镜头组光学系统，电动聚焦，光束角0〜4激光°平行光束相似

控制：国际标准DMX512信号，16个控制通道

其他功能：水平，垂直速度可调，水平，垂直，采用光电耦合系统复位，当偶然发生故障，您可自动检索归位，冷却系统不够好，用光电检测器，灯泡延时过热保护，灯 控制系统的保护，提高灯具的稳定性，通过外置控制台或灯前面板控制窗口，编辑跑灯体CPU存储过程，控制台可以运行，而无需编程或运行程序，并可以保存16个场景。

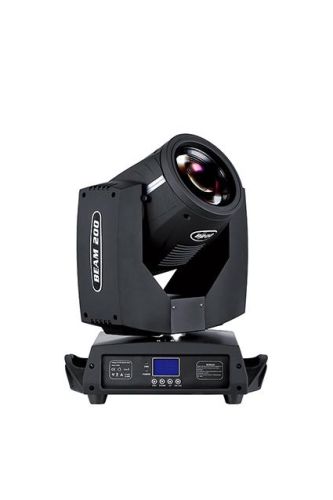

Voltage: AC110-240v 50/60Hz

Led lamp: 200W Philips MSD Platinum 5R or YOUN 5R Oaram230W/ MSD7R

Power: 250W

Protection: IP20

electron ballast and Switching power supply

products size: 523L*337W*511H

carton size: 515X440X725

net weight: 17kg

Display: LCD blue display can be very intuitive to set personalization features

Color: one color wheel , basic color 14 colors + white

Half color effect, linear effect , adjustable speed bi-directional rainbow effect

Diffuser : atomization.

Pattern: 17 fixed gobos + white high-speed jitter

Prism plate: 8 surface rotating prism

Tune focus : DMX linear adjustment

Dimming : Two -piece Dimmer

Strobe : 0.3 to 10 times / sec.

Rotation angle: horizontal 540 °, vertical 270 °

Beam angle: Lens set of optical systems, electric focusing, beam angle 0 ~ 4 ° parallel beam of laser light is similar

Control: International standard DMX512 signal , 16 control channels

Other features: horizontal, vertical speed adjustable , horizontal, vertical, using optical coupling system reset , when the malfunction occurred by chance , you can automatically retrieve homing , cooling system well enough , overheating protection with a photodetector , light bulb delay, for lamp and control system protection, improve lighting stability , through an external console or lamp in the front panel control window , edit stored procedures to run the lamp body CPU, the console can run without programming or run the program, and can be save 16 scenes.
