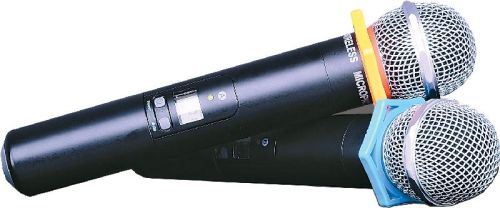

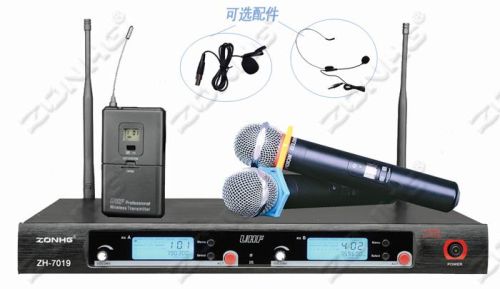

Infrared FM Wireless Handheld Microphone System
红外 FM 无线手持麦克风系统
议价
加入意向96 可调通道、 自动选择。红外线频率可以 assurethatsignal 的传输和接收，无干扰。使用锁相环相位锁定 loopfrequency 合成技术和 CPUcontrol。动态液晶显示，可显示频率和渠道，等等。Usingaudio 压缩扩展技术，带来更广泛的调测和低失真。我们配备了 squelchcircuit 接收器、 交换机上尚无影响。两个 balanceindependent 输出信号和一个非平衡信号输出。该系统具有更多的灵活性和卓越的性能。通过轻触电源开关，独特的电路设计中的行业和断电记忆功能。它可以显示你的清晰的声音，适合中等阶段、 学校、 广场和其他地方。
系统指标 | |
频率范围 | 高的 UHF 频段 800-830 MHz |
频率稳定度 | ±0.001% |
工作温度 | -10 / + 50 摄氏度 |
最大值。频率偏差 | 75 千赫 |
音频响应 | 100 HZ-15 千赫 |
信噪比 | ) 65dB |
调制频率 | 超高频 |
综合的失真 | ≤0.05% |
经营范围 | 半径 100 米 (Noobstacle) |
阈 | ) 100 分贝 |
发射机性能 | |
频率输出功率 | 10 M W 最大 |
谐波的调制 | 没有足够的 40dB |
天线 | 内置 |
电池消耗 | 关于 80MA |
电池 | 1.5 (AA) * 2rechargeable |
电池 | 电池寿命 |
超过 8 小时 | |
接收机的性能 | 接收模式 |
外部频率干扰超零差 | ) 信噪比 |
80 分贝 | 接收灵敏度 (40dBS) |
S / N = 60dB | 音频输出功率电平 |
0-1V 最大 | 电源 |
AC220V±10 %50hz-60hz | 大小 |
420 * 210 * 50 毫米 | 净重 |
1.9 公斤 | 包大小 |
540 * 305 * 130 毫米 | 毛重 |
4 公斤
96 adjustable channel, automatic selection. TheInfrared frequency can assurethatsignal transmit and receive with no distractions. Using PLL phase-locked loopfrequency synthesis technology, and CPUcontrol. Dynamic LCD display, can display frequency and channel, etc. Usingaudio compression extension technology, which brings a wider frequencyresponse, and lower distortion. We equip the receiver with squelchcircuit, there is no impact on the switch. Two balanceindependent output signals and one non-balance signal output. This system has more flexibility and superior performance. Witha light touch power switch, unique circuit design in the industry, and Power-off memory function. It can show you the clear voice, suitable for Medium stage, school, square and other places.
system index | |
Frequency range | UHF high band 800-830MHz |
Frequency stability | ±0.001% |
Operating temperature | -10/ +50 degrees Celsius |
Max. frequency deviation | 75KHz |
Audio response | 100HZ-15KHz |
SNR | ) 65dB |
Modulation frequency | UHF |
integrated distortion | ≤0.05% |
Operating Range | 100m radius (Noobstacle) |
dynamicrange | ) 100dB |
Transmitter performance | |
Frequency output power | 10M W MAX |
Harmonic modulation | Not enough 40dB |
Antenna | built-in |
Battery drain | About 80MA |
Battery | 1.5 (AA) *2rechargeable |
batteries | Battery life |
More than 8 hours | |

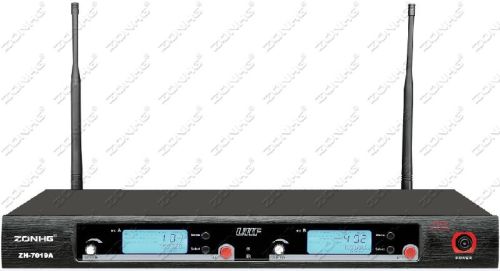

receiver performance | Receive mode |
The external frequency interference ultra-homodyne | ) SNR |
80dB | receive sensitivity (40dBS) |
S/ N=60dB | Audio output power level |
0-1V MAX | power |
AC220V±10%50Hz-60Hz | size |
420*210*50mm | Net weight |
1.9kg | Package size |
540*305*130mm | Gross weight |
4kg
