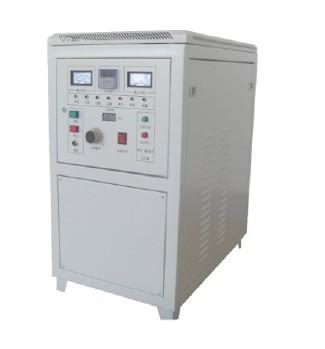

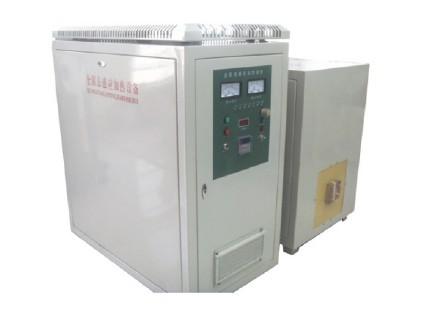

Iron And Copper, Copper And Aluminum Welding | Medium Frequency Induction Equipment, Application For Heating Industry, Such As Welding, Forging, Brazing, Etc. | HONGCHUANG ZP-50\60\80\100\120\160
Iron And Copper, Copper And Aluminum Welding | Medium Frequency Induction Equipment, Application For Heating Industry, Such As Welding, Forging, Brazing, Etc. | HONGCHUANG ZP-50\60\80\100\120\160
铁和铜，铜和铝焊接| 中频感应设备，应用程序对供热行业，如焊接，锻造，钎焊等| 宏创ZP-50 /八十零分之六十零/ 100 /一百六十分之一百二十○
议价
加入意向产品特点：
加热温度高，速度，加热时间短，且由金属材料均匀加热。 物体的表面的氧化少被加热的工件的变形是小的，但在非接触加热
输出功率调节灵活，方便，准确的控制
被加热的工件的温度很容易控制，和产品质量，因此稳定
工件的复杂性可被加热以改变感应加热线圈的形状，也可实现局部加热
由于他们的损失晶体管器件及变频控制技术，整机效率高达95％以上，节能的结果，节水效果显着
该设备体积小，重量轻，操作环境好，噪音和灰尘
灵敏的保护作用，主要器件寿命长，故障率低收集，性能可靠，可连续工作
设备连接到水，电就可以了，操作简单，维护方便
型号/技术参数：
OrdinaryIF：
项目 | ZP-50 | ZP-60 | ZP-80 | ZP-100 | ZP-120 | ZP-160 | ZP-200 |
额定电压 | 380V / 50HZ | ||||||
输入powerKVA | 5~50 | 5~60 | 5~80 | 5~100 | 5~120 | 5~160 | 5~200 |
Entertheoscillation frequencyKHz | 3~19 | ||||||
占空比 | 100% | ||||||
冷却水压力MPa | 0.15~0.3 | 0.2~0.35 | 0.25~0.4 | ||||
水flowL /分钟 | 15~30 | 20~40 | 35~50 | ||||
Features:
The heating temperature is high, the speed, the heating time is short, and uniform heating of a metal material. Less oxidation of the surface of the object to be heated, deformation of the workpiece is small, but the non-contact heating
Output power adjustment is flexible, convenient, accurate control
The temperature of the workpiece is heated is easy to control, and therefore the stability of product quality
Complexity of the workpiece can be heated to change the shape of the induction heating coil can also be realized locally heated
As a result of their loss transistor device and inverter control technology, machine efficiency up to 95%, and energy-saving, water-saving effect is remarkable
The devices are small, light weight, good operating environment, noise and dust
Sensitive protection action, the main device long life, low failure rate collection, reliable performance, can work
Equipment connected to water and electricity can be, simple operation, easy maintenance
Model / technical parameters:
OrdinaryIF:
Project | ZP-50 | ZP-60 | ZP-80 | ZP-100 | ZP-120 | ZP-160 | ZP-200 |
Rated voltage | 380V/ 50Hz | ||||||
Input powerKVA | 5~50 | 5~60 | 5~80 | 5~100 | 5~120 | 5~160 | 5~200 |
Entertheoscillation frequencyKHz | 3~19 | ||||||
Duty cycle | 100% | ||||||
Cooling water pressureMpa | 0.15~0.3 | 0.2~0.35 | 0.25~0.4 | ||||
Water flowL/ min | 15~30 | 20~40 | 35~50 | ||||
