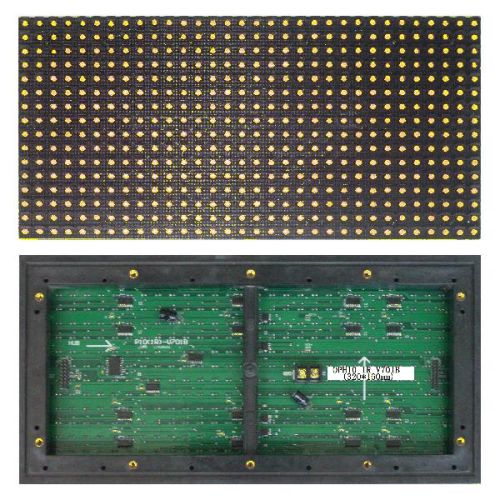

| P10户外蓝色模组 (P10 outdoor blue color module) |
| 项目 (Item) | 单位 (Unit) | 参数 (Parameter) |
| 像素点间距 (Pixel pitch) | mm | 10 |
| 物理密度 (Physical density) | dots/ ㎡ | 10000 |
| 像素构成 (Pixel composing) | 1B |
| LED规格 (Led specification) | DIP546 |
| LED参数 (Led parameter) | Λd: 465nm-470nm |
| LV: 400mcd-500mcd |
| VF: 3.0v-3.4v |
| 驱动方式 (Driving way) | 1/4扫描 (1/4Scan) |
| 水平视角 (Level vision) | ° | 100 |
| 单个模组尺寸 (Size of single module) | mm | 320*160 |
| 单个模组解析度 (Prase of single module) | dot | 32*16 |
| 单个模组重量 (Weight of single module) | Kg | 0.678 |
| 模组数量/ 平方 (Module QTY / ㎡) | pcs | 19.5 |
| 模组寿命 (Module life) | 10万小时 (One hundred thousand hours) |
| 控制方式 (Control mode) | 异步或同步 (Asynchronism or synchronism) |
| 灰度/ 颜色 (Grey scale/ Colors) | 蓝色 (Blue) |
| 白平衡亮度 (White balanced brightness) | ≥1500cd/ ㎡ |
| 亮度调节方式 (Brightness adjusted by) | 软件调节 (control by software) |
| 平均功耗 (Avg.power consumption) | ≤150/ ㎡ |
| 最大功耗 (Max.power consumption) | ≤250/ ㎡ |
| 最佳视距 (Viewing distance) | M | 15m-30m |
| 显示模式 (Display mode) | 1024*768/800*600 |
| 工作电压 (Working voltage) | AC220V±5% |
| 环境温度 (Operating temperature) | (-40℃-+80℃) |
| 像素失控率 (Pixel failure ratio) | (0.0002 |
