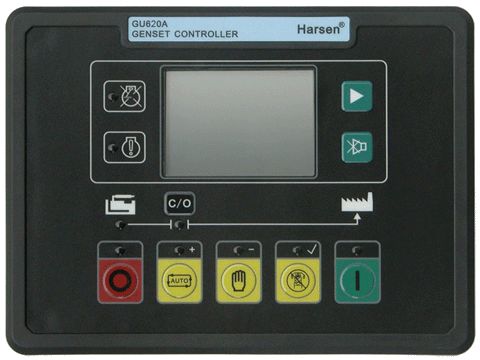

GU620A

自启动控制器是新一代单台发电机，全新的外观和结构，以客户需求为重点，以改善

高性能的控制器，使产品满足用户或专业组装厂发电机发电机组不同类型的自动化控制要求。

1.电压和电流测量的真正价值。

2多国语言菜单选择。

3的128 * 64点阵液晶显示屏。

4.4模拟输入，可用于压力，温度和油位测量，以及内置了多种传感器的选择，可定制。

的数量。

5个可定义辅助控制继电器输出。

6更明确的隔离开关量输入。

选择控制模式的7控制器面板按钮，启动和停止运行保护参数的修改程序，数据显示和操作

相反，LED指示灯运行状态指示所述控制器和发电机的模式。

液晶屏显示所有测量参数和状态。

RS485，RS232或USB通信接口，实现远程监控，通过与PC通讯的8灵活地适应，全面实现遥信，遥控

测量时，遥控功能，操作参数，可以读出并设定控制器。

9自适应GPRS-DTU控制器模块，紧急短信和无线网络监控功能。

10可选的CANbus通信端口中，ECU发动机的参数读取和控制。

11控制器的所有的连接都通过销锁定终端，有线，移动，修理连接，更换新的设备是很容易的，方便的。

12选配超低温功能，选择控制器的功能，可以在-40到70度的环境温度下运行。

GU620A

Self starting controller is a new generation of single generator, the appearance and structure of the new, take the customer demand as the focus, to improve

High performance controller, so that products meet user or professional assembly plant generator for generating unit of different types of automatic control requirements.

The 1 voltage and current by measuring the true value.

2 multi language menu selection.

3 the 128*64 dot matrix LCD display.

4.4 analog input, can be used for pressure, temperature and oil level measurement, and built a variety of sensor selection, can be customized.

The number of.

5 more can define auxiliary control relay output.

6 more defined isolation switch input.

The 7 controller panel buttons for selecting the control mode, start and stop running the program, data display and operation of protection parameters modification

Instead, LED indicator for running state indicating the mode of the controller and the generator.

LCD display all measurement parameters and state.

8 flexible adaptation of RS485, RS232 or USB communication interface, remote monitoring, through communication with the PC, fully realize the remote signal, remote

Measurement, the remote control function, operation parameters and can be read out and set the controller.

9 adaptive GPRS-DTU controller module, emergency SMS and wireless network monitoring function.

10 optional CANbus communication port, the parameters of ECU engine to read and control.

All the connection of the 11 controllers are connected through pin locked terminal, wired, mobile, repair, replacement of the equipment is very easy and convenient.

12 optional ultra low temperature function, select the function of the controller can be run in -40 to 70 degree ambient temperature.
