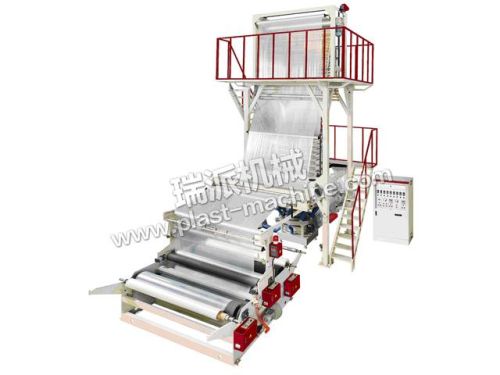

AGRICULTURE FILM BLOWN EXTRUDER | Plastic Extruder
农业吹膜挤出机| 塑料挤出机
议价
加入意向用途及特点
这是适合吞云吐雾高密度和低密度聚乙烯薄膜行业，农业为导向的地膜。 气缸与螺杆梗挤出机均采用优质合金钢具有最佳的硬度和氮化处理和精密加工后的耐腐蚀性能强的。 它是双滚动，并自动帐户米。
主要技术参数：
| 模型 | SD / L-80B | SD / L-90B | SD / L-100B | SD / L-120B |
| 合适的材料 | LDPE LLDPE | |||
| 薄膜宽度（mm） | 800-1500 | 1000-2000 | 1500-2500 | 1800-3300 |
| 薄膜厚度（mm） | 0.015-0.15 | 0.015-0.15 | 0.015-0.15 | 0.015-0.15 |
| MAX.EXTRUSION输出 | 150千克/小时 | 280千克/小时 | 350千克/小时 | 450千克/小时 |
| 挤出机 | ||||
| 螺杆直径（mm） | Φ80 | Φ90 | Φ100 | Φ120 |
| 螺杆长径比L / D长度 | 30: 1 | |||
| 螺钉材料 | SACM-38分之645CRMOALA | |||
| 筒料 | SACM-38分之645CRMOALA | |||
| 汽缸冷却 | 550WX3 | 550wX3 | 750wX4 | 750wX4 |
| 驱动电机（KW） | 37 | 55 | 75 | 90 |
| 温度控制 | 4 | 4 | 5 | 5 |
| 平均功率-使用（KW） | 45 | 65 | 90 | 110 |
| 型模的 | ||||
| DIE尺寸（mm） | 350/400 | 400/500 | 500/600 | 500/600 |
| 温度控制 | 3 | 4 | 4 | 5 |
| 风环 | 1 | |||
| 鼓风机（KW） | 3 | 5.5 | 7.5 | 11 |
| TAKE-UPUNIT | ||||
| 压紧辊（DIA。宽度）毫米 | Φ165X1600 | Φ190X2200 | ¦Φ190X2700 | Φ220X3500 |
| TAKE-UP速度（m /分钟） | 5-60 | 5-60 | 5-60 | 5-60 |
| 收线电机功率（kw） | 1.5 | 1.5 | 2.2 | 2.2 |
| 卷绕单元 | ||||
| 类型 | 表面摩擦式 | |||
| 收卷电机（KW） | 1.5 | 1.5 | 2.2 | 2.2 |
| 卷绕速度（米/分钟） | 5-60 | 5-60 | 5-60 | 5-60 |
| 盖尺寸（M） | 6.8X2.6X6.5 | 7.5X3.2X7.5 | 9.0X4.2X10 | 11X5.0X11.5 |
Uses and Features
It is fit to puff high density and low density polyethylene industry film, farm-oriented mulch film. The cylinder and the screw stems of the extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision finishing. It is double rolling and account the meter automatically.
Main Technical Variables
| MODEL | SD/ L-80B | SD/ L-90B | SD/ L-100B | SD/ L-120B |
| SUITABLE MATERIAL | LDPE LLDPE | |||
| FILM WIDTH (mm) | 800-1500 | 1000-2000 | 1500-2500 | 1800-3300 |
| FILM THICKNESS (mm) | 0.015-0.15 | 0.015-0.15 | 0.015-0.15 | 0.015-0.15 |
| MAX.EXTRUSION OUTPUT | 150kg/ hr | 280kg/ hr | 350kg/ hr | 450kg/ hr |
| EXTRUDER | ||||
| SCREW DIAMETER (mm) | Φ80 | Φ90 | Φ100 | Φ120 |
| SCREW L/ D LENGTH | 30: 1 | |||
| SCREW MATERIAL | SACM-645/38 CRMOALA | |||
| CYLINDER MATERIAL | SACM-645/38 CRMOALA | |||
| CYLINDER COOLING | 550WX3 | 550wX3 | 750wX4 | 750wX4 |
| DRIVING MOTOR (Kw) | 37 | 55 | 75 | 90 |
| TEMPERATURE CONTROL | 4 | 4 | 5 | 5 |
| AVERAGE POWER-CONSUME (Kw) | 45 | 65 | 90 | 110 |
| TYPE OF DIE | ||||
| DIE SIZE (mm) | 350/400 | 400/500 | 500/600 | 500/600 |
| TEMPERATURE CONTROL | 3 | 4 | 4 | 5 |
| AIR RING | 1 | |||
| AIR BLOWER (Kw) | 3 | 5.5 | 7.5 | 11 |
| TAKE-UPUNIT | ||||
| PINCH ROLLER (DIA. WIDTH) mm | Φ165X1600 | Φ190X2200 | ¦Φ190X2700 | Φ220X3500 |
| TAKE-UP SPEED (m/ min) | 5-60 | 5-60 | 5-60 | 5-60 |
| TAKE-UP MOTOR (Kw) | 1.5 | 1.5 | 2.2 | 2.2 |
| WINDING UNIT | ||||
| TYPE | SURFACE FRICTION TYPE | |||
| WINDING MOTOR (Kw) | 1.5 | 1.5 | 2.2 | 2.2 |
| WINDING SPEED (m/ min) | 5-60 | 5-60 | 5-60 | 5-60 |
| COVER DIMENSION (m) | 6.8X2.6X6.5 | 7.5X3.2X7.5 | 9.0X4.2X10 | 11X5.0X11.5 |
