车联网模块

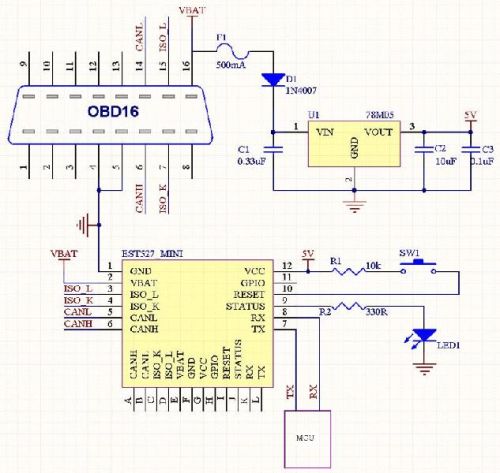

EST527_MINI OBD模块是一辆车符合级别的网络协议标准模块OBDII数据分析产品，支持ISO9141-2，ISO14230（KWP），ISO15765（CANBUS）和其他物理层协议，通过OBD-16标准接口与现有的有大部分 汽车的ECU诊断通信;

传感器值汽车电子控制系统的EST527_MINI模块将数据输出UART格式的产品模块通过EST527_MINI汽车，车联网产品很容易二次开发的快速连接的用户;

EST527_MINI终端还支持标准OBDII汽车诊断功能，支持DTC诊断请求，故障码输出支持，故障码清除。

OBDII接口支持标准

协议涵盖了所有主要的汽车

双重的MCU，处理速度，这是五倍ELM327小号

电脑没有进行任何操作，所有的数据数值返回

准确里程算法精度99.5％

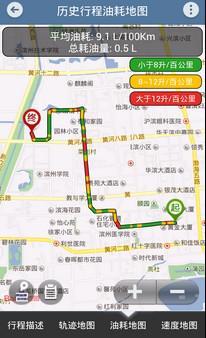

支持瞬时油耗，平均油耗和燃油消耗数据

支持车载诊断故障代码，两条指令完成读取和清除故障码

终端的设计，高集成度

汽车抗干扰设计监管水平

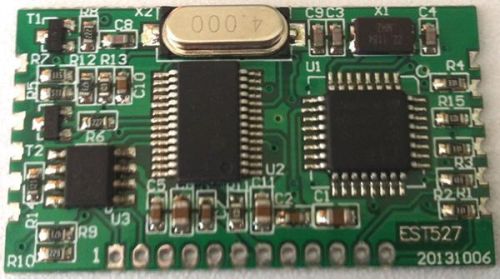

邮票孔和引脚设计，以满足所有应用双接口

AT命令集是容易使用

大大提高二次开发的效率，缩短开发周期

请参阅手册：EST527_MINI OBDII终端数据手册V1.0

Car networking module

EST527_MINI OBD module is a car car compliance level networking protocol standard modules OBDII data analysis products, support ISO9141-2, ISO14230 (KWP) , ISO15765 (CANBUS) and other physical layer protocol , through OBD-16 standard interface with existing there are most of the car's ECU for diagnostic communications ;

EST527_MINI module of the sensor values automotive electronic control system converts the data output UART format , users of the product modules with fast connections via EST527_MINI cars, car networking products easy secondary development ;

EST527_MINI terminal also supports standard OBDII automotive diagnostic capabilities , support for DTC diagnostic requests , fault code output , fault codes cleared.

OBDII interface supports standard

Agreement covering all major car

Dual MCU, processing speed , which is five times the ELM327 s

PC without any operation , all data numerically return

Accurate mileage algorithm accuracy 99.5%

Support instantaneous fuel consumption , average fuel consumption and fuel consumption data

Support vehicle diagnostic trouble codes , two instructions to complete the read and clear fault codes

Terminal design, high level of integration

Car jamming design regulatory level

Stamp hole and pin dual interface designed to meet all applications

AT command set is easy to use

Greatly enhance the efficiency of the secondary development , shorten the development cycle

Please refer to the manual : EST527_MINI OBDII Terminal Data Sheet V1.0
